User Manual version 1.0
GPS RADIO BUOY SYSTEM
PKP-27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PKP-27 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Koden PKP-27

Summary of Contents for Koden PKP-27

  • Page 1 User Manual version 1.0 GPS RADIO BUOY SYSTEM PKP-27...
  • Page 2 VERSIÓN MADE BY: cHANGES MADE : DATE D/M/Y Jose A. Casais...
  • Page 3 1. Package Contents 2. Basic concepts of the system 3. Mounting the counterweight bar on an inflatable float 4. Using the PKP-27 R Receiver 5. PKP-27 R color cable distribution 6. Charging the buoy batteries 7. Mounting the buoy on the counterweight bar...

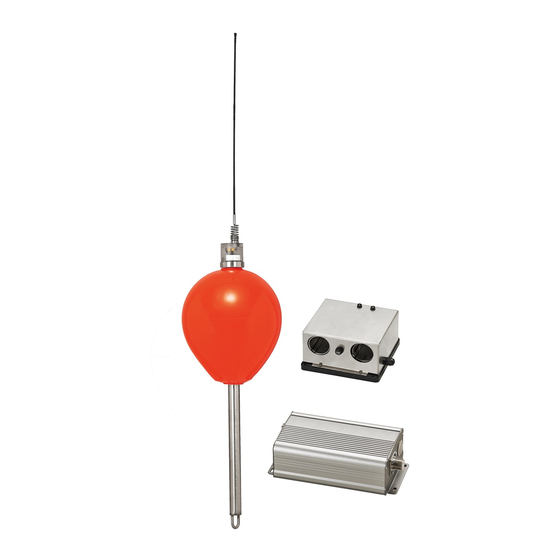

  • Page 4 1.- Package contains The supplied parts for the basic PickPoint-27 system contains : PKP-27 T-00 GPS/Glonass buoy with Li Batteries (Buoy antenna included) PKP-27 R-00 receiver unit with NMEA output and power cable Counterweight bar buoy holder stainless steel 316 (3Kg) for inflatable float*.(*Not Included) PKP-27 C-00 Buoy batterie charger ( 2 buoys) 1.1.-Optional parts (Not Included)
  • Page 5 4.- Use of the PKP-27- R00 Receiver Plotter Unit RX - RX + 4800 Baud TX + $RATLL, !AIVDM TX - This is White Cable 24/12 Vdc Galvanic isolated 5.-Cable distribution by color: = POWER POSITIVE 9 - 30 Vdc+...
  • Page 6 6.- Charging the Buoy Batteries The GPS Buoy can be placed on the charger at any time after use. Estimated charging time is around 8 hours (with battery level at 0%) and when fully charged the buoy working time will be approximatly 5 days (Transmitting time every 10 minutes). To fit the buoy on the charger this must be inserted on the charging hole then just push in and turn clockwise until the two tops inside the charging hole are inserted on to the buoy bottom rails (Picture 4).
  • Page 7 7.- Mount the buoy on the counterweight bar To use the buoy you must place it on the provided counterweight bar that previously was installed on the inflatable float. Insert the buoy on the counterweight bar and screw it clockwise until is tight and the leds start blinking.
  • Page 8 Equipos Navales Industriales s.a. Calle Meridiano 22, Torrejon de Ardoz Madrid Tel: +34 917 254 400 Fax: +34 917 258 044...
