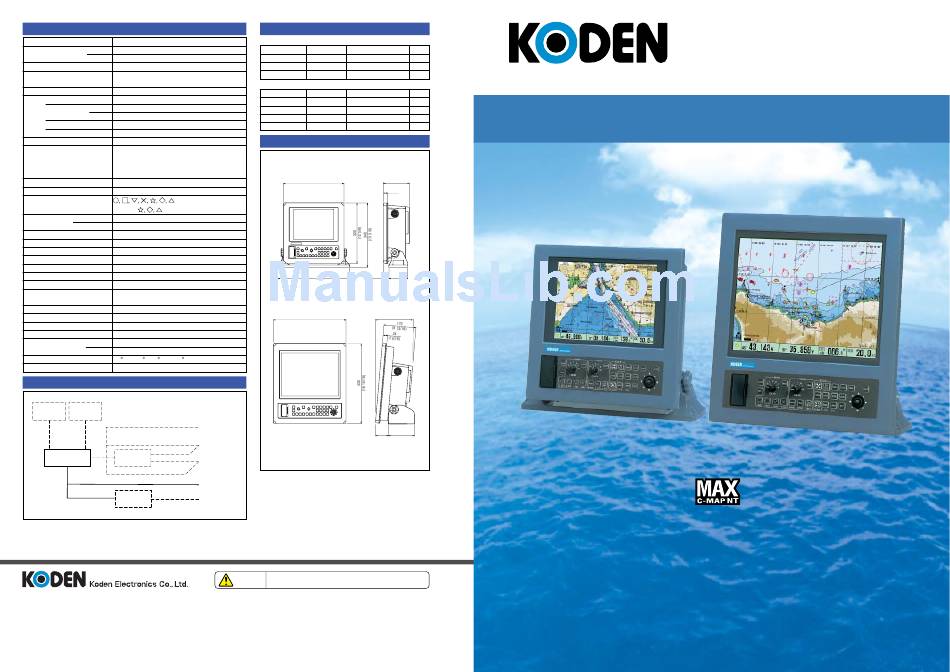

Koden GTD-110 User Manual

SPECIFICATIONS

Type name GTD-110/150
Display GTD-110 10.4 inch High Brightness TFT Color LCD
GTD-150 15 inch High Brightness TFT Color LCD
Map mode Mercator projection
Display mode North-up, East-up, South-up, West-up, Course-up
(Waypoint), Head-up, Centered North-up
Track zooming range 0.01 to 3600 nm (or 0.02 to 6600 km)
Display Effective map creation area Below latitude 75 degree
Plotting interval Time 1, 2, 5, 10, 20, 30, 60, 120, 300, 600 sec
Distance 0.01, 0.02, 0.05, 0.1, 0.2, 0.5, 1.0, 2.0, 5.0, 10.0 nm (km)
No. of plots 2000, 4000, 7000 (maximum plot) x 7 blocks
Track color 7 colors
Position data display Lat/lon, Loran-C LOP
Navigation data display Own ship's position, Own ship's course, Own ship's speed,
Waypoint position, Waypoint bearing, Waypoint distance,
POB position, POB bearing, POB distance, Cursor posi-
tion, Cursor bearing, Cursor distance
Position registration 8300
Mark color 7 colors
Mark shape
(The marks are only useable in Mark Editing mode)
Mapping Mapping nodes 500 points x 7 blocks
Display color 7 colors
Other ships plot 10 ID x 1000 points
Route memory 50 routes x 50 waypoints
Chart C-Map NT / NT+ / NT MAX
Data card C-Map User C-Card
Alarm Arrival, POB, Cross track error, Depth, Grounding
Positional correction By cursor or by lat/long data
Magnetic compass correction Manual, Auto
Input data format NMEA 0183 Ver 2.0/1.5 (GGA, GLL, VTG, ZDA, RMC,
MSS, MTW, TTM)
Output data format NMEA 0183 Ver 2.0 (APB, GGA, GLL, VTG, XTE, ZDA, GTD)
Memory backup By Lithium battery (for SRAM backup) and Non-volatile ROM
Other functions Loran-C LOP, Ring markers
Power supply voltage 10.8 to 31.2 VDC
Power consumption: GTD-110 Less than 20 W (at 24 VDC)
GTD-150 Less than 40 W (at 24 VDC)
Operating temperature -15 C to +55 C (+5 F to +131 F)
Waterproof Resistive against driven water, in compliance with IPX5

CONNECTIONS

Solid lines: Standard devices and connections.
Dashed lines: Optional devices and connections.
GPS sensor DGPS sensor
GPS-20A KBG-2
IN/OUT Marine radar
(with ATA built-in)
IN/OUT
Color fish finder
OUT
Junction box
Display unit
OUT
JB-10 Marine radar
CW-253-2M
10.8 to 31.2 VDC
Power rectifier VV-2D8-3M 100/115 VAC
PS-003A 200/230 VAC
Tamagawa Office:
2-13-24 Tamagawa, Ota-ku, Tokyo, 146-0095 Japan
Tel: +81-3-3756-6501 Fax: +81-3-3756-6509
Uenohara Office:
5278 Uenohara, Uenohara-shi, Yamanashi, 409-0112 Japan
Tel: +81-554-20-5860 Fax: +81-554-20-5875
overseas@koden-electronics.co.jp
www.koden-electronics.co.jp

EQUIPMENT LIST

Standard equipment
Display GTD-110/GTD-150 With hard cover
DC power cable CW-253-2M 5P connector fitted one end
Fuse F-7161 10 A
Operation manual 93151542
Options
GPS sensor GPS-20A For GPS signal reception
DGPS sensor KBG-2 For GPS signal reception
Junction box JB-10 1-IN/3-OUT
Power rectifier PS-003A With two 5 A fuses
AC power cable VV-2D8-3M Flying leads on each end

DIMENSIONS AND WEIGHT

Display unit
GTD-110
320 138
(12 5/8) (5 7/16)
24
(15/16)
380 29.5
(14 15/16) (1 3/16) (3 15/16)
Weight: 6.5 kg (14.5 lbs)
GTD-150
390 224.5 (8 7/8)
(15 3/8)
67
(2 5/8)
Weight: 10 kg (22 lbs)
• Design and specifications are subject to change without notice.
Safety To ensure proper and safe use of the equipment, please carefully
precaution read and follow the instructions in the Operation Manual.
For details, please contact:
1
1
1
1
0.6 kg
1.8 kg
0.42 kg
2.8 kg
3 m
100
150
(5 7/8)
Unit: mm (inch)
Wherever you go, you can rely on it!
08.08 Printed in Japan
10.4-inch/15-inch Color LCD
GTD-110/150
GTD-110
Chart Plotter
GTD-150
