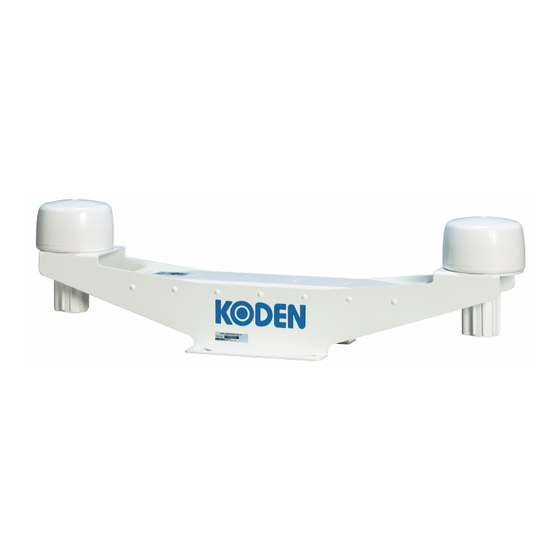

Koden KGC-1 Quick Start Manual

Connection of ECI 1 to GPS compass KGC-1

This manual is for connection with the GPS compass KGC-1.
・ Positional data cannot be displayed. ECI 1 displays only the heading data
in this application.
・ Connection with KGC-1 doesn't give full functions of ECI 1.
・ As the cable to connect with KGC-1 isn't attached, it is necessary to order
a connecting cable CW-376-5M.
Please refer to the separate simplified or CD manual for operation.

Connecting the unit

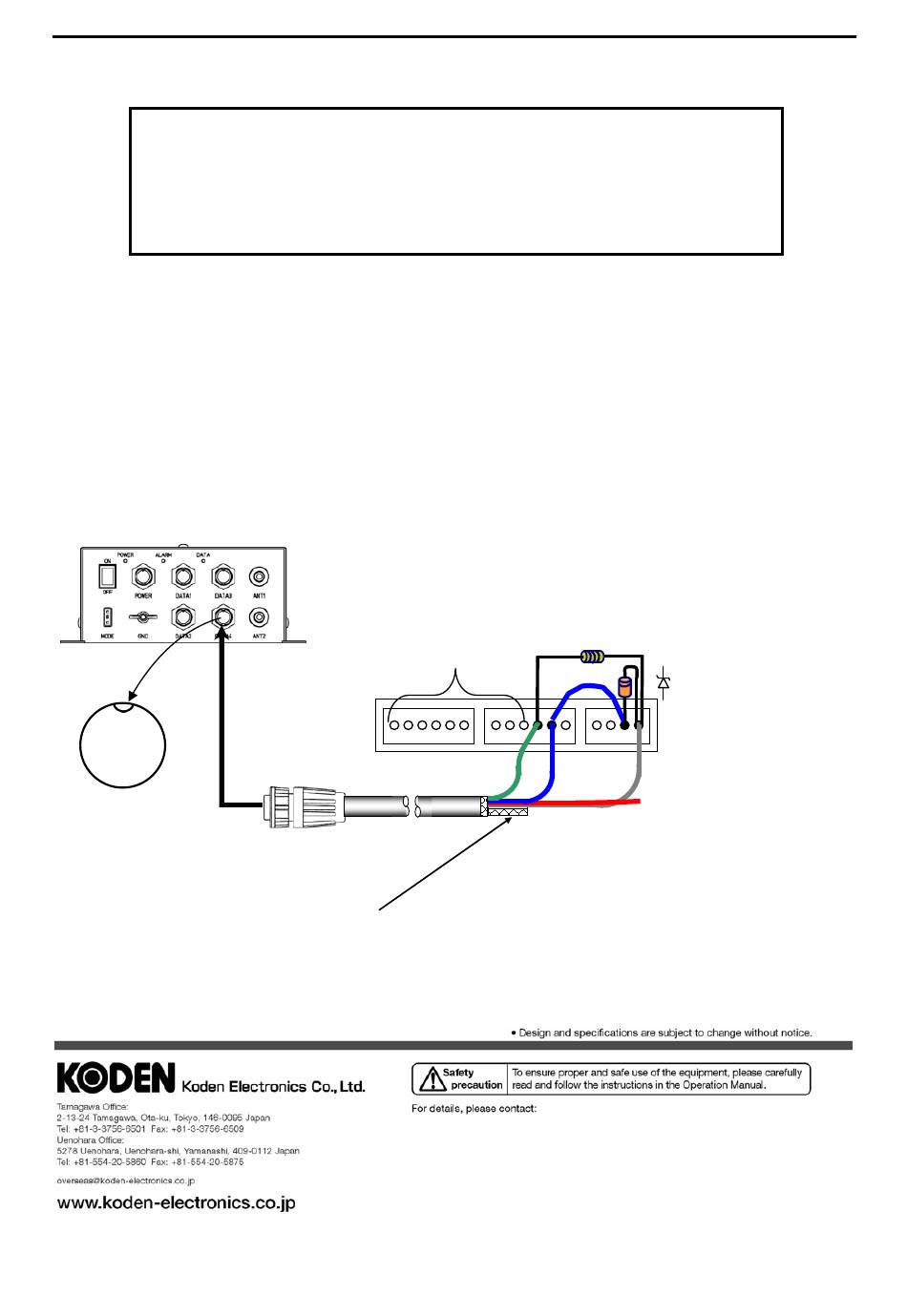

Connect the cable (CW-376-5M) and the attached resistor and diode from DATA4 connector of
KGC-1 processor unit to ECI 1 as shown in the following drawing.
Please refer to an attached sheet for the details of the wiring
KGC-1 processor unit
① ⑤
⑥
② ④
③
DATA4
① Ground (GND)
② Serial output + (TX+)
③ Serial output – (TX-)
④ Serial input + (RX+)
⑤ Serial input - (RX-)
⑥ + 12 V
No connection
To DATA4
of KGC-1
processor unit
CW-376-5M
Wires not used including shielding
sheath must be insulated to avoid
electrical damage.
CAUTION
ECI 1
Rear view
Resistor ERD25TJ102 (1 KΩ)
Green
Blue
Diode HZ5-C1
White
Red
(not use)
ECI1.OM.E 0093116902-01
