CLEARANCES TO COMBUSTIBLES

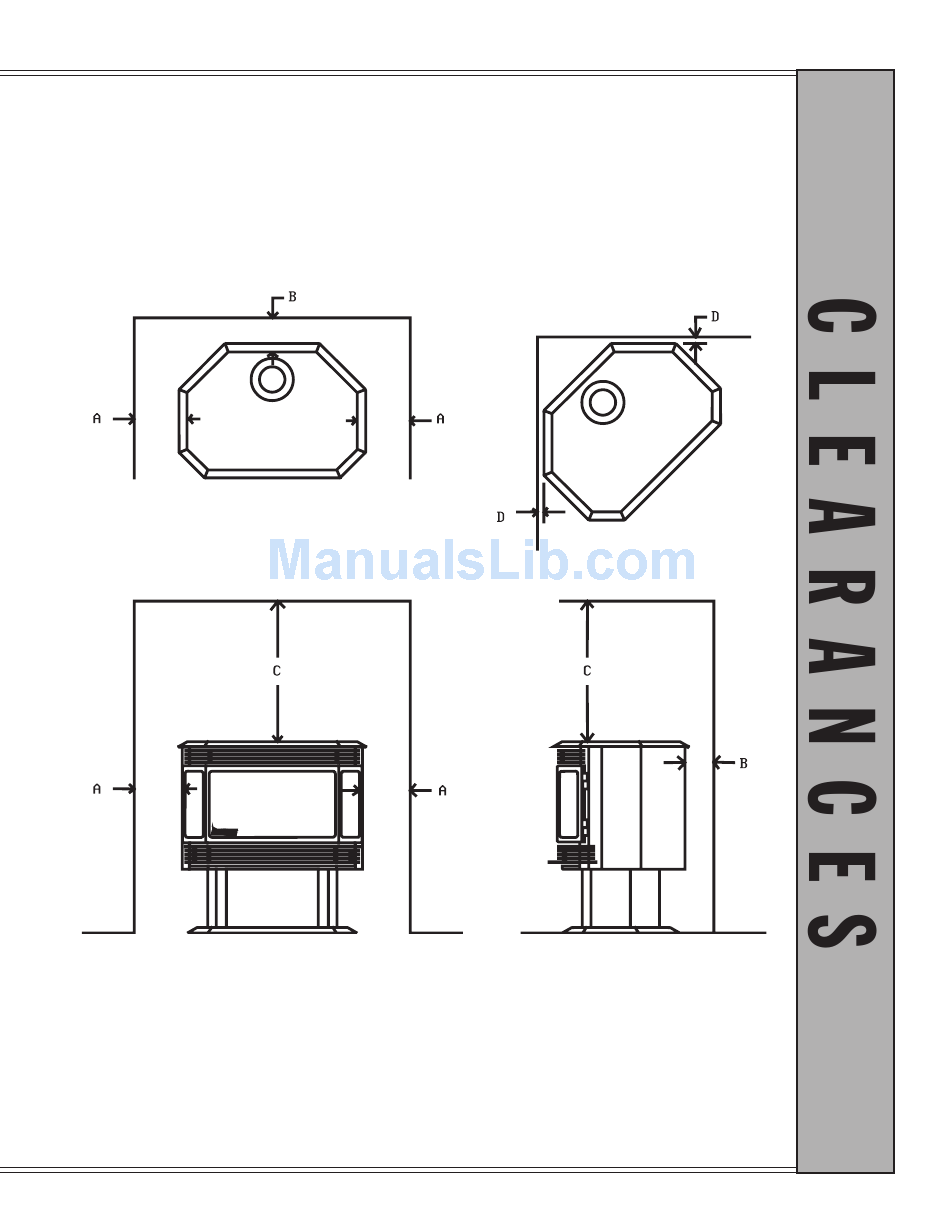

Minimum clearances to combustible materials from stove body:
A
B
C
D
The floor area beneath the stove must be stable, level and strong enough to support the stove
without a tipping hazard. Wood flooring, ceramic tile, brick hearths, or high pressure laminate
flooring applied directly over the sub-flooring material meet this requirement. If the appliance
is installed over carpet or combustible tile (vinyl tile) , a metal or wood panel extending the full
width and depth of the appliance must be installed.
January 2000
Grand Bay 40 Gas Freestanding
Side wall to combustible
Back wall to combustible
Top of unit
Corner clearance

HEARTH REQUIREMENTS

7" (178mm)
4" (102mm)
22" (560mm)
1" (25mm)
Page 9
