INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.

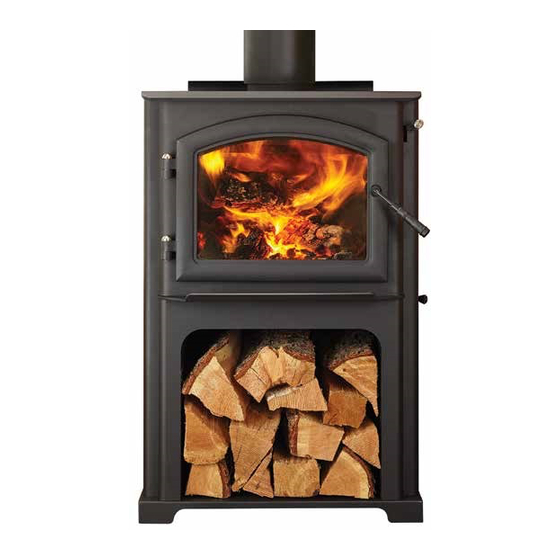

DISCOVERY III WOOD APPLIANCE
Automatic Combustion Control (ACC)
Model: DISCOVERY-III
WARNING
Fire Risk.
For use with solid wood fuel only.
Other fuels may overfire and generate
poisonous gases (i.e. carbon monoxide).
Installation and service of this
appliance should be performed by
quali ed personnel. Hearth & Home
Technologies recommends HHT
Factory Trained or NFI certified
professionals.
1
Installation Manual
Installation & Appliance Set-Up
NOTICE: DO NOT DISCARD THIS MANUAL
Tested and
O-T L
Portland
Listed by
Oregon USA
C
US
OMNI-Test Laboratories, Inc.
If the information in these instruc-
tions is not followed exactly, a
fire could result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Do not overfire - If appliance or chimney
connector glows, you are overfiring. Overfir-
ing will void your warranty.
• Comply with all minimum clearances to
combustibles as specified. Failure to
comply may cause house fire.
Hot glass will cause burns.
Do not touch glass until it is cooled
NEVER allow children to touch glass
Keep children away
CAREFULLY SUPERVISE children in same room as
appliance.
Alert children and adults to hazards of high temperatures
High temperatures may ignite clothing or other
flammable materials.
Keep clothing, furniture, draperies and other flammable
materials away.
To obtain a French translation of this manual, please contact
your dealer or visit www.quadrafire.com
Pour obtenir une traduction française de ce manuel, s'il vous
plaît contacter votre revendeur ou visitez www.quadrafire.com
7037-158C
WARNING
WARNING
HOT SURFACES!
Glass and other surfaces are hot
during operation AND cool down.
NOTE
August 01, 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DISCOVERY-III and is the answer not in the manual?

Questions and answers

Summary of Contents for Quadra-Fire DISCOVERY-III

  • Page 1 Automatic Combustion Control (ACC) damage, personal injury, or death. Model: DISCOVERY-III • Do not store or use gasoline or other flam- mable vapors and liquids in the vicinity of this or any other appliance.
  • Page 2: Table Of Contents

    C. Clearances to Combustibles ........9 NOTE: Hearth & Home Technologies, manufacturer of this appliance, reserves the right to alter its products, their specifications and/or price without notice. Quadra-Fire is a registered trademark of Hearth & Home Technologies. 7037-158C August 01, 2016...
  • Page 3: Important Safety Information

    UL1482 and ULC S627-00 and (UM) 84-HUD, Mobile Home Approved. Improper installation, adjustment, alteration, service or The Quadra-Fire Discovery III Wood Appliance meets the maintenance can cause injury or property damage. U.S. Environmental Protection Agency’s crib wood emission For assistance or additional information, consult a qualified limits for wood appliances sold after May 15, 2015.
  • Page 4: Getting Started

    Discovery III Install Guide Getting Started A. Design and Installation Considerations B. Fire Safety Consideration must be given to: To provide reasonable fire safety, the following should be given serious consideration: • Safety • Convenience Install at least one smoke detector on each floor of •...
  • Page 5: Negative Pressure

    Discovery III C. Negative Pressure WARNING WARNING Fire Risk. Hearth & Home Technologies disclaims any Asphyxiation Risk. responsibility for, and the warranty will be voided by, the following actions: • Negative pressure can cause spillage of com- bustion fumes, soot and carbon monoxide. •...
  • Page 6: Install Checklist

    Discovery III F. Install Checklist ATTENTION INSTALLER: Follow this Standard Work Checklist This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this installation manual. Customer: __________________________________________________________________________ Date Installed: __________________________________________________________________________ Lot/Address: __________________________________________________________________________ Location of Appliance: ______________________________________________________________...
  • Page 7: Dimensions And Clearances

    Discovery III Dimensions and Clearances A. Appliance Dimensions NOTE: Flue Collar size is 6 inch (152mm) diameter (ID) 26-1/2 in. [673] 13-1/4 [337] 11 in. 6-3/4 15 [383] [278] [170] 38-3/8 [975] 13-1/4 [337] 17-7/8 [454] 27-1/4 [692] Figure 7.2 Top View Figure 7.1 Front View 28-5/8 [728] 26-5/16 [668]...
  • Page 8: Hearth Protection Requirements

    Discovery III In Canada, similar floor protection must be provided 18 inches B. Hearth Protection Requirements (457mm) in front and 8 inches (203mm) from the sides and rear of the appliance. Figure 8.2 *See exception. FLOOR PROTECTION: Floor protector must be non-combus- tible material, extending beneath appliance and to the front, *EXCEPTION: Non-combustible floor protections must sides and rear as indicated.
  • Page 9: Clearances To Combustibles

    Discovery III C. Clearances to Combustibles MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS in inches (Millimeters) Note: A, C, and F Dimensions are to the center of the flue collar DISCOVERY-III INSTALLATION: FULL VERTICAL SINGLE WALL PIPE 18-1/2 (470) 11-3/4 (298) 27-1/2 (699)
  • Page 10: Chimney Systems

    Discovery III Chimney Systems A. Locating Your Appliance & Chimney • Consider the appliance location in order to avoid floor and ceiling attic joists and rafters. Location of the appliance and chimney will affect perfor- mance. As shown in Figure 10.1 the chimney should: •...
  • Page 11: Chimney Termination Requirements

    Discovery III B. Chimney Termination Requirements NOTICE: Locating the appliance in a basement or in a location of considerable air movement can cause intermittent Follow manufacturer’s instructions for clearance, securing smoke spillage from appliance. Do not locate appliance near flashing and terminating the chimney. Fig. 11.1 & 11.2 •...
  • Page 12: Chimney Height/Rise And Run

    Discovery III D. Chimney Height / Rise and Run Chimney: This product was designed for and tested on a 6 inch (152mm) The chimney can be new or existing, masonry or prefabricated chimney, 14 to 16 feet (420-480cm) high, (includes appliance and must meet the following minimum requirements and as height) measured from the base of the appliance.
  • Page 13 Discovery III Listed Termination Cap ney connector. • Top of wall opening is a minimum of 13-1/2 inches Storm Collar (343mm) from ceiling or 4-1/2 inches (114mm) below minimum clearance specified by chimney connector Flashing manufacturer. NFPA 211 minimum vertical clearance of 18 inches (457mm) from chimney connector and ceiling or minimum recommended by chimney connector manu- facturer.
  • Page 14: Installing Chimney Components

    Maintain minimum clearances to combustibles Figure 14.2 H. Proper Draft To be sure that your Quadra-Fire insert burns properly, the chimney draft (static pressure) should be approximately -0.10 inches water column (W.C.) during a high burn and -0.04 inches W.C. during a low burn, measured 6 inches (152mm) above the top of the insert after one hour of operation at each burn setting.
  • Page 15: Appliance Set-Up

    Discovery III Appliance Set-Up A. Outside Air Kit Installation WARNING A source of air (oxygen) is necessary in order for combus- Fire Risk. Asphyxiation Risk. tion to take place. Whatever combustion air is consumed by the fire must be replaced. Air is replaced via air leakage Do not draw outside combustion air from: around windows and under doors.
  • Page 16: Decorative Panel Removal & Installation

    Discovery III B. Decorative Panel Removal & Installation Your appliance ships with two different side options, one is a solid side panel (Figure 16.1) and tile side panel (Figure 16.2). There Securing are two of each and no left or right side, these can be changed Clip at anytime.
  • Page 17: Door Handle Assembly

    Discovery III D. Blower (Optional) C. Door Handle Assembly Tools Required: #2 Phillips head screwdriver 1. Install fiber handle to door handle rod. 1. Locate bolts supplied with the blower. 2. Align holes in mounting flange of blower with bolt holes in appliance.
  • Page 18: Mobile Home Installation

    Discovery III Approved for USA Installation only! Mobile Home Installation You must use a Quadra-Fire Outside Air Kit Part CAUTION OAK-ACC; which is availble from you dealer, for installation in a mobile home. THE STRUCTURAL INTEGRITY OF THE MOBILE HOME FLOOR, WALL AND CEILING/ROOF MUST BE MAINTAINED 1.
  • Page 19: Accessory List

    Discovery III Accessory List DISCOVERY-III Service Parts Beginning Manufacturing Date: July 2016 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or Stocked Hearth and Home Technologies does not sell directly to consumers distributor.
  • Page 20: Contact Information

    Hearth & Home Technologies 1445 North Highway Colville, WA 99114 Division of HNI INDUSTRIES Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer log onto www.quadrafire.com CAUTION DO NOT DISCARD THIS MANUAL...
