GB
88

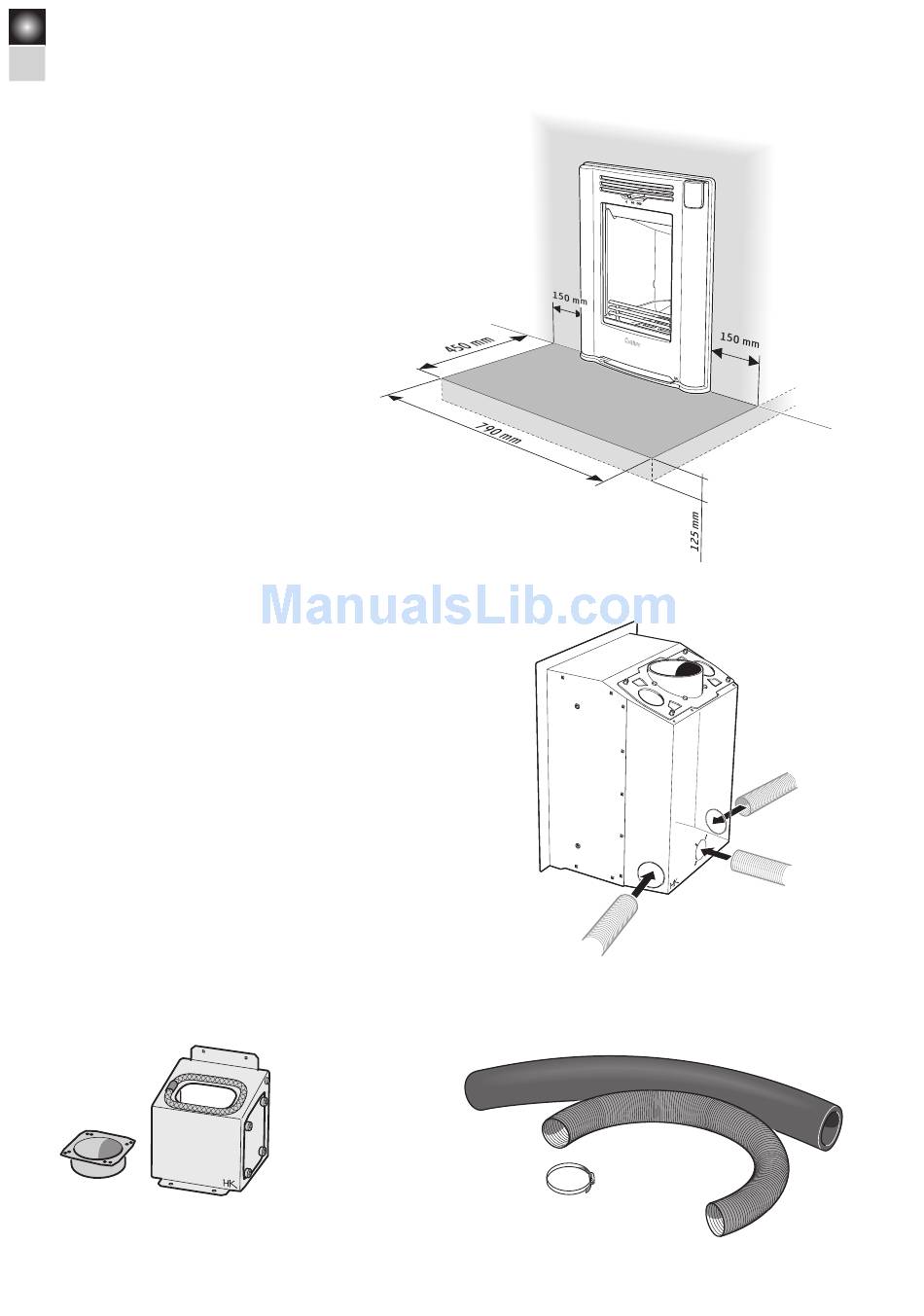

INSTALLATION / COmBUSTION AIR
Installation in Builders opening
Hearth dimensions
The appliance must stand on a constructional hearth which meet
the building regulations and has minimum dimension as shown in
the diagram beside. Always check that the building has enough
bearing capacity for the heart, stove and chimney. The stove can
be loaded with maximum 100 kg of chimney.
Supply of combustion air
When a stove is installed in a room, the demand for air supply to
the room increases. Air can be provided indirectly via a vent in the
outer wall or via a duct from the outside that is connected to the
stove. The amount of air needed for combustion is approximatly
20m³/h.
If the insert will be used with supply air connector (accessory)
and outside air-supply kit (accessory) then prepare the convection
box by open the lid where the air supply hose will enter, from side
or back. Make the supply air connector installation as the flue pipe
is connected to the convection box.
Supply air connector (accessory)
Outside air-supply kit (accessory)
