TX POWER AMPLIFIERS

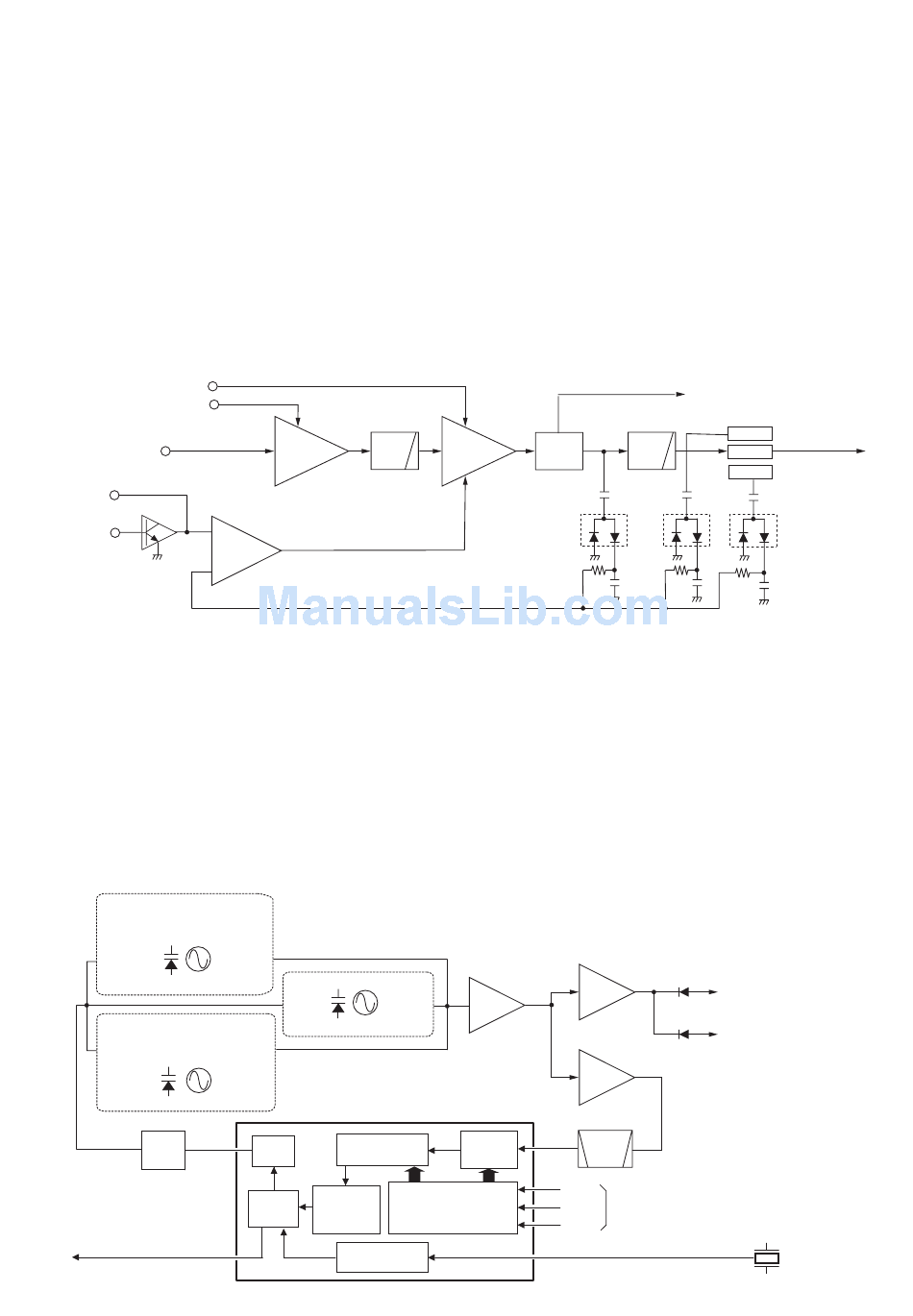

The transmit signal from the TX VCO is amplified to the
transmit output level by the transmit amplifi ers.
The TX VCO output signal from buffer amplifier (Q29) is
applied to the YGR amplifiers (Q30, Q53) via the TX/RX
switch (D24). The amplified TX signal is passed through the
LPF (L29, L30, C269−C271, C290), and applied to the RF
power module (IC15, pin 1) and power-amplified to obtain
50 W/25 W (max.) of TX output power.
The power-amplified TX signal is passed through the
LPF as a harmonic filter (L33, C305−C308), the antenna
switching circuit (D38, D39) and LPF (L38, L39, L45, C343,
C345, C349, C350, C356, C357).
The TX signal is also gone through the power detector (D47,
D49, D51) and LPF (L40, C369, C370) before being applied
to the antenna connector.
• APC CIRCUIT
HV
T8V
Transmit signal
from T/RX switch (D24)
"T2"
Q53
+
"TMUT"
–

5-3 FREQUENCY SYNTHESIZER CIRCUITS

VCO
VCO is a oscillator whose oscillating frequency is controlled
by adding voltage (lock voltage).
• RX VCO1 (Q18, D10, D13)
RX VCO1 generates the 1st LO signal for receiving 485 MHz
and below signals.
• RX VCO2 (Q17, D8, D9)
RX VCO2 generates the 1st LO signal for receiving 485 MHz
and above signals.
• PLL CIRCUITS
RX VCO1
(400–485 MHz; Low band)
(450–485 MHz; High band)
Q18, D10, D13
RX VCO2
(485–470 MHz; Low band)
(485– 512/520 MHz; High band)
Q17, D8, D9
Loop
filter
PLL unlock signal
to the CPU (IC14, pin 73)
Q30, Q53
YGR
LPF
amps.
IC17
OP.
amp.
TX VCO
Q19, D14, D17, D18, D20
4
Charge Programmable
pump divider
Divide
Phase
ratio
detector
adjustment
11
Reference
divider
APC CIRCUIT
The APC (Automatic Power Control) circuit prevents the
transition of the transmit output power level which is caused
by load mismatching or heat effect, etc. At the power
detector, a portion of the transmit signal is rectified to
produce DC voltage which is in proportion of the transmit
power level.
The rectified voltage is applied to the inverted input terminal
of the operational amplifier (IC17, pin 3). The TX power
setting voltage "T2" from the D/A converter (IC12, pin 2) is
applied to the non-inverted input terminal as the reference.
The operational amplifier compares the rectified voltage and
reference voltage "T2," and the difference of the voltage is
output from the operational amplifier pin 4, and the output
voltage controls the bias of YGR amplifiers (Q30, Q53) and
power module (IC15) for stable transmit output power.
to the 1st mixer (IC10)
IC15
Power
ANT
amp.
SW
D47
Each output signals are amplified by the buffer amplifiers
(Q22, Q29), and applied to the 1st mixer (IC10, pins 4, 5) via
TX/RX switch (D25 is ON, D24 is OFF) and LPF (L22, L23,
C215, C216, C236, C237), to be mixed with the received
signals to produce the 46.35 MHz 1st IF signal.
• TX VCO (Q19, D14, D17, D18, D20)
The output signal is applied to the transmit amplifi ers via the
buffer amplifi ers (Q22, Q29) and TX/RX switch (D24 is ON,
D25 is OFF).
A portion of the buffer-amplified VCO output signals from the
buffer amplifier (Q22) are applied to the PLL IC (IC4, pin 6)
via doubler (Q25) and BPF (Q5, D4, D5, L4, R77, C84−C90).
Buffer
Buffer
Q29
Q22
PLL IC (IC4)
6
Prescaler
14
SCK
15
Shift register SSO
16
PLST
10
15.3 MHz
reference frequency signal
5 - 3
LPF
D49
D51
D24
to transmitter circuit
D25
to 1st mixer circuit
×3
Q25
BPF
PLL control signals from the CPU (IC14)
to the antenna
X1
15.3 MHz
