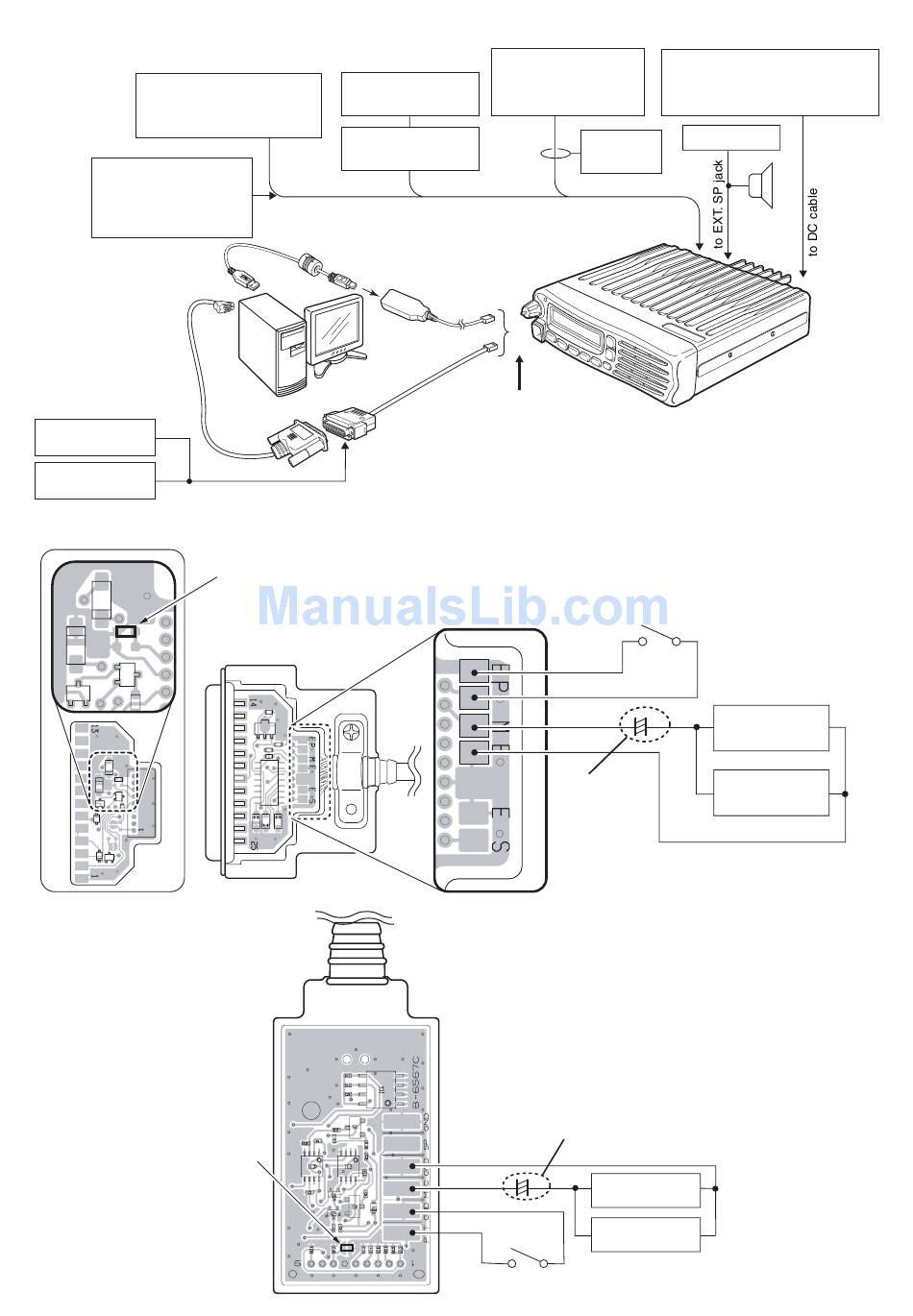

• CONNECTION
Standard signal generator
–127 to –17 dBm
(0.1 V to 32 mV)
CAUTION:
DO NOT transmit while
SSG is connected to
the antenna connector.
to an RS-232C port
RS-232C cable
(straight)
AC millivoltmeter
Audio generator
(RS-232C type Cloning cable)
OPC-1122U
(USB type Cloning cable)
Add a jumper wire here
Modulation analyzer
Attenuator
50 dB or 60 dB
OPC-1122U (USB type)
JIG CABLE
PC
JIG CABLE
Add a jumper wire here
OPC-1122
RF power meter (50 Ω)
1–50 W [USA-01/02]
1–30 W [others]
Frequency
counter
to the antenna connector
to the
[MICROPHONE CONNECTOR]
PTTE
PTT
MIC
MICE
Electrolytic
capacitor
47 µF
Electrolytic
capacitor
47 µF
GND
MIC +
GND
PTT
PTT switch
6 - 2
DC power supply
13.6 (13.2) V / 20 A [USA], [EUR]
13.2 (13.2) V / 20 A , [EUR]
SINAD meter
SP (4 Ω)
IC-F6061
IC-F6062
IC-F6063
PTT switch
+
Audio generator
300 Hz to 3 kHz
AC
millivoltmeter
Audio generator
300 Hz to 3 kHz
AC
millivoltmeter
