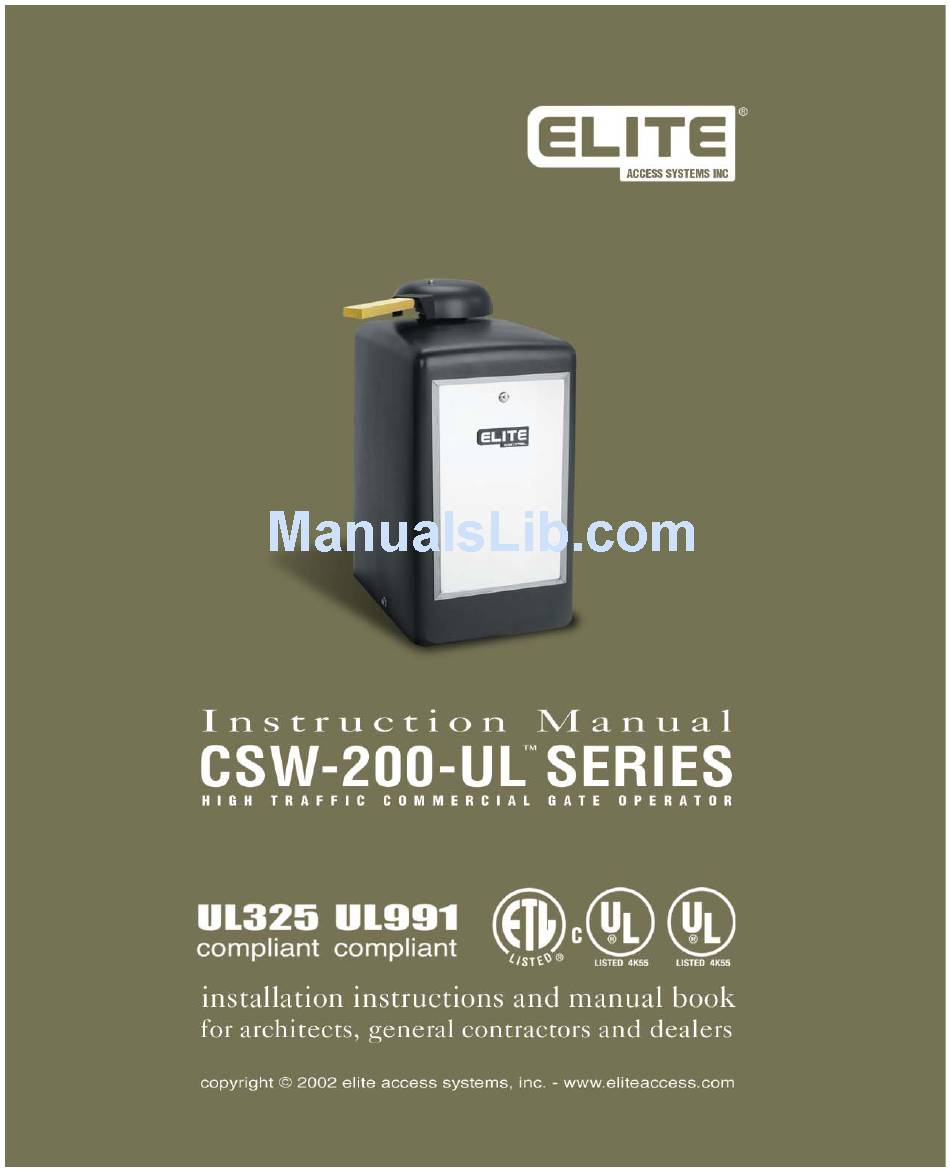

Elite CSW-200-UL Series Instruction Manual
Csw-200-ul series high traffic commercial gate operator
Hide thumbs
Also See for CSW-200-UL Series:
- Instruction manual (34 pages) ,
- Instruction manual (40 pages)
Subscribe to Our Youtube Channel
Related Manuals for Elite CSW-200-UL Series
Summary of Contents for Elite CSW-200-UL Series
- Page 1 Click on the desired topic in the “Bookmarks” column or “Table of Contents” to select page. V 1102...
-
Page 2: Table Of Contents
Elite Recommended Setup ........ -
Page 3: Ul Listings
U L L I S T I N G S A N D I N S T R U C T I O N S INSTALLATION INSTRUCTIONS REGARDING THE GATE OPERATOR A) Install the gate operator only when: 1) The operator is appropriate for the construction and the usage Class of the gate. - Page 4 U L L I S T I N G S A N D I N S T R U C T I O N S G) For a gate operator utilizing a non-contact sensor such as a photo beam: 1) See instructions on the placement of non-contact sensor for each type of application.
- Page 5 U L L I S T I N G S A N D I N S T R U C T I O N S IMPORTANT SAFETY INSTRUCTIONS WARNING - To reduce the risk of injury or death: 1. READ AND FOLLOW ALL INSTRUCTIONS. 2.
- Page 6 U L L I S T I N G S A N D I N S T R U C T I O N S Gate – A moving barrier such as a swinging, sliding, raising lowering, rolling, or like, barrier, that is a stand-alone passage barrier or is that portion of a wall or fence system that controls entrance and/or egress by persons or vehicles and completes the perimeter of a defined area.
-
Page 7: Role Of Specifiers And Designers
R O L E O F S P E C I F I E R S A N D D E S I G N E R S Specifiers and designers should design an automatic vehicular gate system to: • Incorporate UL 325 compliant equipment. -
Page 8: Role Of End Users / Home Owners
R O L E O F E N D U S E R S / H O M E O W N E R End users should be made aware that they must: • Contact a trained gate systems technician to maintain and repair the gate system (End users should never attempt to repair the gate) •... -
Page 9: Warnings And Precautions
W A R N I N G S A N D P R E C A U T I O N S Vehicular Gate The CSW-200 is for Use Only! NOT for use on any Pedestrian: Gateways,Doorways or Passageways. Property owners must never let pedestrians cross the path of a moving gate! Property owners must never mount any gate operating device accessible through the gate! Property owners must never let anyone hang or ride on the gate! -
Page 10: Elite Recommended Setup
Maximum Pull – 125 lbs. Maximum Pull – 250 lbs. Be sure to read and follow all Elite and UL instructions before installing and operating any Elite products. Elite Access Systems, Inc. is not responsible for improper installations or failure to comply with local building codes. -
Page 11: Concrete Pad & Gate Arm Attachment
C O N C R E T E PA D A N D G AT E A R M AT TA C H M E N T Top View 19" 5 1/4" 3 7/8" 14" 3 5/8" 5 1/4" Red Head Fastener 1/2"... -
Page 12: Installation Layouts
39" 27.5" 28.5" 14" 41" *Note - If this dimension is between 20 and 32 inches, compact installation is necessary. (Refer to Page 12) These measurements are not exact for every application. For toll free technical support please call: 1-888-ELITE-10... -
Page 13: Compact Installation
C O M P A C T I N S T A L L A T I O N Compact Installation Only! Do Not Use These Measurements for a Standard Installation. 20" Minimum Width Hinge Center 33" 2" 9" 26.5" 23"... -
Page 14: Gate Arm Installation
G A T E A R M I N S T A L L A T I O N Incorrect Installation Correct Installation Once the gate arm measurements are calculated: weld the bracket on the gate. Weld the longer arm....then weld the shorter arm. -
Page 15: Adjustment Of Output Shaft
A D J U S T M E N T O F O U T P U T S H A F T Red handle Tighten the Nut must be in 90° this position Fit Pin in Slot Tighten Handle Pull Pull the short arm away from the gate. -
Page 16: Adjusting Gate Traveling Distance
A D J U S T I N G G A T E T R A V E L I N G D I S T A N C E Limit Limit Cam Switches Adjustments Loosen Set Allen Screw Screw Release the red handle and open the gate to a distance desired. -
Page 17: How To Connect Power (120 V)
2200 Feet Caution: ELITE ACCESS SYSTEMS, INC. is not responsible for conflicts between the information listed in the above chart and the requirements of your local building codes. The information is for suggested use only. Check your local codes before installation. -
Page 18: Clutch Adjustment
Installers should keep photos of signs on gate in their records. Warning Signs Attached on Both Sides of Gate Elite Part # A WS Warning Sign Clearly Visible on Operator... -
Page 19: Two-Way Adjustable Reversing Sensor
LOOP LOOP LOOP MOTOR of the gate and the condition of installation. Sensitivity make a better gate system, use any of Elite's power hinges. DO NOT TOUCH ALARM SENSOR Too sensitive = if the gate stops or reverses by itself. -
Page 20: Master / Slave With Timer On
M A S T E R A N D S L A V E W I T H T I M E R O N Master and Slave Boards are Interchangeable Master Omni Board Primary Control for System Caution: Never run high voltage and low voltage wires in same conduit Use low voltage wires in separate conduit to connect gate operators together CENTER SAFETY... -
Page 21: Master / Slave With Timer Off
M A S T E R A N D S L A V E W I T H T I M E R O F F Caution: Never run high voltage and low voltage wires in same conduit Use low voltage wires in separate conduit to connect gate operators together Master Omni Board Slave Omni Board CENTER... -
Page 22: Instructions For Optional Systems
I N S T R U C T I O N S F O R O P T I O N A L S Y S T E M S CENTER SAFETY EXIT Omni Option Board Elite Part # O-OMNI EXB QC C OPE N ST OP... -
Page 23: Solenoid Connection With Optional Board
Power Relay Contact Rating Omni Option Board 0.5 A - 125 VAC Elite Part # O-OMNI EXB Ground 1 A - 24 VDC M A G L O C K C O N N E C T I O N W I T H O P T I O N A L B O A R D 7 –... -
Page 24: Solenoid / Maglock J3 Standard Connection
S O L E N O I D / M A G L O C K J 3 C O N N E C T I O N Wire Harness Normally Closed CENTER SAFETY EXIT Common Normally Open DC-BACKUP Connection of a Solenoid or Magnetic Lock can be made SYSTEM ON TIMER MS LINK... -
Page 25: House Alarm / Proximity Switch Connections
Armed 12 – Normally Closed OPEN STOP CLOSE MAGLOCK A L ARM ARMED M/ S L INK 13 – Ground Omni Option Board Elite Part # O-OMNI EXB CENTER SAFETY EXIT DC-BACKUP OPEN STOP CLOSE MAGLOCK A L ARM ARMED... -
Page 26: Optional Plug-In Loop Detector
Twisted wires must be 6 turns per foot minimum Wire-Loop “Center Loop” Wire-Loop “Safety Loop” Elite Loop detectors needed to do this function. Elite Part # A ELD Wire-Loop “Exit Loop” T H R E E P U S H B U T T O N S T A T I O N... -
Page 27: Surge Suppressor Terminal Input Connections
SURGE SUPPRESSOR TERMINAL INPUT CONNECTIONS Output Power Ground (-) 24 DC (+) ® 3 Wire Radio Receiver 24 Volt Relay Radio Power Master/Slave Operator 4 Wire Radio Receiver Red 24 Volt Grey Black Grey External “Center” Loop Detector Card Reader External “Safety”... -
Page 28: Safety Loop System
S A F E T Y L O O P S Y S T E M Allows gate to stay open when vehicles are obstructing gate path. Allows gate to stay open when vehicles are obstructing gate path. Attention: To connect loop detectors, refer to page 25 and 26. -
Page 29: Center Loop System
C E N T E R L O O P S Y S T E M Allows gate to stay open when vehicles are obstructing gate path. Attention: To connect loop detectors, refer to page 25 and 26. Center Loop Even with Edge of Open Gate... -
Page 30: Exit Loop System
E X I T L O O P S Y S T E M Allows gate to automatically open for exiting vehicles. Attention: To connect loop detectors, refer to page 25 and 26. Open End of Gate Home Run 1/8" to 1/4" Road Surface Saw Slot Important... -
Page 31: Emergency Release
E M E R G E N C Y R E L E A S E Unscrew Bolt Special tool required for the “optional” security bolt Lift Off Cover Loosen Red Handle Gate can now be manually moved Grab the Gate to Make Adjustments Tighten the Red Handle, Replace the Cover and Bolt when Finished When the power is restored, the gate will readjust itself automatically. -
Page 32: How To Replace Control Board
H O W T O R E P L A C E C O N T R O L B O A R D Disconnect wire harnesses from OmniControl board. Unscrew 3 nuts and remove board. A U D I O A L A R M Twice Consecutively, When one of the following events happens an Alarm will Sound! -
Page 33: Optional Dc-1000U Back-Up
O P T I O N A L D C - 1 0 0 0 U B A C K U P Option A: DC-1000 Unit In case of power failure the gate opens automatically one time and stays open. When power is restored the operator returns to normal condition. -
Page 34: Uphill Driveway Installation
Impossible Gate hits driveway Possible Special arm and hinges are required Swivel Arm Elite Part # Q103 A C C E S S D O O R External Loop Detectors Radio Receiver Access Door - A generous allotment of space is allowed for external loop detectors and radio... -
Page 35: Secondary Entrapment Wiring
SYSTEM ON TIMER MS LINK POWER OmniControl SENSORS OVERLOAD Board MADE IN USA OPEN LEFT OPEN RIGHT FIRE STRIKE RADIO GATE ELITE Part # DEPT. OPEN RECEIVER LOCKED Radio Receiver + EXIT SAFETY CENTER RESET LOOP LOOP LOOP MOTOR A OMRON ®... -
Page 36: Troubleshooting / Led Information Center
T R O U B L E S H O O T I N G L E D I N F O R M A T I O N Resetting Motor Press firmly to reset thermal breaker on the motor. “Reset Motor”... -
Page 37: Troubleshooting Table
2.You can stop the alarm by using the stop button. 1.The loop detector needs to be reset. 1.Reset the loop detector (If you use Elite "LOOP LED" ON 2.The wire loop has been disrupted Plug-in Loop detectors, change the setting NO VEHICLE ON THE 3.The loop detector needs to work in a... -
Page 38: Available Products
A V A I L A B L E P R O D U C T S Remote External “Safety” Loop Detectors Control System Three Push Button Key Switch Card Reader Photo Electric Eye Outdoor Digital Lock Key Station Outdoor Digital Lock Indoor Intercom Outdoor Intercom with Intercom... -
Page 39: Csw-200 Part Illustrations
C S W - 2 0 0 P A R T S Q269 Stainless Steel Q268 Q084 Q118 Q062 Q060 Q059 Q061 Q216 Q057 Q244 UL Q213 DM / 1 HP Cover Q246 NON UL Q247 UL Limit Switch Q044 Assembly Q217 Q208... -
Page 40: List Of Csw-200 Parts / Maintenance
7. Check for proper clutch adjustment. 8. Check for proper synthetic oil level in upper gear box. 9. For parts, refer to page 38 and this page. Please contact your local service company. call toll free for technical support: 1-888-ELITE-10...
