ACCESS SYSTEMS INC
ACCESS SYSTEMS INC
eliteaccess.com

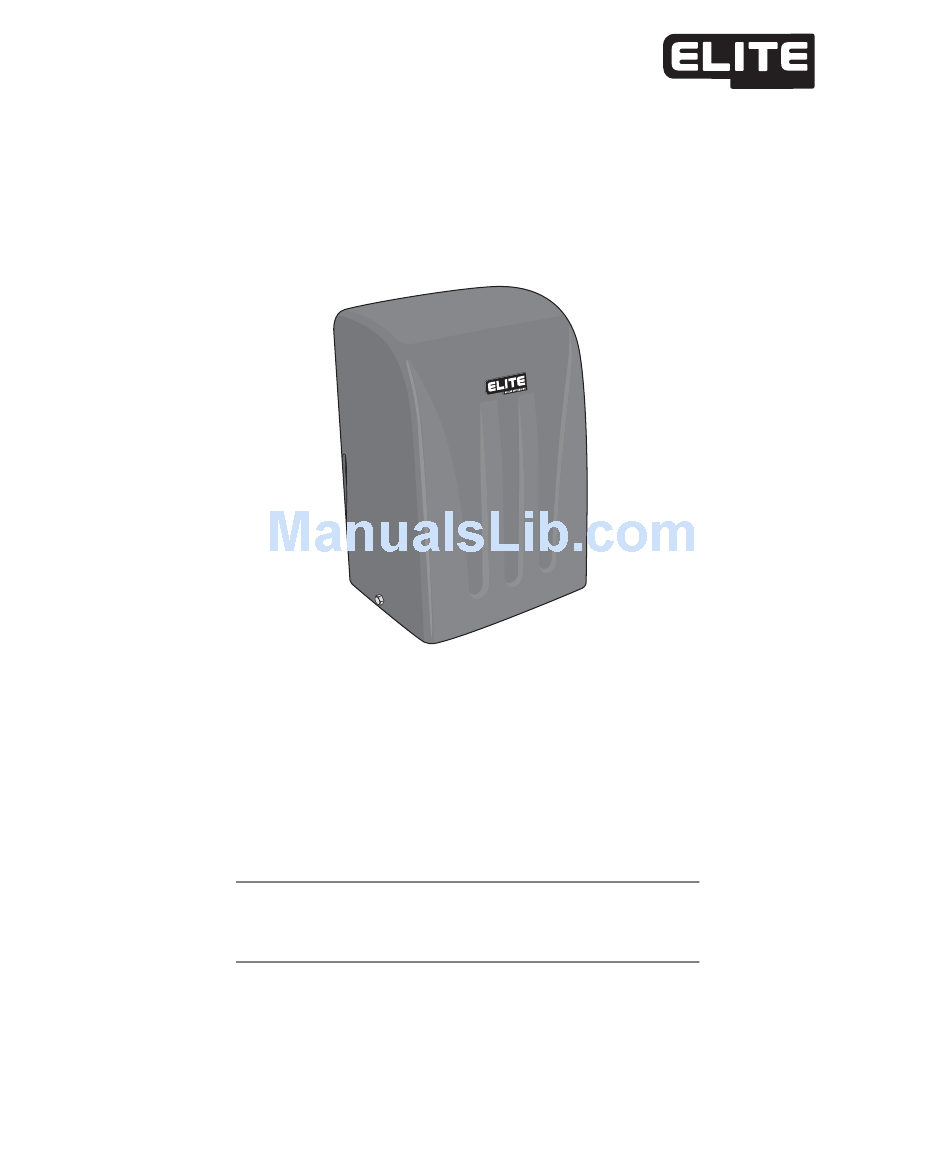

Instruction Manual
ROBO SLIDE
Residential Gate Operator
Installation instructions and manual book for
architects, general contractors and dealers
Click on the desired topic in the "Bookmarks" column or "Table of Contents" to select page.
Copyright © 2000 by Elite Access Systems, Inc. – www.eliteaccess.com
Advertisement
Table of Contents
Related Manuals for Elite Robo Slide
Summary of Contents for Elite Robo Slide
- Page 1 Residential Gate Operator Installation instructions and manual book for architects, general contractors and dealers Click on the desired topic in the “Bookmarks” column or “Table of Contents” to select page. Copyright © 2000 by Elite Access Systems, Inc. – www.eliteaccess.com...
-
Page 2: Table Of Contents
Robo Slide Parts List Robo Slide Parts © COPYRIGHT 1992 BY ELITE ACCESS SYSTEMS, INC. All rights reserved. No part of this manual may be reproduced in any means; graphic, electronic, mechanical, or photocopied without the express written permission of the... -
Page 3: Important Notice
I M P O R T A N T N O T I C E IMPORTANT! Because gate coasting distance varies with temperature, Elite DOES NOT recommend the installation of a catch post. This could cause the gate to collide with the post. -
Page 4: Safely Operating Gate
S A F E L Y O P E R A T I N G G A T E Owners Must Never Let Pedestrians Cross the Path of a Moving Gate! CAUTION Owners Must Never Mount Any Gate Operating Devices Accessible In Between the Gate and the Wall! CAUTION Owners Must Never Mount Any Gate Operating Devices Accessible Through the Gate! CAUTION... -
Page 5: Configuration And Specifications
Solar Power – Optional (Elite Part # SOLAR Be sure to read and follow all Elite's instructions before installing and operating any Elite product. Always disconnect the gate operator's power source before repairs are attempted. Elite Access Systems, Inc. is not responsible for improper installation or CAUTION failure to comply with local building codes. -
Page 6: Warnings And Precautions
R E A D E N T I R E O W N E R S M A N U A L B E F O R E I N S T A L L A T I O N Model: Robo Slide For Single Home Applications. -
Page 7: Step 2: Mounting Operator
I N S T A L L A T I O N STEP 2: Mounting Operator Pour concrete bed for Robo Slide. Minimum size of bed is 20" x 15" x 20"d. Suggested installation for bolts is 1/2" x 3 1/2" (for red-head fastener). -
Page 8: Step 4: Gate Movement Direction
S T E P S T E P I N S T A L L A T I O N STEP 4: Gate Movement Direction Plug in the limit/motor harness wires to the left socket (#1) if your gate, from the inside of the property, opens to the left and closes to the right. -
Page 9: Step 5: Dc Power Supply Connection
I N S T A L L A T I O N STEP 5: DC Power Supply Connection Use Elite's optional 18 VAC plug-in transformer (Elite Part # POW-1). Hook up the transformer to 115 VAC. Use two, low voltage, 14 gauge / 300watt direct burial, landscape lighting cables. -
Page 10: Step 6: "Optional" Solar Panel
Not Matter Yellow Wires #2, #4 Energizing Robo Slide with solar power only needs the radio receiver to operate the gate. The only recommended external devices other than radio receivers are dry-contact command devices which do not consume any current like key switches. Using other... -
Page 11: Step 7: Terminal Connections
The radio receiver must be 12 VDC only (Elite Part # 1099-12V). If you want to use safety or exit loops, you must use 12 VDC loop detectors only (Elite Part # 23). The hook-ups for the radio receiver are as follows: Strike open wires go to 8 and 9 on terminal. Power supply goes to terminal 10 (positive +) and terminal 8 (negative -). -
Page 12: Step 8: Adjusting Gate Travel Distance
I N S T A L L A T I O N STEP 8: Adjusting Gate Travel Distance Adjustment is done by limit switches which are located on the Robo Slide chassis. By pressing the plate down and spinning the adjustment nuts, set your limit switches for open and close cycles. -
Page 13: Step 10: 2-Way Adjustable Reversing Sensor
S T E P S T E P I N S T A L L A T I O N STEP 10: Two-Way Adjustable Reversing Sensor There is a blue pot with a white screw adjustment on the upper portion of the control board marked “REVERSE SENSOR”. -
Page 14: Optional" Input Board
I N P U T B O A R D The optional board allows extra control of the gate, is available only from Elite Access Systems. Installation is simple; just clip the optional board to the J2 slot on the top of the control board. -
Page 15: Master And Slave Operators With Timer
W I T H T I M E R To use the master/slave option with Robo Slide, you must purchase the Optional Input Board (Elite Part # Q203) and connect it to the J2 slot. Refer to Optional Input Board... -
Page 16: Master And Slave Operators Without Timer
W I T H O U T T I M E R To use the master/slave option with Robo Slide, you must purchase the Optional Input Refer to Optional Input Board Board (Elite Part # Q203) and connect it to the J2 slot. -
Page 17: Control Board Functions
C O N T R O L B O A R D F U N C T I O N S Power on LED Radio receiver LED Charge on LED Timer power LED Low battery indicator LED Timer-Up indicator Heavy gate indicator LED J2 alternate optional output Open Relay LED Movement direction sockets... -
Page 18: Led Descriptions
L E D D E S C R I P T I O N LED Description LED On LED Off Power at all times when 1. No power source at all Power source OK and there is one or more board power fuse OK power sources If dimmed down... -
Page 19: Led Descriptions
L E D D E S C R I P T I O N C O N T I N U E D LED Description LED On LED Off Reversing Sensor Sensor is detecting obstruction No obstruction is detected Acknowledgement of receiving open command from one of the terminals •... -
Page 20: Troubleshooting
If the gate is not moving in any direction be sure to check all of the LED displays on the control board. If the board power or charging power LEDs are “ON”, change the corresponding fuse on the top left corner of the board. Replace fuse with 1.5A - 250V fuse CAUTION Robo Fuse (Elite Part # Q162) -
Page 21: Gate Will Not Close
T R O U B L E S H O O T I N G The Gate Will Not Close! Symptom: The radio receiver LED on the control board remains “ON” when using the remote control. Possible Solutions: Stuck remote control button. The radio receiver has malfunctioned in the “ON”... -
Page 22: If You Hear A "Beep" Sound
ALARM ALARM SENSOR SENSOR After fixing the problem, the Robo Slide will automatically reset itself. Robo Slide Parts List Q124 - Chassis Robo Slide Conversion Kit Q129 - Idler Sprocket with Bolt/Nut Q211 - Limit/Motor Harness... -
Page 23: Robo Slide Parts
R O B O S L I D E P A R T S Q206 Q211 Battery Harness Q218 Q204 Q203 Conversion Kit Q162 Q206 Q006 Q123 Q241 Q211 Q133 Q180 Q218 *Q129 Q131 Q212 Q134 *Q032 A BT 12 Q156 Q132 Q124...
