Intelligent Home DT6913SD User Manual

Video door entry system

Advertisement

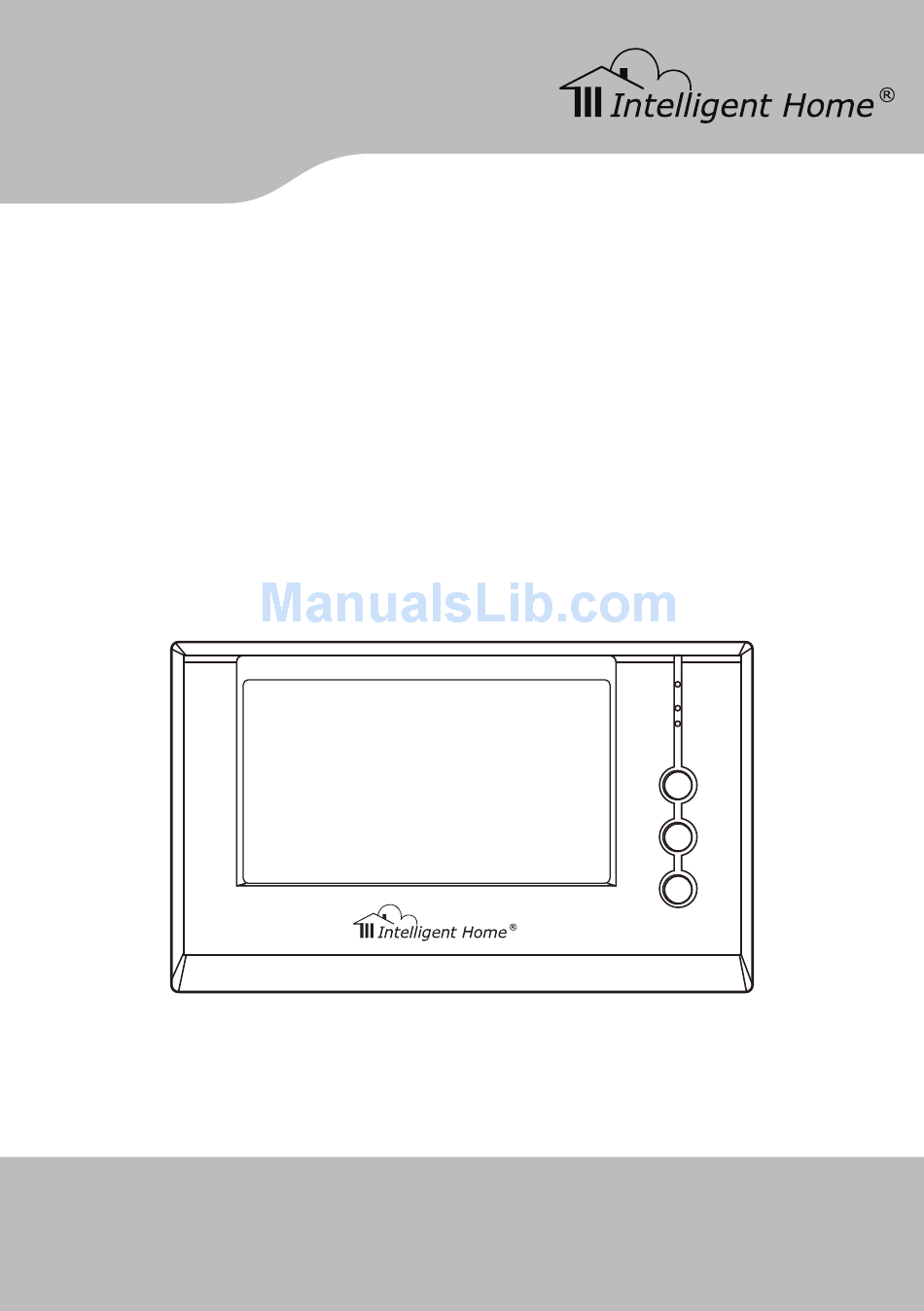

Video Door Entry System
user manual
This manual covers
DT6913SD
and
DT6913
Monitor
www.intelligenthomeonline.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DT6913SD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Intelligent Home DT6913SD

  • Page 1 Video Door Entry System user manual This manual covers DT6913SD DT6913 Monitor www.intelligenthomeonline.com...
  • Page 2 PRECAUTIONS ● Read this manual through before using the product. ● Slots or openings in the back of the monitor, are provided for ventilation and to ensure reliable operation of the video monitor or equipment and to protect if from overheating. These openings must not be blocked or covered.
  • Page 3: Table Of Contents

    CONTENT 1. Monitor Parts and Functions - - - - - - - - - - - - - - - - - - - - - - - -1 2. Monitor Mounting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -1 3.
  • Page 4: Monitor Parts And Functions

    1. Monitor Parts and Functions Microphone UP button IN-USE/MESG INI-USE DOWN button MESG ENTER button (+)ADD button CALL button CALL (-)REDUCE button UNLOCK button UNLOCK MONITOR/TALK button TALK TFT screen Ventilation Vent Speaker Extend Port Connection Port DIPS 1 2 3 4 5 6 DIP Switches Mounting Hook Dimension: 153(H)×250(W)×30(D)
  • Page 5: System Connection

    3. System Connection Monitor Camera Note 3 Note 1 Note 4 DIPS L1 L2 PL S1+ S2+ S- Note 2 1 2 3 4 5 6 Note 5 Note 6 ● Note 1: Mount the DPS and PS5 side by side on the DIN nail or on the wall. ●...
  • Page 6: Multiple Monitors Connection

    4. Multiple Monitors Connection Note 1 Note 2 Note 3 Note 4 1# Monitor 2# Monitor 3# Monitor 4# Monitor DIPS DIPS DIPS DIPS 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6 Note 5 Note 7...
  • Page 7: Multiple Door Cameras Connection

    5. Multiple Door Cameras Connection Note 1 DIPS DIPS DIPS DIPS 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6 4# Camera 3# Camera 2# Camera 1# Camera Note 2 DBC4...
  • Page 8: Talk/Unlock Operation

    6. Talk/Unlock Operation When visitor presses the Call Button A(or B) on the Outdoor Station, the Monitor(or B) will ring, at the same time, the screen displays the visitor image. TALK EXIT UNLOCK Name A Name B Talk icon Record icon. Exit icon Setting icon.
  • Page 9: Ring Tone Setting

    7. Ring Tone Setting 8. Monitor Time Setting 15 pieces ring tone can be selected. When Monitor Time is the maximum monitoring the Monitor is in standy, press anywhere time when the TALK/MON Button is pressed on the screen, a full screen calendar will be in standby, after which the screen will be showed.
  • Page 10: Auto-Record

    9. Auto-Record 10. Time Setting When the Auto-Record function is turned When the Monitor is in standby, press the on, a 10 seconds video will be recorded screen to open the time screen, press again automatically after the Call Button was to enter the main menu.
  • Page 11: Restore To Default

    11. Restore to Default 12. Screen Setting The restore to default function allows the When the Monitor is in monitoring or talking, user to recover the settings to factory setting. Press icon to open the screen setting Note that the restore to default operation will icons to increase or menu.
  • Page 12: Built-In Memory And Sd Card

    13. Built-in Memory and SD Card This Monitor has been equipped with a buit-in memory (about 118 MB, 50 ASF videos) together with a SD card reader. Maximum 2 GB SD card can be supported. When a new SD card was inserted to the Monitor, the SD card will be formated to FAT32 file system and 2 file folder(named DCIM and PHOTO) will be created.
  • Page 13 play monitor When the Monitor is in standby, press the screen setup exit to enter Main menu then enter PLAY menu. Press the icon to enter. Play back photo Play back video Copy videos from built-in memory to SD card (SD-->DCIM-->101MEDIA folder) Memory information Exit...
  • Page 14: Unlock Setting

    Hardware Ver 0502 setup Software Ver 0180 exit Voltage 20.8V Intelligent Home S y s t e m Manufacture 00.0 Restore to default 2 seconds Exit Intercom Function Intercom Call Inner Call Direct Call Guard Unit Exit...
  • Page 15: Connection Other Device To Monitor

    16. Connection Other Device to Monitor 8.1 Connect Doorbell call button Additional door bell call button can be connected to the Monitor, so that the visitors can ring the door bell again in front of the user's apartment. EXT-RING When the call button is pressed, the Monitor will Door bell call button VIDEO output ring tones but the screen will keep off, and...
  • Page 16: Specifications

    17. Specifications Monitor ● Power supply for indoor monitor: DC 24V (supplied by Adaptor) ● Power consumption: Standby 0.5W; Working status 15W ● Monitor screen: 7 Inch color TFT-LCD ● Display Resolutions: 1,440(R, G, B) x 234 pixels ● Built-in Memory: 118 MB(only for DT692SD) ●...
  • Page 17 -14-...
  • Page 19: Warranty Card

    WARRANTY CARD NB Please keep this document safe, as it is proof of your Warranty Your Video door system comes with a one year Manufacturers Warranty. When used normally, the following services are offered: 1. Replacement for malfunctioning parts in first three months 2.
  • Page 20 DT6913-villa-V1 2010-07-29 The design and specifications can be changed without notice to the user. Right to interpret and copyright of this manual are preserved. www.intelligenthomeonline.com...
