Summary of Contents for Intelligent Home IH6912

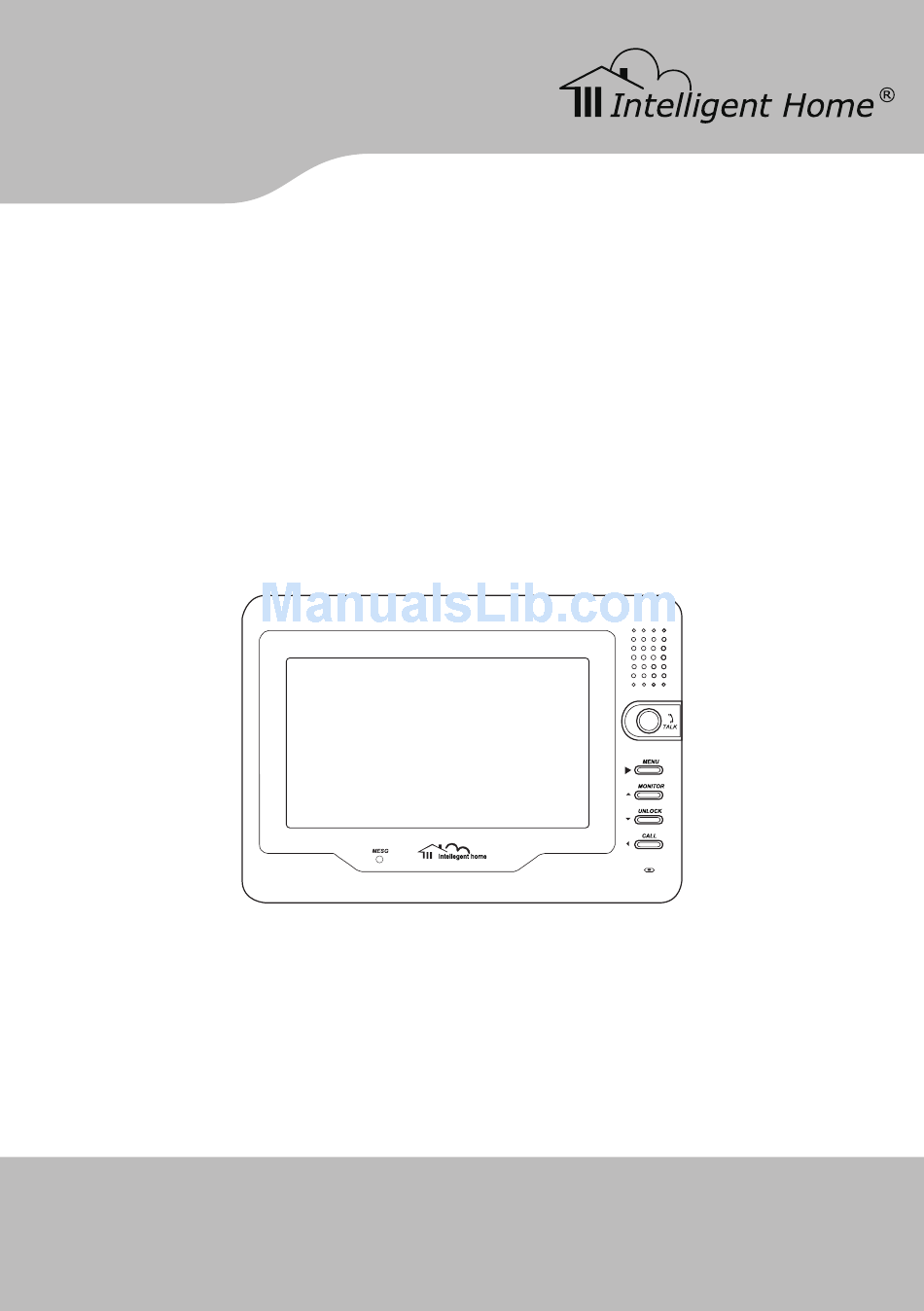

- Page 1 Video Door Entry System user manual This manual covers IH6912 Master and IH6912 Slave www.intelligenthomeonline.com...
- Page 2 PRECAUTIONS ● Connect this unit ONLY to other compatible units. Do not connect it to any other type of alarm or auxiliary device. Connecting anything else to this unit may damage it or prevent it from operating properly, and will invalidate the warranty.
- Page 3 FFEATURES Touch Screen Operation All the operations and settings can be done by touching the LCD screen. Full Screen Digital Clock The date and time will displayed when touch a n y w h e r e o f t h e s c r e e n , a n d i t w i l l c l o s e d automatically after 3 minutes.
-
Page 5: Table Of Contents
CONTENT 1. Parts and Functions - - - - - - - - - - - - - - - - - - - - - - - - - 1 2. Installations - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 3. -
Page 6: Parts And Functions
1. Parts and Functions LCD Touch Screen Speaker TALK button MENU button MONITOR button UNLOCK button CALL button Microphone LED indicator 2. Installations Use the screws to fix the Mounting Bracket on the wall. Screws and brackets are included with the product for this purpose. -
Page 7: System Connection
3. System Connection Terminals and descriptions: ● 1R Power positive. +12V present when Outdoor Station calling or being monitored. ● 2W Power negative (GND) ● 3Y Image signal (Video signal) ● 4B Talk and control signal (Audio signal) ● POWER TERMINAL: Black wire DC negative (-) ●... -
Page 8: Bus Connection
4. Bus Connection Audio Slave Mon H-set CN101 CAM 1 CAM 2 Audio Slave Mon H-set CN101 CAM 1 CAM 2 Audio H-set Slave Mon CN101 CAM 1 CAM 2 GX-3P Slave Mon Audio H-set CN101 CAM 1 CAM 2 - 3 -... -
Page 9: Multi Door Camera Connection
5. Multi Door Camera Connection Audio Slave Mon H-set CN101 CAM 1 CAM 2 Audio Slave Mon H-set CN101 CAM 1 CAM 2 Audio H-set Slave Mon CN101 CAM 1 CAM 2 - 4 -... -
Page 10: Basic Video Door Phone Operation
You can TALK talk with the visitor for 90 seconds before the Intelligent Home S y s t e m screen will automatically shut off. To end the conversation yourself, press TALK Button (or touch icon) again. If nobody responds to... -
Page 11: Operation For Multiple Doorbell Cameras
EXIT To end the intercom conversation, press TALK. If no one answers, it will exit automatically after 30 seconds. Intelligent Home S y s t e m The doorbell function will always override the intercom function. - 6 -... -
Page 12: Ring Tone And Other Settings
The date/time page will close in 3 minutes if no Buttons are pressed. Entering the main Menu: Touch the screen Intelligent Home S y s t e m again to enter the Main Menu, press icon to setup enter Setup Menu. -
Page 13: Picture Memory Operations
Touch the ‘#’ icon (on the number key pad) to : OK : Cancel save and exit or touch the''icon to cancel Intelligent Home S y s t e m Set: submenu: RLC and Remote Other Device settings. Hardware ver A1.1... -
Page 14: Image And Volume Adjustment
The first item is Scene mode selection: Total 4 Intelligent Home S y s t e m SCREEN modes can be selected in sequence: NORMAL, USER, SOFT and BRIGHT. Whenever you modify BRIGHTNESS or COLOUR, SCENE item will be set to USER mode automatically. -
Page 15: Warranty Card
4. Attempting to force the device to perform functions for which it is not intended 5. Attaching the device to power supplies other than thoserecommended by the manufacturer Distributor for Warranty purposes: Intelligent Home Online Ltd 34a High Street Hornsey London... - Page 16 IH6912-4wire-V2 2011-11-10 The design and specifications can be changed without notice to the user. Right to interpret and copyright of this manual are preserved. www.intelligenthomeonline.com...
