Intelligent Home DX-471 Installation And User Manual

Image recording touch screen monitor video door system wifi/ip/ 2-wire series
Hide thumbs
Table of Contents

Advertisement

Quick Links

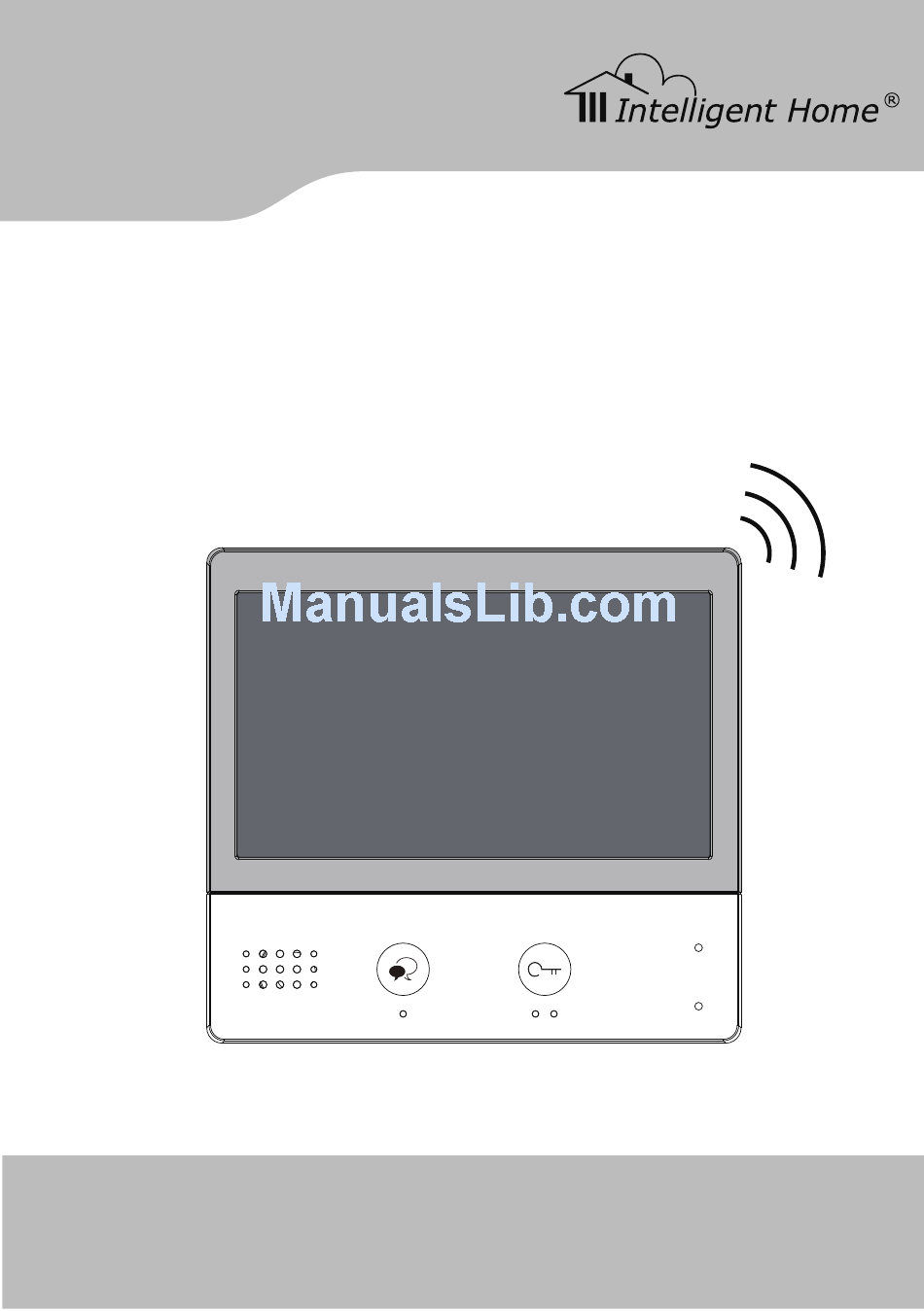

2 WIRE HOME WiFi/IP SYSTEM
DX471-TD7
7" COLOR WiFi/IP MONITOR
DX-471 Video Door System
WIFI/IP/ 2-wire Series
Installation and User Manual
Image Recording Touch Screen Monitor
www.intelligenthomeonline.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DX-471 and is the answer not in the manual?

Questions and answers

Related Manuals for Intelligent Home DX-471

Summary of Contents for Intelligent Home DX-471

  • Page 1 2 WIRE HOME WiFi/IP SYSTEM DX471-TD7 7" COLOR WiFi/IP MONITOR DX-471 Video Door System WIFI/IP/ 2-wire Series Installation and User Manual Image Recording Touch Screen Monitor www.intelligenthomeonline.com...
  • Page 2 PRECAUTIONS ● Read this manual through before using the product ● Slots or openings in the back of the monitor, are provided for ventilation and to ensure reliable operation of the video monitor or equipment and to protect if from overheating. These openings must not be blocked or covered.

  • Page 3: Table Of Contents

    Contents 1.Parts and Functions ..........1 2.Mounting .............2 3.Main Menu ............3 4. Answering a Call ..........5 5. Zoom Pan&Tilt...........6 6.Manual Monitoring ..........6 7.Call Another Room or Apartment (Intercom) ..8 8.View Call Records ..........10 9.Operating a Light ..........11 10.Don’t Disturb Function ........12 11.Divert Call ............13 12.Settings .............14 Enter settings ..............14...

  • Page 4: Parts And Functions

    1. Parts and Functions Touch Screen Power/ Don’t Disturb Indicator Speaker Microphone Talk/Mon Button Unlock Button RING 1 2 3 4 5 6 Connection P ort SD Card Slot, WIFI Adaptor Key Functions Speaker To listen the visitors Press for handsfree communication with visitors Talk/Mon button Press to view the doorbell in standby mode LCD screen...

  • Page 5: Mounting

    Terminals Description SW+,SW-: Extra Door Bell button connection port Ring,GND: Extra Ringer RING connection port 1 2 3 4 5 6 POW,GND: 12~16V extra power connection port DIP switches: Set the address of USB-Wi-Fi adaptor monitor DIP 1~DIP5: User Code •...

  • Page 6: Main Menu

    3. Main Menu When you power-up a monitor for the first time, give it 20 sec to boot. Touch screen will be not responsive whilst booting. When Power LED stopped flashing- booting has been finished. Touch Unlock button, or touch anywhere on the screen of monitor in standby and Main menu will appear as follows: Monitor Intercom...
  • Page 7 Icon Meaning Description WiFi connection active but not connected WiFi connection disabled Touch to enter WiFi setting interface - shortcut WiFi connection active and configured While Talking with a Door Station Shows status of talking, unlocking Displays which door station etc.

  • Page 8: Answering A Call

    4. Answering a Call 1. Touch to answer the call 00:10 Door Station1 Touch again to end the call 2. If necessary, during the call, touch to display audio/video adjustment icons 3. Touch to record image/ video manually 4. Touch icons to adjust the parameters you want 00:10 Door Station1...

  • Page 9: Zoom Pan&Tilt

    5. Zoom Pan&Tilt If want to see greater details of visitors,move to the desired position by touching on the screen to view the image in Zoom Pan&Tilt mode 1. Touch to activate zoom pan&tilt 00:10 Door Station1 function 6. Manual Monitoring Touch to select Door Station/s or CCTV cameras if installed for manual monitoring function even when nobody rung the bell 1.
  • Page 10 2. Touch to activate desired camera 3. Touch “>” (to display in sequence) all other cameras 4. Touch to return to the previous page 5. Touch to activate specified camera - shortcut 6. If camera belongs to the Door Station, touch to activate 00:10 Door Station 2 Audio if needed Touch again to return to...

  • Page 11: Call Another Room Or Apartment (Intercom)

    7. Call Another Room or Apartment (Intercom) It is possible to communicate with another monitor if multiple monitors installed in House system or with another apartment in Apartments system 1. Touch to display available Intercom options 2. Touch Intercom by Namelist: to a specific room only 3.
  • Page 12 4. Touch to Intercom with another room via Inner Call: all other Intercom Intercom Namelist monitors will ring Inner Call Guard Station Input Numbers 5. Touch to Intercom with Guard Station- concierge (apartments Intercom Intercom Namelist system only) Inner Call Guard Station Input Numbers 6.

  • Page 13: View Call Records

    7. Type in numbers, then OK. For example 02 will call the monitor with 02 _ Address (User Code) 2 Note: Call from Door Station has a priority and will cancel Intercom call in progress 8. View Call Records Power indicator turned red and flashing- there are some missed calls 1.

  • Page 14: Operating A Light

    100 images from Door Station will be automatically recorded on internal memory 3. Touch to scroll to a next image 1/223 4. Touch to delete the image [2017/09/16 09:50] Door Station 1 9. Operating a Light This function is available only when actual security light is connected with an additional RLC Interface 1.

  • Page 15: Don't Disturb Function

    10. Do Not Disturb Function Do Not Disturb function will set the monitor to not react to door station or other monitors calls 1. Touch Call Scene 2. Touch to set Don’t disturb mode: Don’t Disturb 8H or Call Scene Don’t Disturb Always Call Scene Normal...

  • Page 16: Divert Call

    11. Divert Call The call from door station can be diverted to your smart phone. This function should be supported by Wi-Fi or SIP network 1. Touch Call Scene 2. Touch to set the divert call mode: Divert Call If No Answer or Call Scene Divert Call Always Call Scene...

  • Page 17: Settings

    12. Settings Enter setting page 1. Touch to enter Setting Setting Call Tune Ring volume [04] General Door1 calling tune [01] Installer Door2 calling tune [01] Wireless Door3 calling tune [01] About Door4 calling tune [01] 2. Touch icons for desired customisation, choosing amongst: Ring volume -Door1 calling tune -Door2 calling tune -Door3 calling tune -Door4 calling tune Call Tune -Doorbell calling tune -Intercom calling tune -Inner Call calling tune -Guard Call calling tune...

  • Page 18: Ring Tone Settings

    Ring Tone Settings If system has more that one Door Bell the ring tones can be set individually to distinguish different calling sources. There are 22 tones to choose from Scroll to next page 1. Select Call Tune Setting Call Tune Ring volume [04] 2.
  • Page 19 Date and Time Settings The current date and time can be modified here Setting Date time set Call Tune Date and time General Date mode: MM_DD_YYYY General Language Time mode: HOUR_12 Installer Monitor time Date: xxxx_xx_xx Wireless Shortcut setting Time: xx:xx About SD card 1. Select Date and Time 2.
  • Page 20 Monitoring Time Settings The monitoring time can be changed at any time. It’s available to set 30s, 60s, 90s, 120s, 150s, 180s, 210s, 240s, 270s, 300s * 30s is the default Setting Monitor time select Call Tune Date and time General 30(s) General...
  • Page 21 SD Card Maximum 32GB micro SD card can be installed to enable records of 10s video clips Setting SD Card Call Tune Date and time General SD information General Language Copy image Installer Monitor time Firmware Update Wireless Shortcut setting About SD card 1.

  • Page 22: Installer Settings

    00.00 (factory default) . Up to 5 smart phones can be registered Multiple Monitors System for a House DX-471 monitor: maximum 3 x DT 2-wire series monitors can be added plus up to 5 x WS wireless series and up to 5 x smart phones...
  • Page 23 DIP SWITCH TABLES FOR 32 USER CODES/ADDRESS Tables can be found in Installer Settings. Program via DIP switches on the back of monitor Setting Call Tune Current address [00] General Intercom enable Enable Installer FW upgrade Wireless System setting About Home Wi-Fi Max.
  • Page 24 Enabling/Disabling Intercom Function It is possible to enable/disable the intercom function Setting Intercom enable Call Tune Current address [00] Installer Disable General Intercom enable Enable Enable Installer FW upgrade Wireless System setting About *Intercom function is enabled by default Software Upgrade It’s available to upgrade the device software via SD card when upgrade become available.

  • Page 25: How It Works

    13. How It Works: Two Working Modes Local mode--to receive video calls on smart phone and tablets via local WiFi. Up to 5 x smart phones or tablets can be registered Home R outer Door Station RF CARD PC6A Wi-Fi M aster Wi-Fi sub S mart phone In this mode...

  • Page 26: Wireless Settings

    Wireless Settings WiFi/IP DX-471 video monitor can be connected with sub Wi-Fi WX series video monitors or DT 2-wire series monitors, as well as smart phones and tablets SD card WIFI adaptor Wi-Fi monitor DX - 471 3P-USB cable for...
  • Page 27 7. Enter the password (if required) PWD: vtk_ 8. Touch to activate the connection, and return to Wi-Fi information page 9. Go to Connect/Disconnect SSID: VTKAP03 Wireless PWD: vtk@123 Connect/Disconnect Icon Meaning Description WiFi connection active but not connected WiFi connection disabled Touch to enter WiFi setting interface - shortcut WiFi connection active and configured...
  • Page 28 2. Touch to enter the Master / Slave register aster Wi-Fi monitor Slave Wi-Fi monitor Device manage Device manage Register new slave Register new master Wireless Wireless Master register Slave register My ID: 040019b93fa9/201 My ID: 040019b83ea9/201 Wireless Wireless Receive slave: Registered to: Slave ID:------------ / --- Master ID:------------ / ---...
  • Page 29 2. Touch Register phone Phone manage Register phone Wireless 3. Touch to add Phone Address Add slave Phone Addr: Wireless Add IP/Smart phone 4. Type in the phone IP address (this 192.168.169.199 address can be found in your phone) Make sure your mobile phone is connected to Home WIFI Touch “OK” to save and return to previous page...
  • Page 30 SIP Configuration To divert the call to a smart phone via SIP server Go to the Call Scene Call Scene Call Scene Normal Use 1. Select the divert call mode: No Disturb 8H Divert Call If No Answer or No Disturb Always Divert Call Always Divert Call If No Answer Divert Call Always...

  • Page 31: Door Entry App

    About 1. Touch to enter About Setting Call Tune Device Type: DX471 General S/W Ver: V1.0.0.171110111114 Installer Serial No: 040019b93333 Wireless Node ID: About IP Address: 192.168.01.100 linked Device Type: Model of monitor S/W Ver: Software version Serial No: Monitor’s serial number Node Id: Node ID number IP Address: Monitor’s IP address H/W Address: Monitor’s Mac address...
  • Page 32 Setup the Linphone(Android) 1. Open App 2. Choose USE SIP ACCOUNT 3. Type in ID and password, opensips.org and select UDP -29-...
  • Page 33 4. Make sure that your mobile has good Internet service. After you login Registered will be displayed 5. Select Settings 6. Select Audio 7. Tick Echo cancellation 8. Untick Adaptive rate control 9. In CODES only tick PCMU and untick all other items 10.
  • Page 34 11. Keep all setting as default in VIDEO settings 12. Untick VP8 13. Tick H264 14. All settings are done here. Go back to stand by *Please watch the video on youtube: https://youtu.be/Tnix4C-wuIE -31-...

  • Page 35: Specifications

    15. Specifications ● Power supply: DC 20~28V ● Power consumption: Standby 1.8W; Working 8.16W ● Monitor screen: 7 Inch digital colour TFT ● Display Resolutions: 800*3(R, G, B) x 480 pixels ● Video signal: 1Vp-p, 75Ω, CCIR standard ● Wiring: 2 wires, no-polarity ● Dimensions: H161×W174×D22mm -32-...

  • Page 36: Warranty Card

    5. Attaching the device to power supplies other than those recommended by the manufacturer Distributor for Warranty purposes: Intelligent Home Online Ltd 62 Hartley Old Road Purley Surrey CR8 4HJ +44 (0)20 86170015 www.intelligenthomeonline.com Product: WiFi/IP DX-471 Image Recording Monitor______________________ Serial Number:___________________________________________________ Invoice N: ______________________________________________________ Purchase Date: __________________________________________________...
  • Page 37 DX-471 WiFi/IP Right to interpret and copyright of this manual are preserved www.intelligenthomeonline.com -18-...
