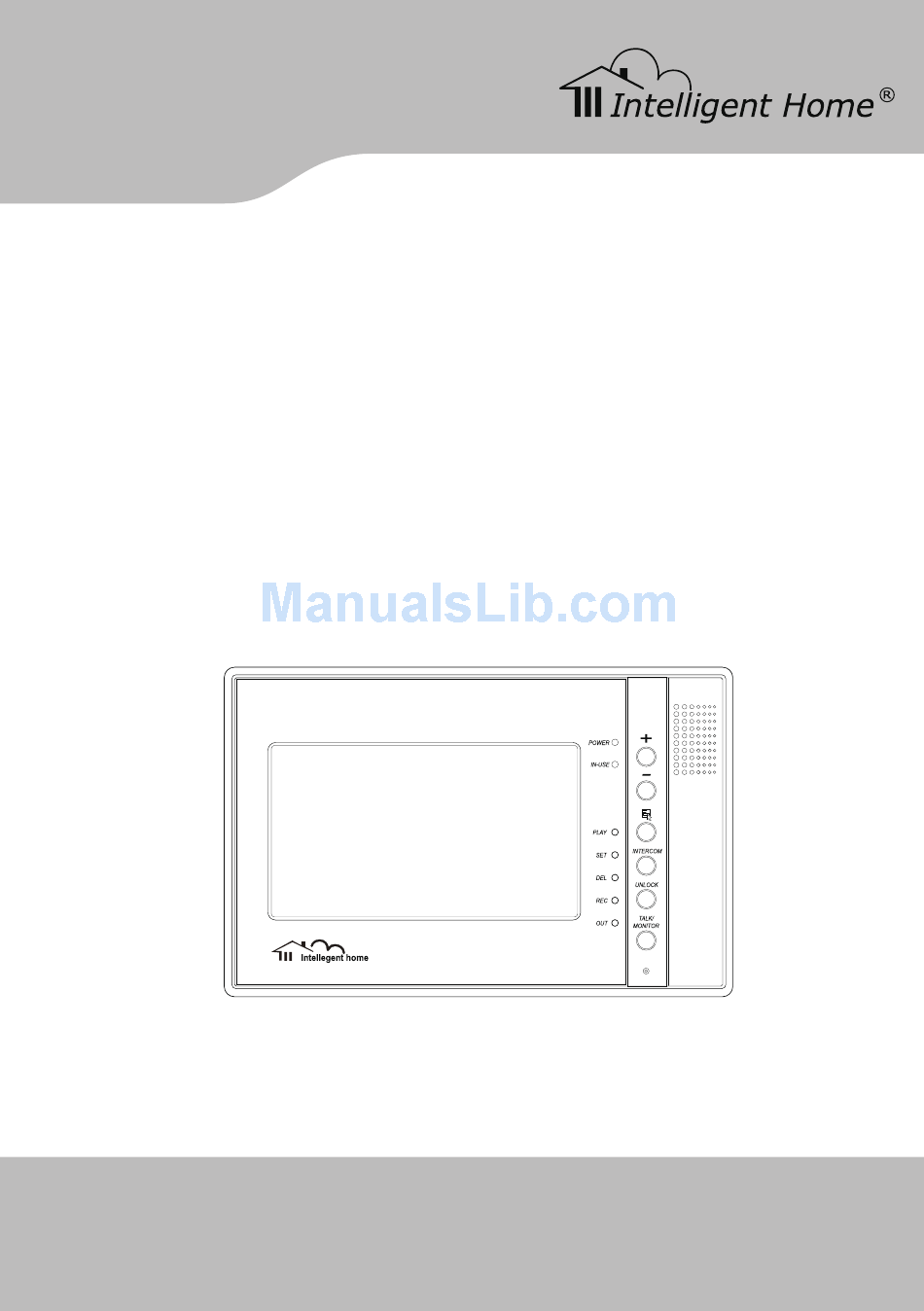

- Page 1 Video Door Entry System user manual This manual covers IH691 Master IH691 Slave Monitor www.intelligenthomeonline.com...
- Page 2 PRECAUTIONS ● Connect this unit ONLY to other compatible units. Do not connect it to any other type of alarm or auxiliary device. Connecting anything else to this unit may damage it or prevent it from operating properly, and will invalidate the warranty.
- Page 3 FFEATURES Touch Screen Operation All the operations and settings can be done by touching the LCD screen. Full Screen Digital Clock The date and time will displayed when touch a n y w h e r e o f t h e s c r e e n , a n d i t w i l l c l o s e d automatically after 3 minutes.
-
Page 5: Table Of Contents
CONTENT 1. Parts and Functions - - - - - - - - - - - - - - - - - - - - - - - - - 1 2. Installations - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 3. -
Page 6: Parts And Functions
1. Parts and Functions 2. Installations Use the screws to fix the Mounting Bracket on the wall. Screws and brackets are included with the product for this purpose. - 1 -... -
Page 7: System Connection
3. System Connection Terminals and descriptions: ● 1R Power positive. +12V present when Outdoor Station calling or being monitored. ● 2W Power negative (GND) ● 3Y Image signal (Video signal) ● 4B Talk and control signal (Audio signal) ● POWER TERMINAL: Black wire DC negative (-) ●... -
Page 8: Bus Connection
4. Bus Connection Audio Slave Mon H-set CN101 CAM 2 CAM 1 Audio Slave Mon H-set CN101 CAM 2 CAM 1 Audio H-set Slave Mon CN101 CAM 2 CAM 1 GX-3P Slave Mon Audio H-set CN101 CAM 2 CAM 1 - 3 -... -
Page 9: Multi Door Camera Connection
5. Multi Door Camera Connection Audio H-set Slave Mon CAM 2 CAM 1 Audio H-set Slave Mon CAM 2 CAM 1 Audio H-set Slave Mon CAM 2 CAM 1 - 4 -... -
Page 10: Basic Video Door Phone Operation
TALK on the screen), you can talk with the visitor for 90 seconds. During talking state, press TALK/ Intelligent Home S y s t e m MON Button (or touch )again to end the TALK conversation. If nobody answers the phone, the screen will be turned off automatically after 30 seconds. -
Page 11: Operation For Multiple Doorbell Cameras
EXIT To end the intercom conversation, press TALK/ MON. If no one answers, it will exit automatically after 30 seconds. Intelligent Home S y s t e m The doorbell function will always override the intercom function. - 6 -... -
Page 12: Ring Tone And Other Settings
The date/time page will close in 3 minutes if no Buttons are pressed. Entering the main Menu: Touch the screen or Intelligent Home S y s t e m press the MENU Button again to enter the Main Menu, press icon to enter Setup Menu. -
Page 13: Picture Memory Operations
16.2V Manufacture D1.2 Restore to default Exit Intelligent Home S y s t e m 10. Picture Memory Operations Pictures can be recorded both manually and automatically. Image capacity is about 128 play pictures. When the memory is full, the oldest monitor picture will be replaced. -
Page 14: Image And Volume Adjustment
11. Image and Volume Adjustment During monitoring or talking, press the MONITOR button, then the MENU button and the screen adjust TALK menu will be displayed. EXIT UNLOCK The ‘+’/ ‘-’ icon increases or decreases current value; press the ‘ ’ button to switch to the next adjustment 2009/02/14 10:30 item. -
Page 15: Warranty Card
4. Attempting to force the device to perform functions for which it is not intended 5. Attaching the device to power supplies other than thoserecommended by the manufacturer Distributor for Warranty purposes: Intelligent Home Online Ltd 34a High Street Hornsey London... - Page 16 IH691DM-4wire-V2 2010-11-10 The design and specifications can be changed without notice to the user. Right to interpret and copyright of this manual are preserved. www.intelligenthomeonline.com...
