Summary of Contents for Intelligent Home Luna

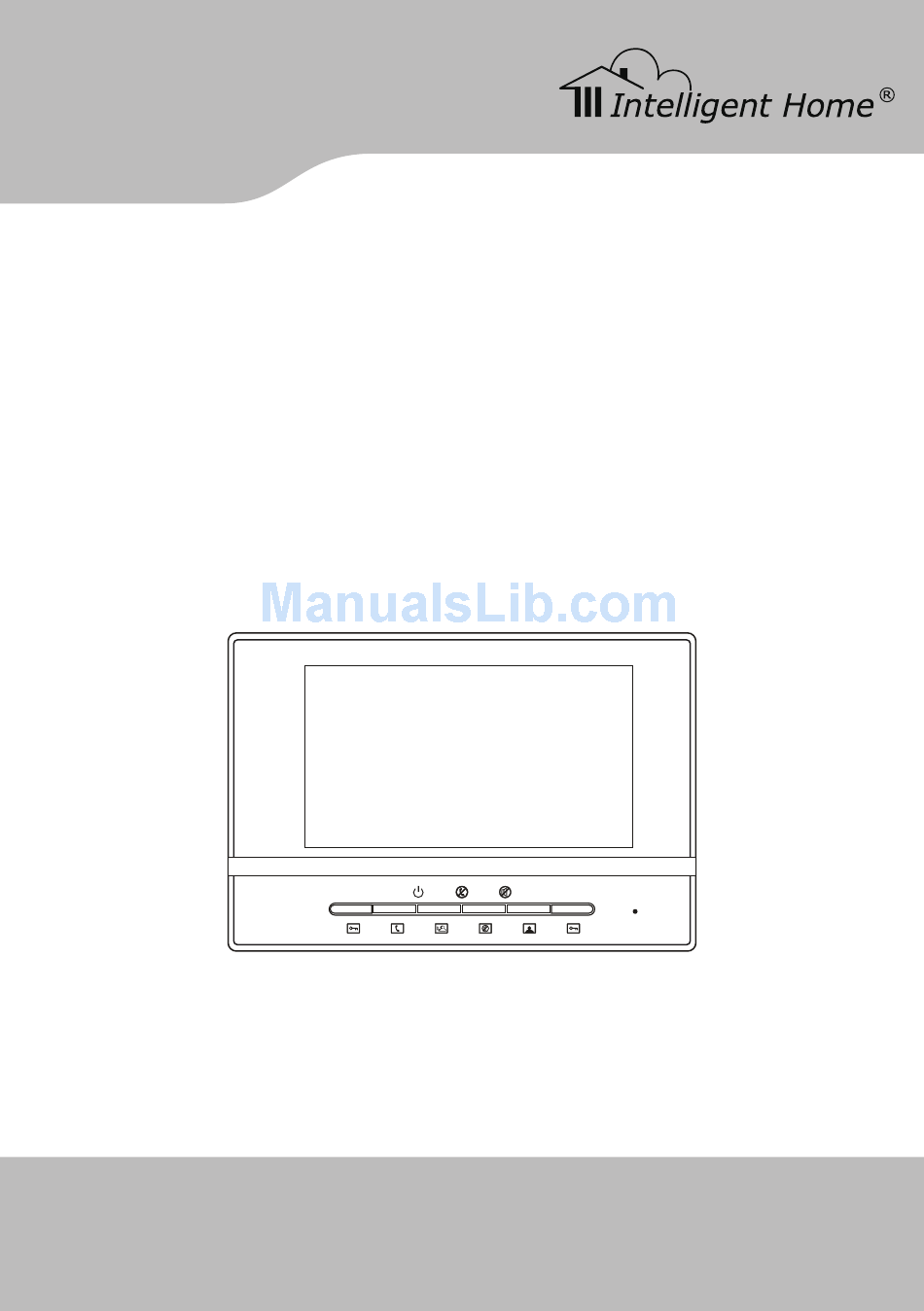

- Page 1 Video Door Entry System user manual Luna CAT-5 network cable www.intelligenthomeonline.com...
- Page 2 PRECAUTIONS ● Connect this unit ONLY to other compatible units. Do not connect it to any other type of alarm or auxiliary device. Connecting anything else to this unit may damage it or prevent it from operating properly, and will invalidate the warranty.
-
Page 3: Table Of Contents
CONTENT 1. Indoor Monitor - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 2A. Doorbell Camera(Model A) - - - - - - - - - - - - - - - - - - - 1 2B. -
Page 4: Indoor Monitor
1. Indoor Monitor Mute button Reserved Reserved Direct wall mounting Mounting with 86 box The recommended installation heights for both Monitor and Camera 145~160mm. 2A. Doorbell Camera(Model A) Speaker Night-view LED Camera Lens Name Tag Call Button Microphone Open the name tag Door/wall Mounting panel Doorbell panel... -
Page 5: Doorbell Camera(Model B)
2B. Doorbell Camera(Model B) Camera Lens Night-view LED Speaker Call Button Microphone 2C. Doorbell Camera(Model C) How to change name tag Speaker Infrared LED Camera Lens Infrared Sensor Card reader &Name tag SPEAK DOOR SPEAK DOOR OPEN OPEN CALL SERVICE CALL SERVICE Call Button... - Page 6 How to adjust camera angle Mounting on the wall - 3 -...
-
Page 7: System Connection
3. System Connection CAT-5 or CAT5E cable can be used, the maximum distance from Doorbell Camera to Monitor is 100 meters.(When over 100 meters, an extra power supply needed to be connected to the Monitor) Monitor Camera Cat-5 Cable Power supply Note 5 Note 2 Note 1... -
Page 8: Doorbell And 4 Monitors Connection
4. 1 Doorbell and 4 Monitors Connection +12V GS INDOOR GND NO NC COM out - 5 -... -
Page 9: Doorbells And 3 Monitors Connection
5. 2 Doorbells and 3 Monitors Connection - 6 -... -
Page 10: Basic Video Door Phone Operation
6. Basic Video Door Phone Operation When visitor presses the Call Button on the Outdoor Station, the monitor rings, at the same time, the screen displays the visitor image, and MESG LED turns to red. Press Button to talk to the visitor(If there is TALK Button no anwer, the system will automatically reset to standby state after 60 seconds);... -
Page 11: Mute Function
7. Mute function When you do not want to be disturbed by any calling, you can turn on the mute function. Mute button A d j u s t t h e [ R i n g V o l u m e Adjustment] to the lowest, the ring will be completely turned off, and the indicator will be turned on. -
Page 12: Remote Control(Optional)
9. Remote control(optional) 1. Key panel discriptions 2. Remarks functions - 9 -... - Page 13 3. Programming 3.1 Get into the system 3.2 Date and time - 1 0 -...
- Page 14 3.3 SERVICE Button - 1 1 -...
- Page 15 3.4 Card - 1 2 -...
- Page 16 3.5 Change password 3.6 Unlock time 3.7 Ring type 3.8 Ring volume - 1 3 -...
- Page 17 3.9 Door alarm settings (for direct call doorbell only) 3.9 Network system configure (for direct call doorbell only) - 1 4 -...
- Page 18 - 1 5 -...
-
Page 19: Warranty Card
4. Attempting to force the device to perform functions for which it is not intended 5. Attaching the device to power supplies other than thoserecommended by the manufacturer Distributor for Warranty purposes: Intelligent Home Online Ltd 34a High Street, Hornsey, London, N87NX +44 (0)20 83482040 www.intelligenthomeonline.com... - Page 20 Luna-CAT5-V1 2011-02-16 The design and specifications can be changed without notice to the user. Right to interpret and copyright of this manual are preserved. www.intelligenthomeonline.com...
