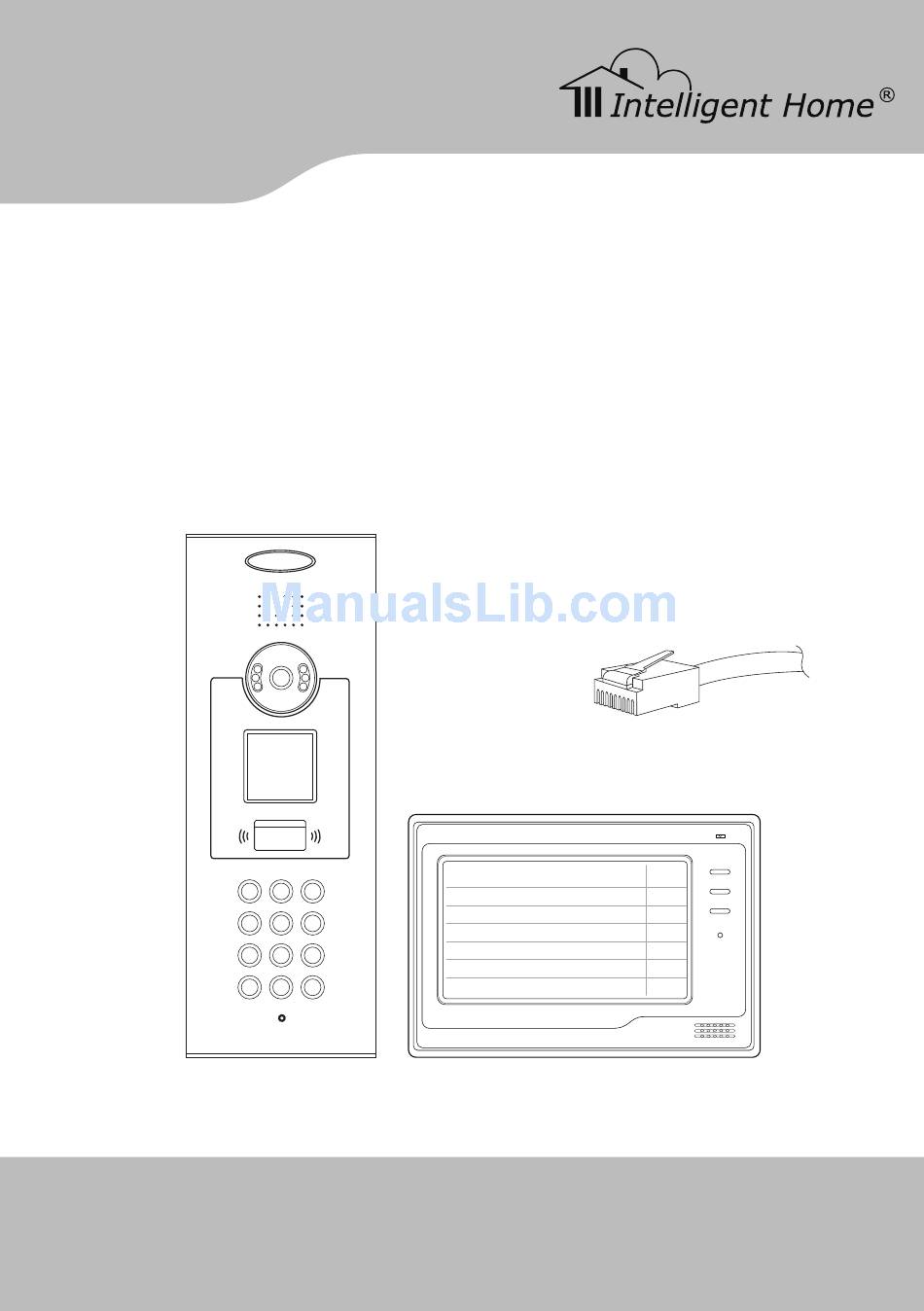

Page 1: User Manual
Video Door Entry System user manual Use Cat-5 Network Cable RF CARD CALL UNLOCK TALK/MON IN-USE This manual covers MR9L MR9L/ID Door station www.intelligenthomeonline.com... - Page 2 PRECAUTIONS ● Read this manual through before using the product. ● Slots or openings in the back of the monitor, are provided for ventilation and to ensure reliable operation of the video monitor or equipment and to protect if from overheating. These openings must not be blocked or covered. The monitor should never be placed near or over a radiator or heat register and should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.
-
Page 3: Table Of Contents
7. Door station Configurations - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8 8. Key Fob Settings (only for MR9L/ID) - - - - - - - - - - - - - - - - - - - - - - - -13 9. -
Page 4: Door Station
Microphone 1.1 Calling and Unlock Operation The MR9L Door station is a digital station with 128*128 pixels LCD screen, color CCD camera, night view LED, and digital keypad. Visitors can call the apartment by dial the Flat Code (apartment number) on the keypad. If they don’t know the Flat Code (apartment number), they can search the name list on the... - Page 5 1.2 Open the Front Panel: 1. Take off the screw cover 3. Take off the front panel 2. Screw off the screw 1.3 Mount the Door station: Cut a hole on the wall with the size of 345(H)*115(W)*38(D)mm, and wire the cable. Put the mounting box into the hole and fix it with screws.
-
Page 6: Indoor Monitor
2. Indoor Monitor 2.1 Parts and Functions LCD Touch Screen Microphone CALL CALL button UNLOCK UNLOCK button TALK/MON TALK/MON button IN-USE LED indicator Speaker Ventilation Vent Connection Port C5-MC connector 2.2 Monitor Mounting Wire the system correctly (see Connection chapter) then hang the Monitor on the Mounting Bracket firmly. -
Page 7: Distributor
3. Distributor The Distributor is used to connect Monitors to the bus line. One Distributor can connect 4 Monitors. There are two mounting measures: bar mounting or dirrect wall mounting. 140mm Trunk Bus C5-F4 distributor A/B/C/D port: Connect to Monitors Trunk Bus: Bus cable input/output. -
Page 8: Power Supply
4. Power Supply The system uses a PS-2 power supply. It provides the power for the door station, distributors, monitors and electric lock. The maximum numbers of monitors it can support is twenty. If there are more than twenty monitors in the system an additional power supply is needed. Each extra twenty monitors will require an additional PS-2 power supply . -
Page 9: System Connection
5. System Connection Connect to next C5-F4 C5-F4 C5-F4 ML-ML+ RF CARD 18 V DC lock Power Supply Doorstation - 6 -... -
Page 10: Flat Code And Time Setting
6. Flat Code and Time Setting Every Monitor must be set to a Flat Code, so that alarm the Door station can identify the Monitor. For monitor example, if a Monitor is set to a code 0101, when intercom the visitor press 0101 on the Door station, only the setup Monitor with the code 0101 will ring. -
Page 11: Door Station Configurations
7. Door station Configurations 7.1 About Flat code The Flat Code (also called monitor address) is a unique code assigned to each monitor, to identify different monitors; each monitor has a unique flat code. 7.2 About Debug Mode All settings can be changed by going into the Debug Mode. >... - Page 12 7.4 Change Admin Code (administrator password) The Admin Code is the password to access the door station Debug Mode. The default Admin Code is '66666666'. Note that if the Default Set has been applied, the Admin Code will also be set to default. >...
- Page 13 7.6 Change Door station language > > D E B U G S T A T E < < > > P r o g r a m G u i d e < < [ 9 ] A d v a n c e d C o n f i g - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -...
- Page 14 7.8 Name List function The name list can be edited by using the digital keypad of the door station. The input method is similar to mobile phones. By default the name list function is ON. > > D E B U G S T A T E < < >...
- Page 15 7.9 Using software “Online Search” is a very useful function that can help the installer to easily check the connectivity of all the Monitors. Please note, Online does not mean via the internet. In Debug Mode, press [2 #] to get into the Debug Tools, press [5] to open the “Online Search” menu, as shown below: >...
-
Page 16: Key Fob Settings (Only For Mr9L
8. Key Fob Settings (only for MR9L/ID) This chapter explains how to configure the key fob function on MR9L/ID. Please note: for the Door station without the Key Fob function (the MR9L), keep the settings by default. The key fob is used to open the lock. Total 500 key fobs can be registered with one Door station. - Page 17 When the Doors tation is standby, press [#] --> [9008] -->Password([66666666 by default]) to get into the Debug Mode Menu, then Press [# #] --> [7] Card Management -->[1] Card to get into the Add Card page as shown below. >...
-
Page 18: Connect 4 Door Stations With C5-Mds(Optional)
9. Connect 4 Door stations with C5-MDS(Optional) The C5-MDS is designed for the C5-800 apartment intercom system, to connect multiple Door stations(Maximum 4) ) in one system. A: input of the 1st doorstation B: input of the 2nd doorstation C: input of the 3rd doorstation D: input of the 4th doorstation or input of the Slave C5-MDS. - Page 19 9.2 Enable the MDS function When the Door station is standby, [ 9 ] A d v a n c e d C o n f i g press [#8009] on the Door station - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 .
- Page 20 9.4 System Connection Connect to next C5-F4 Monitor Monitor C5-F4 Distributor Monitor Monitor C5-MDS The switch should be set to Master RF CARD RF CARD RF CARD RF CARD doorstation doorstation doorstation doorstation -17-...
-
Page 21: Specifications
10. Specifications Door station: ● Power supply: DC 15~18V (supplied by PS2) ● Camera Lens: 1/3 inch color CCD ● Power consumption: Standby 0.5W; Working status 15W ● Screen: 128*128 pixels LCD ● Video signal: 1Vp-p, 75Ω, CCIR standard Distributor: ●... -
Page 23: Warranty Card
4. Attempting to force the device to perform functions for which it is not intended 5. Attaching the device to power supplies other than thoserecommended by the manufacturer Distributor for Warranty purposes: Intelligent Home Online Ltd 62 Hartley Old Road Purley, Surrey CR8 4HJ +44 (0)20 86170015 www.intelligenthomeonline.com... - Page 24 MR9L-CAT5-V2 2015-01-12 The design and specifications can be changed without notice to the user. Right to interpret and copyright of this manual are preserved. www.intelligenthomeonline.com...
