DC AUTO IRIS LENS
INSTALLATION & ADJUSTMENT

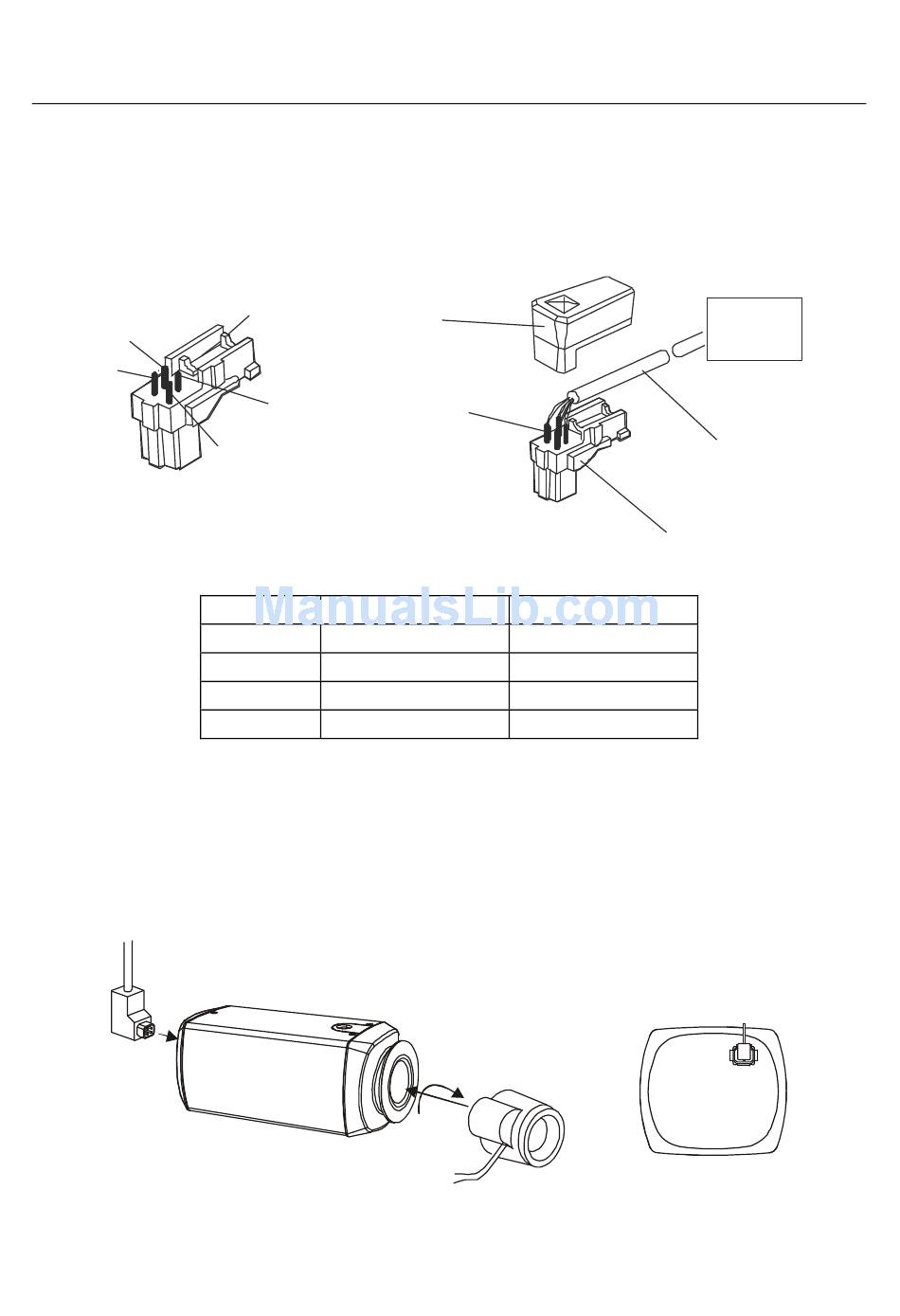

The camera supports DC-type auto iris lenses. Perform the following steps to
install and adjust a DC-type auto iris lens.
1. Solder the lens control wires to the connector supplied with the camera.
Pin 3
Pin 1
2. Attach the DC-type auto iris lens to the lens mount on the front of the
camera.
3.
Plug the connector into the auto iris jack on the back of the camera. The
connector is polarized and can only be inserted into the jack one way.
Connector
Rib
Cover
Heat
Pin 4
Shrinkable
Tubes
Pin 2
PIN NAME
1 Damp Coil -
2 Damp Coil +
3 Drive Coil +
4 Drive Coil -
Connector
WIRE COLOR
Blue
Red
White
Green
BACK VIEW
Automatic
Iris Lens
Iris Control
Cable
