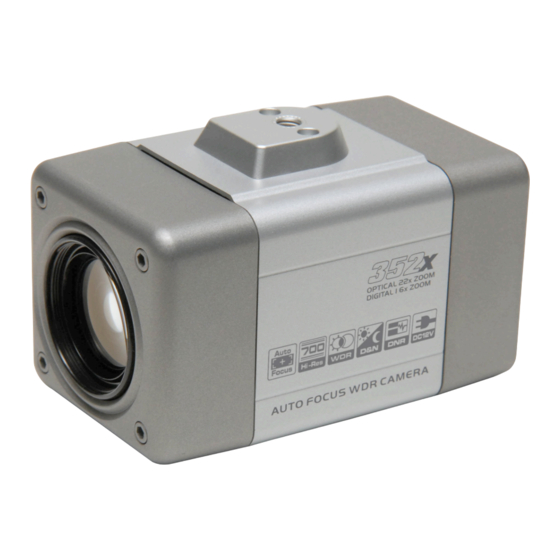

- Page 1 HIGH RESOLUTION 22x AF Zoom HCZP572W WDR Day & Night Camera Please read this manual thoroughly before use, and keep it handy for future reference.
- Page 2 WARNING AND CAUTIONS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER(OR BACK).
- Page 3 FCC COMPLIANCE STATEMENT INFORMATION TO THE USER: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL...
- Page 4 IMPORTANT SAFEGUARDS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
-
Page 5: Table Of Contents
TABLE OF CONTENTS 1. INTRODUCTION ---------------------------------------------------------------------- 6 1.1 THE CAMERA FEATURES ---------------------------------------------------- 6 2. SYSTEM INSTALLATION ----------------------------------------------------------- 7 2.1 PACKAGE CONTENTS -------------------------------------------------------- 7 2.2 OPERATION REQUIREMENTS ---------------------------------------------- 7 3. Parts Name & Function -------------------------------------------------------------- 8 4. Connection ------------------------------------------------------------------------------ 9 4.1 COLOR LEAD WIRE & COLOR DISPLAY LABEL ------------------- 9 4.2 EXTERNAL INPUT --------------------------------------------------------------- 10 4.3 EXTERNAL OUTPUT ----------------------------------------------------------- 10 4.4 RS-485 CONNECTION ------------------------------------------------------- 10... -
Page 6: Introduction
1. INTRODUCTION The 22x Auto Focus Zoom WDR Day & Night Camera provides especially for closed circuit television (CCTV) and security surveillance application. 1.1 THE CAMERA FEATURES SONY 1/4" 960H Super HAD CCD II (700 TV Lines) • 352x zooming capability (Optical : 22x / Digital : 16x) •... -
Page 7: System Installation
2. SYSTEM INSTALLATION Installation of the camera must be performed by qualified service personnel in accordance with all local national electrical and mechanical codes must perform installation of the camera. Perform the following steps to install the camera. 2.1 PACKAGE CONTENTS Camera - 1EA •... -
Page 8: Parts Name & Function
3. Parts Name & Function... -
Page 9: Connection
4. CONNECTION CAUTION : Do not connect the power cable until all other connections have been completed. If you complete the whole connection of cameras, then you have to cut the extra cable. 4.1 COLOR LEAD WIRE & COLOR DISPLAY LABEL... -
Page 10: External Input
4.2 EXTERNAL INPUT It connect to an external sensor to receive day/night detection signals. D/N MODE -> EXT • EXT-IN - OPEN : COLOR - CLOSED : B/W ALARM -> EXT • EXT-IN - OPEN : ALARM OFF - CLOSED : ALARM ON *Note: The above two settings can be selected at the same time. -
Page 11: External Lens Control
4.5 EXTERNAL LENS CONTROL 4.6 EXTERNAL A/D KEY CONTROL External Controller Circuit Schematic... -
Page 12: Camera Adjustment
5. CAMERA ADJUSTMENT 5.1 OSD MAIN SCREEN 1. Camera title 2. Status of the focus mode 3. Status of the zoom position 4. Camera ID 5.2 MAIN MENU 5.2.1 FOCUS MODE Select auto, manual, push auto mode. DISTANCE Select minimum distance in focus between camera and object. (0.1/1.0/1.5/2.5/6m) D-ZOOM Digital Zoom on/off. - Page 13 NOTE 1 : When "ZOOM PRESET" is selected, you can adjust the preset zoom location using the "tele" and "wide" buttons. NOTE 2 : When after the zoom location has been selected press the "menu" button to store the location. 5.2.2 WB (White Balance) MODE Select white balance mode.
- Page 14 -AUTO2 Auto exposure mode 2. (Use to high brightness surroundings : outdoor) -SHUT PRI Shutter priority exposure mode. -MANUAL Manual exposure mode. SHUTTER Select shutter speed. (1/60(50)~1/100K) Can be changed while in SHUT PRI and Manual mode. GAIN Gain control. (0~30DB) Digital slow shutter on/off MAX DSS Select maximum slow shutter value.
- Page 15 MODE Select alarm and MD/EXT mode. (OFF/MD/EXT/ MD+EXT) AREA SEL Select MD area number. (1~4) Select MD enable/disable. DEFAULT Set MD area as default. ADJ TOP/LEFT Adjust the location of the MD area with boundary top and left. ADJ BOT/RIGHT Adjust the location of the MD area with boundary bottom and right.
- Page 16 5.2.7 SPECIAL D/N MODE Select D/N, Color, BW. D/N DELAY Adjust the working time of the filter when D/N operated. (5,10,20 sec) HI-RES Select high resolution mode. (LOW/MID/HIGH) 2DNR Select 2D noise reduction level. (OFF/01~07) 3DNR Select 3D noise reduction level. (AUTO/01~28) becomes lower AUTO : If the motion is detected, DNR level automatically so "ghost"...
- Page 17 CAM ID Select the camera ID. (1~255) BAUD RATE Select serial communication speed. (2400/4800/9600/19200bps) PROTOCOL Select operating protocol. (FASTRAX/PELCO-P/PELCO-D/COMMAND) DISP MODE Select display mode. (ON//PUSH ON/OFF) DISP ITEM Select display item. (1~2) Camera Title and ID display. Camera Title and ID, Zoom lens position display. TITLE Select camera title menu.
-
Page 18: Troubleshooting And Maintenance
6. TROUBLESHOOTING AND MAINTENANCE 6.1 TROUBLESHOOTING If problems occur, verify the installation of the camera with the instruction in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. -
Page 19: Dimensions
7. DIMENSIONS... -
Page 20: Specifications
8. SPECIFICATIONS MODEL NTSC Power Source DC 12V ±10% POWER Power Consumption 0.3A(4W) Image Sensor 1/4" 960H Super HAD CCD II Total Pixels 1028(H) * 508(V) 1028(H) * 596(V) Scanning System 2:1 interlace Scanning Frequency 15.734KHz(H), 59.94Hz(V) 15.625KHz(H), 50Hz(V) Sync. System Internal Resolution 700 TV lines... - Page 21 Focus Mode Auto / Manual / Push AF Distance 0.1M / 1.0M / 1.5M / 2.5M / 6.0M Zoom Ratio Optical x22, Digital x16 Zoom (Video AF) Focus Length f = 3.9 mm ~ 85.8 mm Aperture Ratio F1.6 (wide) ~ F3.7 (tele) Angle of View Horizontal : 49.5 degree (wide) / 2.4 degree (tele) Power Input...
