Fuel transfer pump

Advertisement

Quick Links

INTRODUCTION

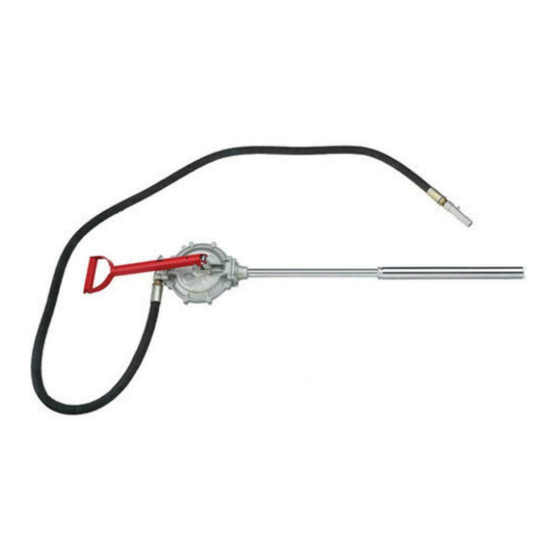

Thank you for purchasing this CLARKE Double Diaphragm Fuel Transfer Pump,
This pump is designed for use with non-corrosive petroleum based products of light to medium viscosity such as petrol,
diesel,fuel oil and motor oils. It should not be used with solvents,acids,alkalis,or other corrosive liquids
Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully.

SAFETY

To ensure safe and efficient operation, it is essential to read and follow each of these warnings and precautions.
1. When used to pump flammable liquids, improper use or installation of this product can cause serious bodily injury or
death.
2. Do NOT smoke near the pump or use the pump near an open flame. Fire could result.
3. When pumping flammable liquids, all equipment must be grounded to prevent the build up of static electricity
which may ignite vapours or gases. The pump and containers should be connected using bonding clamps or clips
and a conductive wire no smaller than 12 gauge. A secure and positive metal to metal contact must be made. The
other end of the wire should be attached to a good ground, such as a steel building column or water pipe.

SPECIFICATIONS

Barrel Collar Size
Inlet Tube Diameter

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12 months from the date of
purchase. Please keep your receipt which will be required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not
used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior
permission.
This guarantee does not effect your statutory rights.
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
Fuel Transfer Pump
2" BSP
26 mm
Outlet Tube Diameter
Product Weight
MODEL NO: CDDFTP
PART NO:
PART NO: 6499680
27 mm
5.6 kg

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDDFTP and is the answer not in the manual?

Questions and answers

Summary of Contents for Clarke CDDFTP

  • Page 1 Fuel Transfer Pump INTRODUCTION Thank you for purchasing this CLARKE Double Diaphragm Fuel Transfer Pump, This pump is designed for use with non-corrosive petroleum based products of light to medium viscosity such as petrol, diesel,fuel oil and motor oils. It should not be used with solvents,acids,alkalis,or other corrosive liquids Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully.
  • Page 2 ASSEMBLY WHAT IS SUPPLIED ASSEMBLED FITTING THE PUMP TO A BARREL 1. Assemble the pump as shown above. Use PTFE tape (not supplied) at all connections 2. Screw the threaded collar into the opening of the barrel. 3. Tighten the collar bolt to the pump body. USING THE PUMP 1.
