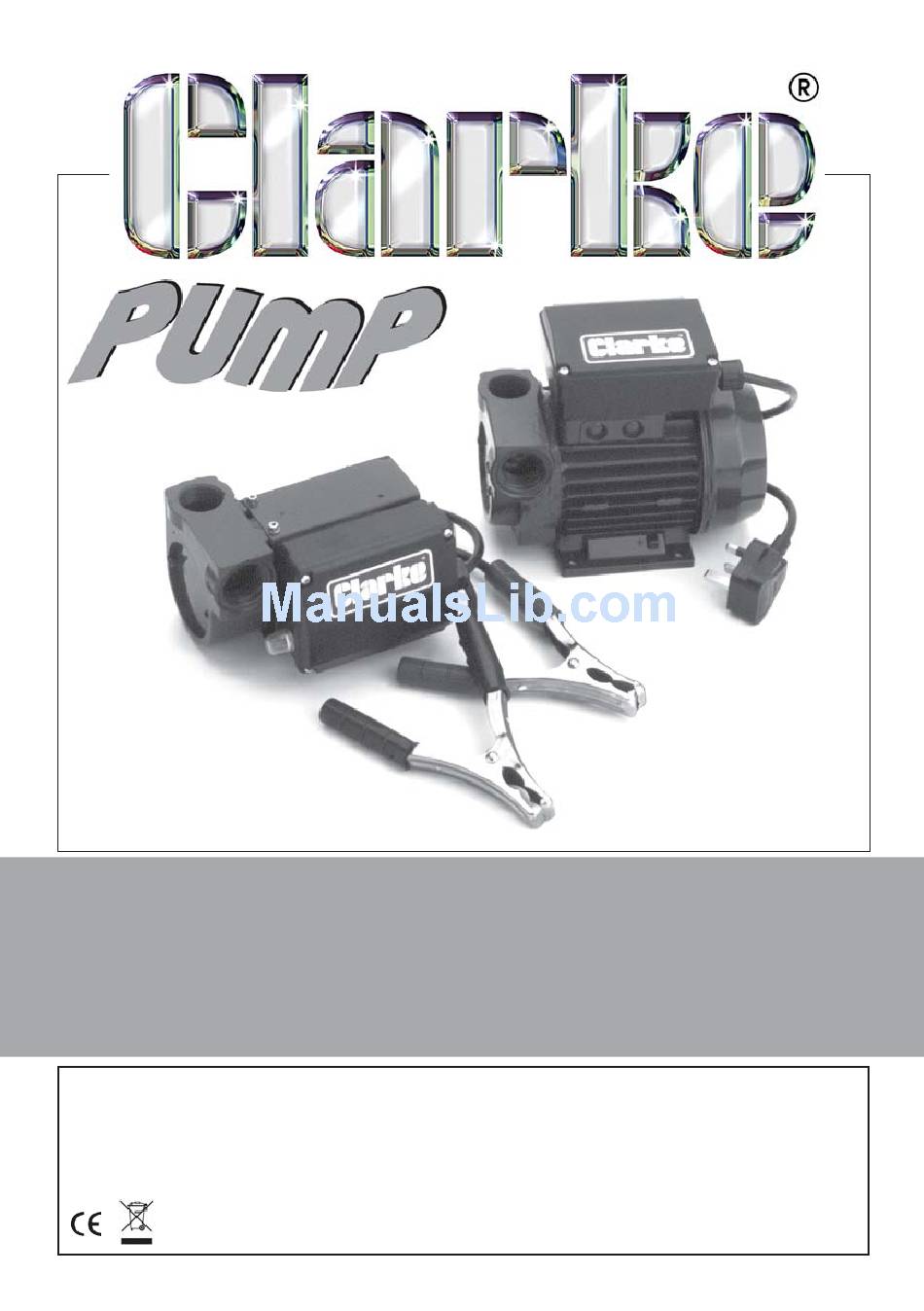

- Page 1 FUEL TRANSFER PUMP Model Nos. CFT12, CFT24 &CFT230 PART NOS: 7160010, 7160020 & 7160030 INSTALLATION & OPERATING INSTRUCTIONS ORIGINAL INSTRUCTIONS GC05/18 REV 5...
-
Page 2: Specification
INTRODUCTION Thank you for purchasing this CLARKE Pump. The CFT pump is designed only for use with diesel fuels. It must not be used with water, petroleum fuels, alcohol or lubricating oils, nor if small solids are known to be in suspension in the fuel. -
Page 3: General Safety Rules
When using a cable reel, always unwind the cable completely. We strongly recommend that the CFT230 pump is connected to the mains supply via a Residual Current Device (RCD). -
Page 4: Environmental Protection
SERVICE 1. When necessary, have your pump serviced or repaired by a qualified person using identical replacement parts. This will ensure that the safety of the product is maintained. ENVIRONMENTAL PROTECTION Take care to ensure that if diesel fuel is spilt on the roadway or any place likely to cause a hazard to passing vehicles, that it is cleaned away using sand or treated with absorbant granules designed for the purpose. - Page 5 CFT230 MODELS WARNING! Read these electrical safety instructions thoroughly before connecting the product to the mains supply. Before switching the machine on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate using 230 VAC mains power.
-
Page 6: Installation
INSTALLATION Firmly screw the inlet adapter provided into the inlet port, ensuring it is adequately sealed. Attach an inlet hose (not supplied) using a worm drive clip, or similar, ensuring the joint is airtight. The Inlet port has an arrow embossed on the housing showing the direction of flow. -
Page 7: Thermal Overload Protection
Store the pump in dry conditions protected from the weather. For any problems requiring the dismantling and overhaul of the saw, contact your CLARKE International Service Department on 020-8988-7400. Spare parts are available as shown in the diagrams on the following pages. -
Page 8: Wiring Diagrams
WIRING DIAGRAMS Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 9 COMPONENT PARTS CFT12 & CFT24 Item Description Part No. Pump Body GM8400 By-pass GM5478 Retaining Ring GM8481 Diode GM9440 Switch GM7513 Outlet Adaptor GM1073 Switch Box GM6628 Cover GM8463 O-Ring GM8472 Blade GMF069 GMF070 Rotor Blade Holder GMF068 12 Volt Motor GMF066 24 Volt Motor GMF067...
- Page 10 COMPONENT PARTS CFT230 Item Description Part No Pump Body GM8401 By-pass GM5478 Capacitor GM7355 230V Overload Protector GM9439 Capacitor Housing GM6628 Switch GM7513 Tie Rod GM8488 Power Cable with plug GM9448 Elastic Washer GM6647 Fan Cover GM7258 GM7257 Rear Motor Cover...
-
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com...
