Summary of Contents for CYP CRS-232

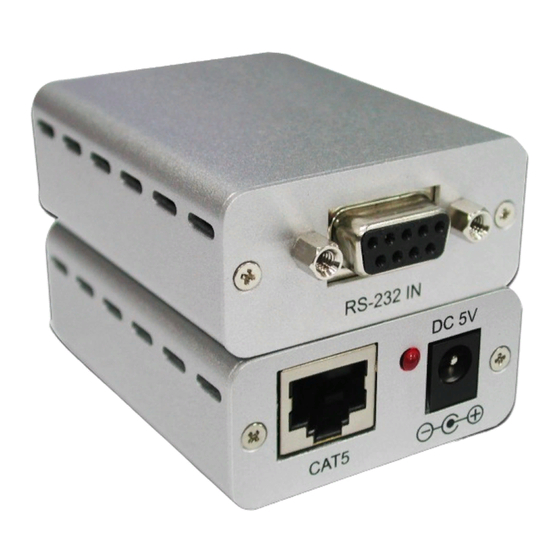

- Page 1 CRS-232 Transmitter and CAT5 / RS-232 Receiver Extender Box Operation Manual CRS-232...
- Page 2 Preliminary Release Precautions Failure to follow the precautions described below may cause damage to CRS-232 Extender Box and void the warranty. DO NOT open the case. Doing so will void the warranty. If you find problem with it, please return back to your retailer or seller who will assist you or provide you with solution.
- Page 3 Table of Contents Introduction …………………………………………........ Applications......…………………………………………… Package Contents.....………………………………………………. System Requirements.....…………....…………………….. Features ......……………………………………………….. Operation Controls and Functions....………………….……….. 6.1 TX Front Panel & TX Rear Panel..........… 6.2 RX Front Panel & RX Rear Panel........……… Connection and Installation.............. Specifications..................
-
Page 4: Package Contents
2. Applications • System installation. • Control RS-232 devices from far away. • System upgrading. 3. Package Contents • CRS-232 Transmitter. • CRS-232 Receiver. • 5V DC power adaptor. • Operation Manual. 4. System Requirements • Input PC/laptop equipment, DB 9 female to male cable x 2, CAT 5 cable and output source device. - Page 5 6. Operation Controls and Functions 6.1 TX Front Panel TX Rear Panel DC 5V RS-232 IN CAT5 ① ② ③ Connect a PC/laptop ‘ s main control system with a DB 9 female to male cable in order to send protocol to the source device. Connect a CAT 5 cable up to 250M away and link it to the Receiver.
- Page 6 7. Connection and Installation External Box Null Modem Modem Cable CAT5 Cable Transmitter Receiver...
- Page 7 8. Specification Input Port RS232 D-Sub-9 female CAT 5 Output Port RS232 D-Sub-9 male CAT 5 Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 50(W) x 67(H) x 23(D) / each Weight (g) 80 / each Chassis Material Aluminum Silkscreen Color Silver...
- Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20090219 MPM-CRS232TXRX...
