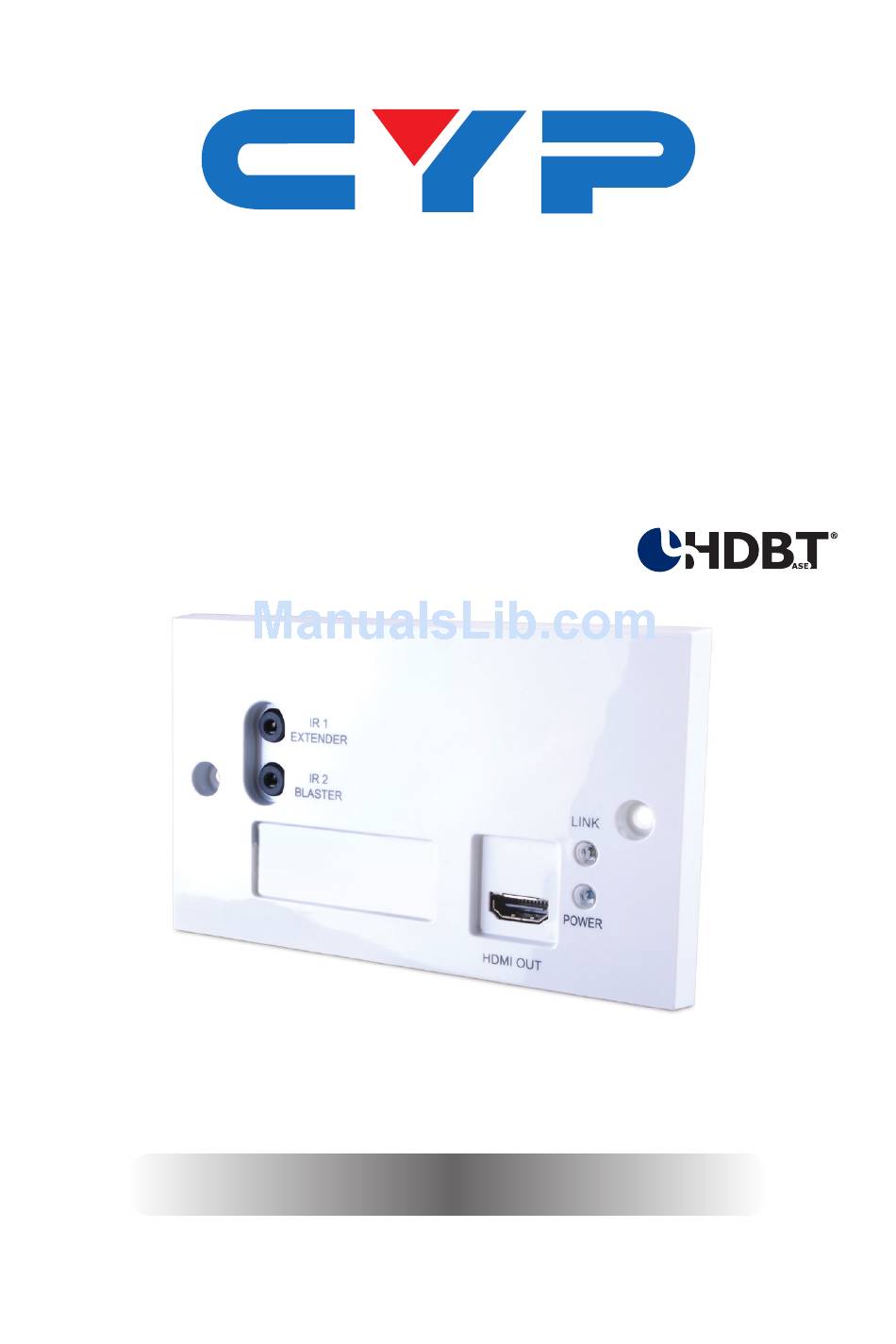

- Page 1 CH-507RXWPL HDMI over Single CAT5e/6/7 Wall-plate Receiver Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Receiver Front Panel ......3 6.2 Receiver Rear Panel ......4 6.3 IR Cable Pin Assignment....4 7. -
Page 6: Introduction
1. INTRODUCTION The HDMI over Single CAT5e/6/7 Wall-plate Receiver is designed to receive uncompressed video, audio and IR control data from a compatible transmitter over a single run of CAT5e/6/7 cable at a distance of up to 60 meters. It has the added benefit of control through the built-in IR ports. -
Page 7: Features
5. FEATURES • HDMI with 3D, 4K2K support, HDCP and DVI compliant • Simultaneous tranmisson of uncompressed data over a single 60m CAT5e/6/7 cable (35m for 4K2K signals) • Uncompressed video support up to 1080p@60 Hz/36-bit • High definition audio support up to LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio •... -
Page 8: Operation Controls And Functions

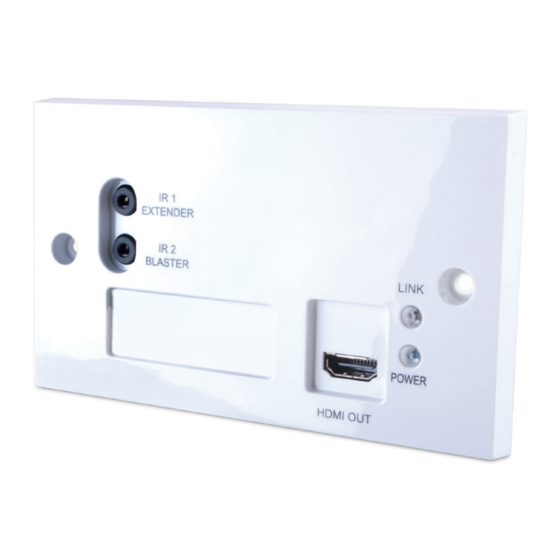

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Receiver Front Panel IR 1 EXTENDER IR 2 BLASTER LINK POWER HDMI OUT IR 1 EXTENDER: Connect an IR Extender cable for IR signal reception. Signals received will be transmitted to the transmitter unit. Ensure that the remote being used is within the direct line-of- sight of the IR Extender. -
Page 9: Receiver Rear Panel
6.2 Receiver Rear Panel CAT5e/6/7 IN: Connect to the transmitter unit with a single CAT5e/6/7 cable for transmission of all data signals. 6.3 IR Cable Pin Assignment IR Blaster Power IR Blaster Signal IR Extender IR Signal Power Ground... -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM Option 1: Point to Point DVD/Blu-ray Player 1.5m 60° HDMI 60° Input IR Blaster IR Extender Power Supply IR2 Extender Compatible HDMI In RS232 In IR1 Blaster Transmitter DC 24V unit with PoC Power Link Lite CAT 5e /6 Out Single Note: The receiver is CAT5e/6/7... -
Page 11: Option 2: Matrix System
Option 2: Matrix System TV/Display Extender HDMI 1.5m Output 60° IR Blaster 60° IR 1 EXTENDER IR 2 BLASTER LINK POWER HDMI OUT Single Internet CAT5e/6/7 Router Cable Up to 7 Other Zones HDBaseT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT... -
Page 12: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 300 MHz/10.2 Gbps Input Ports 1×CAT5e/6/7, 1×IR Extender Output Ports 1×HDMI, 1×IR Blaster ESD Protection Human-body Model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) IR Frequencies 20~60 kHz (under optimal conditions) Dimensions 145.7 mm (W)×85.7 mm (D)×36.5 mm (H)/ Jacks Excluded 145.7 mm (W)×85.7 mm (D)×39.5 mm (H)/... -
Page 13: Cat5E/6/7 Cable Specification
8.2 CAT5e/6/7 Cable Specification Cable Range Pixel Clock Video Data Supported Video Type Rate Rate CAT5e/6/7 60 m ≤225 MHz ≤5.3 Gbps Up to 1080p, 60 Hz, (HD Video) 36-bit 3D (Data rates lower than 5.3 Gbps or below 225 MHz TMDS clock). - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
