Summary of Contents for CYP CH-730RX

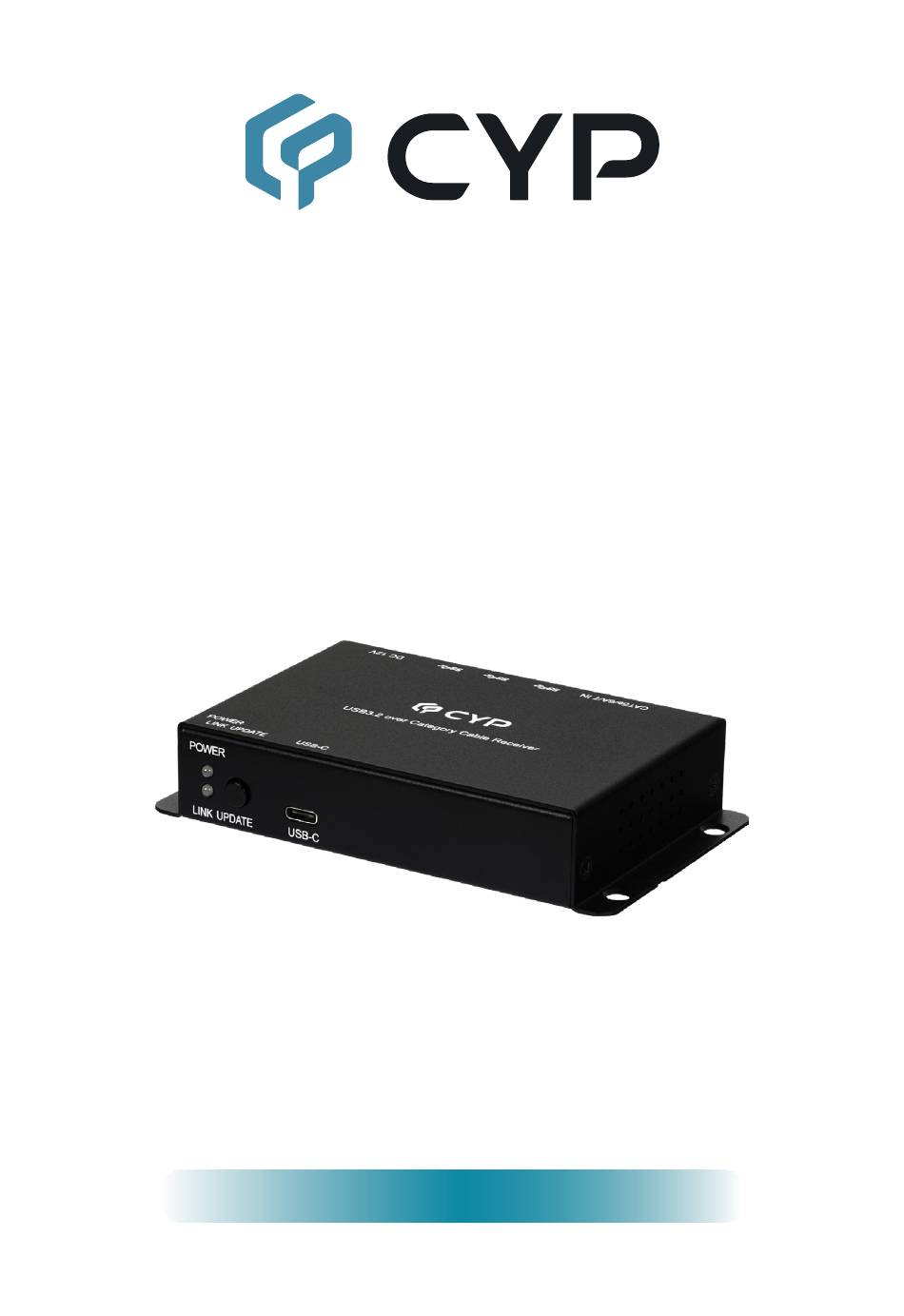

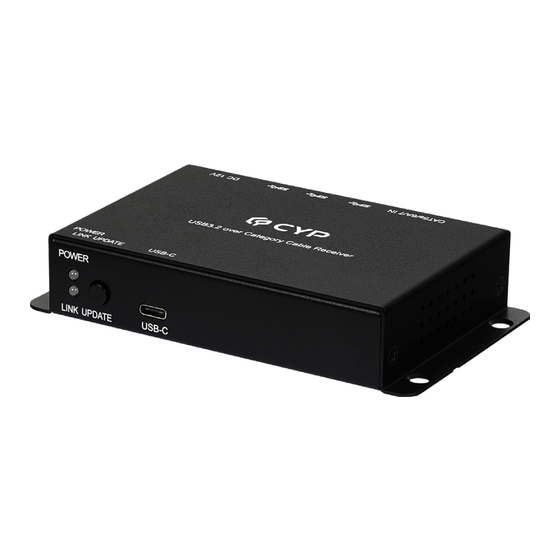

- Page 1 CH-730RX USB 3.2 over Category Cable Receiver Operation Manual Operation Manual Ver 1.01...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Version History
VERSION HISTORY REV. DATE SUMMARY OF CHANGE Ver 1.00 2024/5/6 Initial Release Ver 1.01 2024/8/15 Modified USB 3.2 Host Port to USB 3.2 Device Port in Section 6.1... -
Page 6: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications ............. 1 3. Package Contents ........... 1 4. System Requirements ........1 5. Features............1 6. Operation Controls and Functions ....2 6.1 Front Panel ..........2 6.2 Rear Panel........... 3 7. Connection Diagram ........4 8. -
Page 7: Introduction
1. INTRODUCTION This USB 3.2 Gen1 extender set is designed to extend signal from one USB host to multiple USB devices for up to 100 meters (328 feet) when paired with the transmitter from the homologous series. This receiver enables users to extend up to 4 USB 3.2 devices remotely, such as flash drives, keyboards and USB cameras. -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER LINK UPDATE USB-C POWER LED: This LED will illuminate to indicate the unit is on and receiving power. LINK LED: This LED will illuminate solidly when a live connection with a compatible transmitter is active. -
Page 9: Rear Panel
6.2 Rear Panel CAT5e/6A/7 IN DC 12V CAT 5e/6A/7 IN Port: Connect to a compatible transmitter with a single cable for transmission and reception of all data signals. USB 3.2 Device Port (Type-A): Connect directly to standard USB devices such as a mouse, keyboard or flash drive to extend their USB functionality to the host currently connected to the transmitter’s USB port. -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM USB Storage PC/Laptop Output Input Power Supply POWER LINK UPDATE USB-C DC 12V CAT5e/6A/7 OUT CAT5e/6A/7 Cable POWER Power LINK UPDATE USB-C Supply CAT5e/6A/7 IN DC 12V USB Output Output Mouse and Keyboard USB Storage USB Hub Webcam... -
Page 11: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications USB-C Bandwidth 5Gbps HDBaseT Bandwidth 6Gbps Input Ports 1×Cat.5e/6A/7 (RJ-45) Output Ports 1×USB 3.2 (Type-C) 3×USB 3.2 (Type-A) Power Supply 12V/3A DC (US/EU standards, CE/FCC/UL certified) ESD Protection (HBM) ±8kV (Air Discharge) ±4kV (Contact Discharge) Dimensions (W×H×D) 128mm×25mm×75mm [Case Only] 128mm×25mm×83.5mm [All Inclusive]... -
Page 12: Cable Specifications
8.2 Cable Specifications USB 3.2 Cable Length 5Gbps Ethernet Cable Cat.5e/6 Cat.6A/7 100m 8.3 HDBaseT Features HDBaseT Feature Set Receiver Video & Audio Extension Unsupported LAN Extension Unsupported Send power to Receiver Unsupported Accept power from Receiver Unsupported IR Extension Unsupported RS-232 Extension Unsupported... -
Page 13: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6A Augmented Category 6 cable Cat.7 Category 7 cable Mbps Megabits per second Gbps Gigabits per second Powered Device Power Sourcing Equipment USB Audio Class Universal Serial Bus USB Video Class... - Page 16 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
