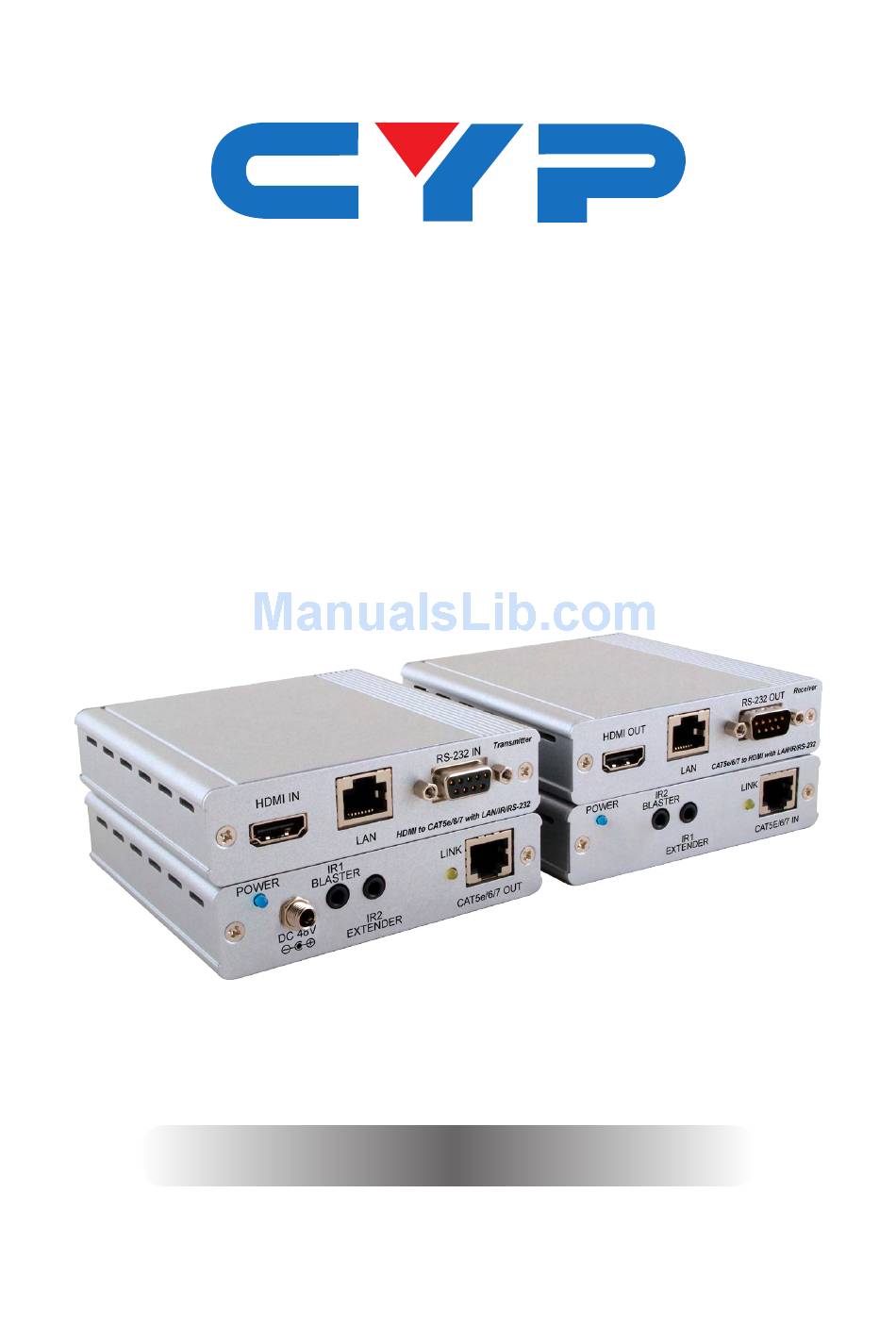

Page 1: Operation Manual
CH-1507TX & RX HDMI to CAT5e/6 with LAN/IR/RS-232/PoE Operation Manual Operation Manual... -
Page 2: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Transmitter Front and Rear Panels ..3 6.2 Receiver Front and Rear Panels ..4 6.3. -
Page 5: Introduction
1. INTRODUCTION The HDMI with RS-232 over Single CAT5e/6/7 Transmitter and Receiver set can send uncompressed audio/video over a single run of CAT5e/6/7 cable up to 100 m with 48V PoE from Transmitter (PSE) to Receiver (PD) side and the added benefit of control through the built- in RS-232 and IR ports and a bi-directional LAN connection. -
Page 6: Features
5. FEATURES • HDMI with 3D, 4K×2K support, HDCP & DVI Compliant • Supports CEC bypass • Simultaneous transmission of uncompressed data over a single 100 m/328 ft CAT5e/6/7 cable • Uncompressed video 1080p, 60 Hz, 36-bit • Audio support up to 7.1CH & Dolby TrueHD, DTS-HD •... -

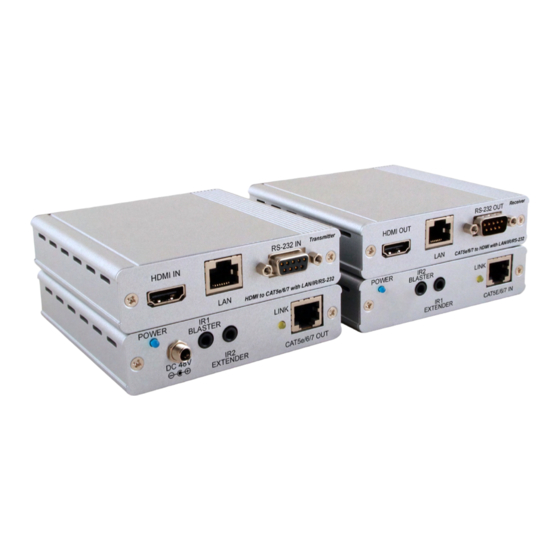

Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels Front Rear POWER Transmitter RS-232 IN BLASTER HDMI IN DC 48V EXTENDER HDMI to CAT5e/6/7 with LAN/IR/RS-232 HDMI In: Connect to HDMI source equipment such as a DVD or Blu- ray player. -
Page 8: Receiver Front And Rear Panels
6.2 Receiver Front and Rear Panels Front Rear POWER Receiver RS-232 OUT BLASTER HDMI OUT EXTENDER CAT5e/6/7 to HDMI with LAN/IR/RS-232 HDMI Out: Connect to a HDMI equipped TV/monitor for display of the HDMI input source signal. LAN: Connect to a PC or Laptop to the Internet or network connection. -
Page 9: Ir Cable Pin Assignment
6.3. IR Cable Pin Assignment IR Blaster Power 3.3V IR Blaster Signal IR Signal IR Extender Power 3.3 V Grounding 6.4. D-Sub 9 Pin Definitions Define TX / RX TxD / RxD RxD / TxD... -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player Internet Modem or Router 1.5m HDMI CAT5e/6 60° RS-232 IR Blaster Power Supply Transmitter RS-232 IN HDMI IN HDMI to CAT5e/6/7 with LAN/IR/RS-232 POWER BLASTER 60° DC 48V EXTENDER RS-232 Equipped IR Extender PC or Notebook IR Extender 60°... -
Page 11: Specifications
8. SPECIFICATIONS Video Bandwidth 300MHz / 10.2Gbps Ethernet Speed 100 Mbps Transmitter Inputs 1×HDMI, 1×IR Extender,1×RS-232, 1×LAN Outputs 1×CAT5e/6/7, 1×IR Blaster Receiver Inputs 1×CAT5e/6/7, 1×IR Extender Outputs 1×HDMI, 1×RS-232, 1× IR Blaster, 1× LAN HDMI In/Out Cable In: Up to 15 M/1080p@8-bit or 6M/1080p@12-bit Distance Out: Up to 15M/1080p@8-bit or... -
Page 12: Cat5E/6/7 Cable Specification
Storage Temperature −20 °C~60 °C/−4 °F~140 °F Relative Humidity 20~90 % RH (non-condensing) 8.1 CAT5e/6/7 Cable Specification Cable Range Pixel clock Video Data Supported Video Type rate Rate CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, 36 bits, (HD Video) 3D (data rates lower than 5.3... - Page 13 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20130524 MPM-CH1507...
