- Page 1 CWHDI-TX1 & RX1 Wireless HDMI Transmitter and Receiver Box Operation Manual CWHDI-TX1 & RX1...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction................2. Features..................3. Package Contents..............4. Operation Controls and Functions.......... Transmitter side..............4.1.1 Front Panel..............4.1.2 Rear Panel............... Receiver side..............4.2.1 Front Panel..............4.2.2 Rear Panel..............5. Remote Control................. 6. IR Cable Pin Definitions............6.1 IR Blaster................6.2 3.5Ø... -
Page 3: Introduction
1. Introduction Looking for a way to send an HDMI signal but don’t want to go through the hassle of routing wires through your home or office? Well the wireless HDMI transmitter and receiver boxes with baseband technology and a Wireless High Definition Interface (WHDI) are your answer to a wire free world. -
Page 4: Operation Controls And Functions

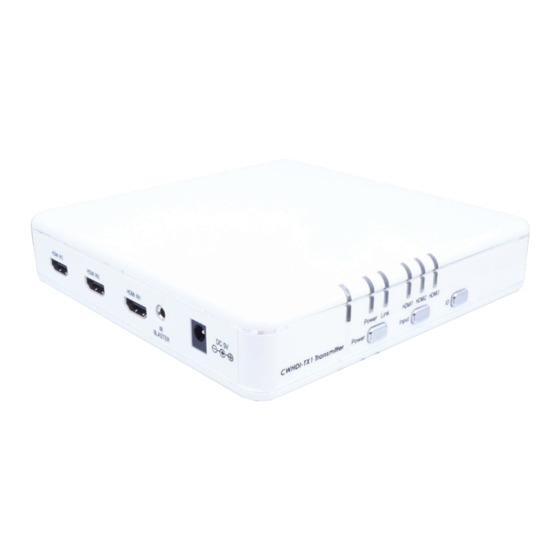

4. Operation Controls and Functions Transmitter side 4.1.1 Front Panel Power Link HDMI1 HDMI2 HDMI3 CWHDI-TX1 Transmitter Power Input ① Power: Press to turn the system on or off. ② Input: Press to select input source (1/2/3). ③ ID: Press transmitter “ID” button and receiver “ID” button for 2 seconds to connect the systems. -
Page 5: Rear Panel
4.1.2 Rear Panel HDMI IN3 HDMI IN1 HDMI IN2 DC 5V BLASTER HDMI 1/2/3 Inputs: Connect each of the input ports to the HDMI output ① of your source equipment such as DVD/Blu-Ray player or set-top-box. IR Blaster: Connect the IR blaster cable included in the package and ②... -
Page 6: Rear Panel
the ID button for more than 10 seconds to switch to a different mode (Broadcast/Unicast). When the LED is green it means switch to Unicast mode and when it is Red, it means switch to Broadcast Mode. The factory default is Unicast mode and it is suggested to use this mode for household use. -
Page 7: Remote Control
5. Remote Control ①. Power: Press to turn the device on or off. POWER ① ②. ID:Press the transmitters “ID” button and ② INPUT receiver “ID” button for two seconds to ③ connect the system. This system was already connected before leaving the factory so users don't need to reset it again unless the system cannot link up properly. -
Page 8: Connection And Installation
7. Connection and Installation 7.1 Unicast mode HDMI Cable HDMI Cable LCD TV Blu-Ray 7.2 Broadcast mode HDMI Cable LCD TV Blu-Ray LCD TV 7.3 Remote Control distance LCD TV 30˚ 30˚ 30˚ POWER POWER INPUT INPUT Transmitter CR-67 Transmitter CR-67... -
Page 9: Specifications
8. Specifications Radio Power Transmit power is configurable up to 60mW (+17dBm) Video Resolutions (Partial List) 480i/p, 576i/p, 720p, 1080i, VGA@60/72, SVGA@60/72, XGA@60/70 and 1080p(24fps/30fps) 4.9 ~ 5.9GHz Frequencies Supported OFDM MIMO with WHDITH video-modem Modulation Technology Bandwidth 20MHz Data Rates 1.5Gbps Wireless Range 20 meters operating distance... -
Page 10: Troubleshooting
9. Troubleshooting Situation Check Point 1. Check if the right adaptor is used (5V 2.6A adaptor). Power LED does not turn 2. Make sure all power connectors are correctly on when power is on. plugged in. 3. Push the power button to turn on the device. 1. - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20090629 MPM-CWHDI-TX1 & RX1...
