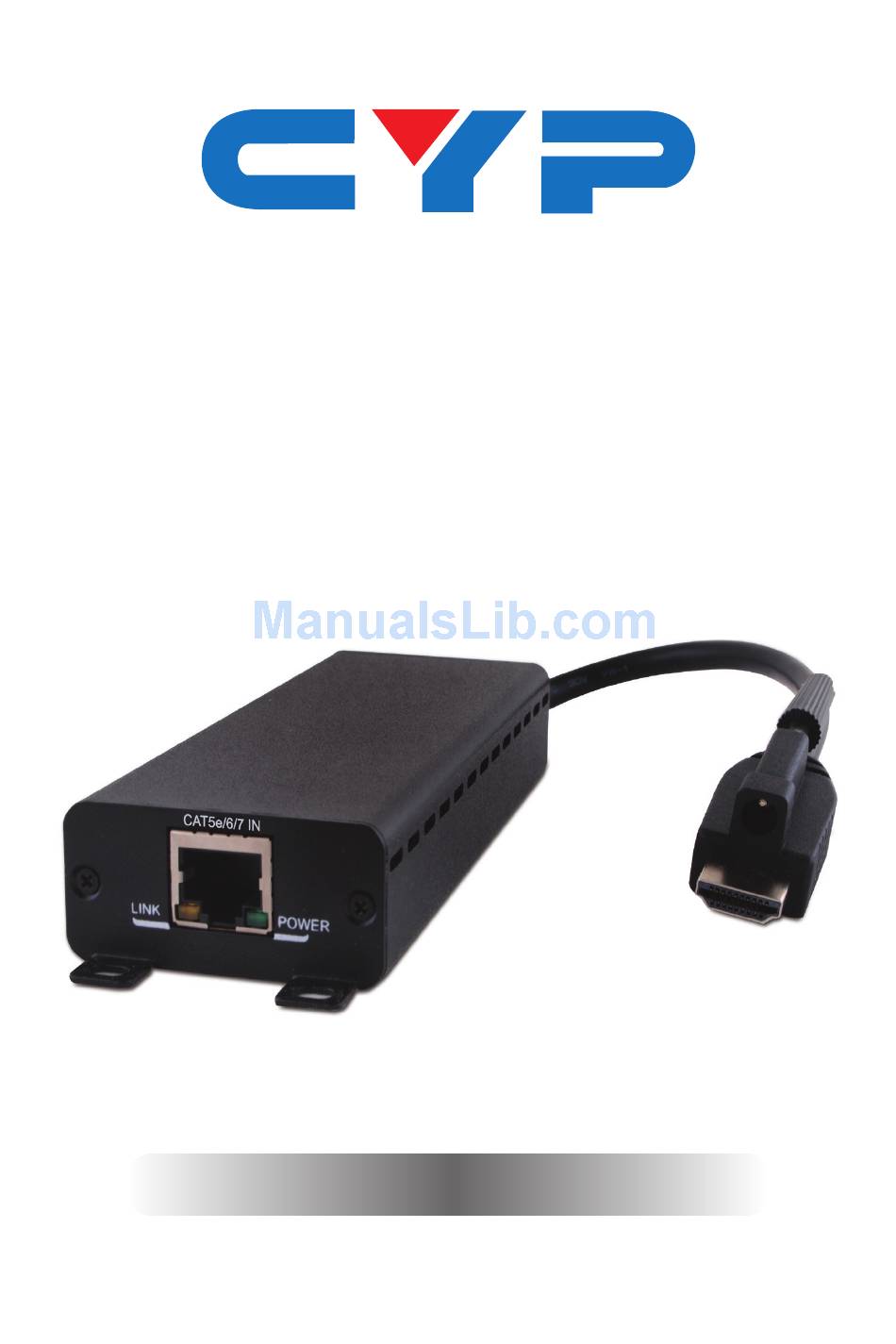

Page 1: Operation Manual
CH-515RXPT HDMI over Single CAT5e/6/7 Receiver with LAN/PoE Operation Manual Operation Manual... -
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel .........2 6.2 Rear Panel .........3 7. Connection Diagram ......4 8. -
Page 6: Introduction
1. INTRODUCTION The CH-515RXPT Receiver can receive uncompressed audio/video and IP data over a single run of CAT5e/6/7 cable up to distances of 100m. It has the added benefit of a bi-directional LAN serving, allowing devices such as a Smart TV or games consoles to share an Internet connection. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel CAT5e/6/7 IN LINK POWER CAT5e/6/7 IN Connect to the transmitter unit with a Single CAT5e/6/7 cable for transmission of all data signals. LINK LED The yellow LED will illuminate when both the input and output signals are connected through the CAT cable. -
Page 8: Rear Panel
6.2 Rear Panel HDMI OUT HDMI OUT Connect to a HDMI equipped TV/monitor for display of the HDMI input source signal. The LAN connection can be used to share a network or internet connection to a PC/Laptop or Smart TV that is connected to the receiver or can be connected to a network link to provide network/internet service to the transmitter (LAN equipped transmitters only) -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM Blu-ray Player Internet Connected Router HDMI Input Power Supply for Power-over-Ethernet (Example shown: IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT... -
Page 10: Specifications
8. SPECIFICATIONS Video Bandwidth 340 MHz/10.2 Gbps Ethernet Speed 100 Mbps Input Port 1×CAT5e/6/7 Output Ports 1×HDMI, 1×LAN (RJ45) HDMI Output Up to 10 meters Cable Distance CAT5e/6 Input Up to 100 meters Cable Distance HDMI Adaptor Length 0.45 m Resolutions Support 480i~1080p@50/60, 1080p@24, 4K2K &... -
Page 11: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable CAT7 Category 7 Cable Consumer Electronic Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High Definition Multimedia Interface Power over Ethernet 4K2K UltraHD (3840×2160/4096×2160) - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-DCT23...
