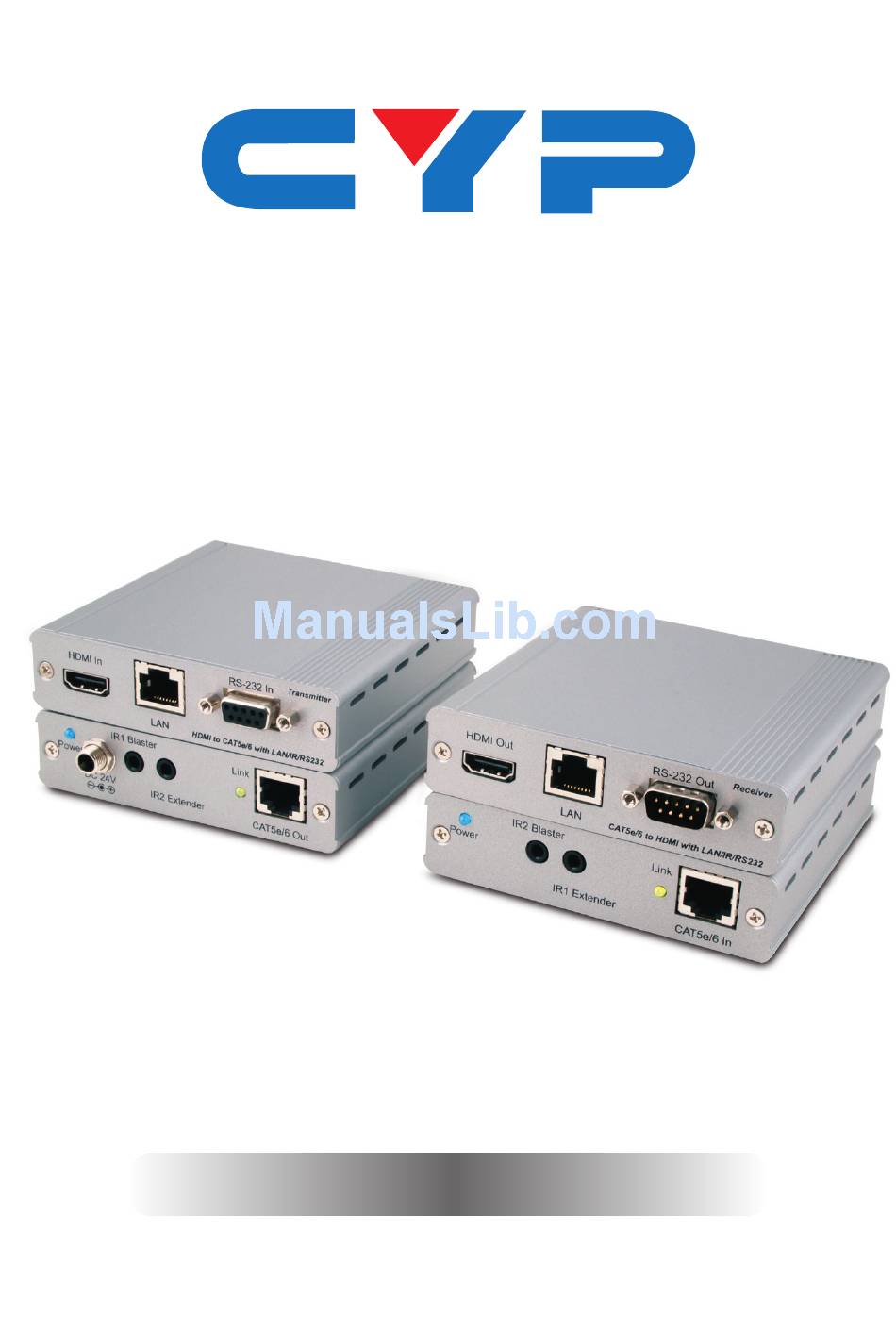

Page 1: Operation Manual

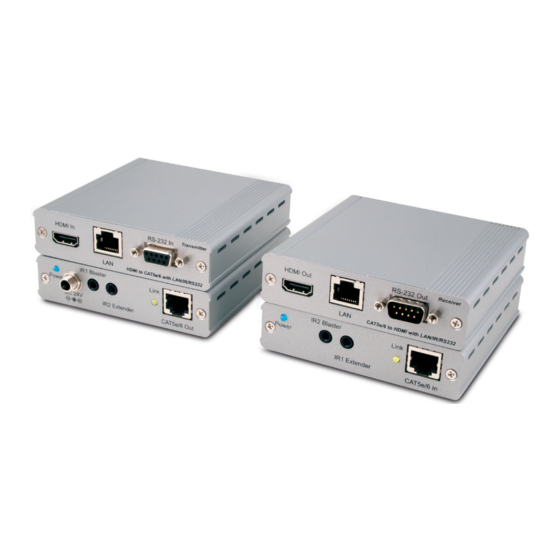

CH-507TX & RX HDMI to CAT5e/6 with LAN/IR/RS-232 Operation Manual Operation Manual... -
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Transmitter Front and Rear Panels ..3 6.2 Receiver Front and Rear Panels ..5 7. -
Page 6: Introduction
1. INTRODUCTION The HDMI with RS-232 over Single CAT5e/CAT6 transmitter and receiver set can send uncompressed audio/video over a single run of CAT5e/6 cable up to 100m with POE feature and the added benefit of control through the built-in RS-232 and IR ports and a bi-directional LAN connection. -
Page 7: Features
5. FEATURES • HDMI 1.4 with 3D, 4k×2k support, HDCP & DVI Compliant • Supports CEC bypass • Simultaneous transmission of uncompressed data over a single 100 m/328 ft CAT6/CAT5e cable • Uncompressed video 1080p, 60 Hz, 36-bit • Audio support up to 7.1CH & Dolby TrueHD, DTS-HD •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels Front Rear Transmitter IR1 Blaster RS-232 In HDMI In Power DC 24V IR2 Extender HDMI to CAT5e/6 with LAN/IR/RS232 HDMI In Connect to HDMI source equipment such as a DVD or Blu-ray player. - Page 9 Link LED The yellow LED will illuminate when both the input and output signals are connected. CAT5e/6 Out Connect to the reciever unit with a Single CAT5e/6 cable for tranmission of all data signals.
-
Page 10: Receiver Front And Rear Panels
6.2 Receiver Front and Rear Panels Front Rear Receiver IR2 Blaster RS-232 Out HDMI Out Power IR1 Extender CAT5e/6 to HDMI with LAN/IR/RS232 HDMI Out Connect to a HDMI equipped TV/monitor for display of the HDMI input source signal. Connect to a PC or Laptop to the Internet or network connection. RS-232 Out Connect to the device that is to be controlled (via D-Sub 9 pin female cable) by RS-232 commands. -
Page 11: D-Sub 9 Pin Definitions
7. D-SUB 9 PIN DEFINITIONS Define TX / RX TxD / RxD RxD / TxD... -
Page 12: Connection Diagram
8. CONNECTION DIAGRAM Internet Modem or Router DVD or Blu-ray Player HDMI CAT5e/6 RS-232 IR Blaster Power RS-232 In Transmitter HDMI In Supply HDMI to CAT5e/6 with LAN/IR/RS232 IR1 Blaster Power DC 24V IR2 Extender RS232 Equipped IR Extender PC or Notebook IR Extender IR2 Blaster Power... -
Page 13: Specifications
9. SPECIFICATIONS Video Bandwidth 300MHz/9Gbps Ethernet Speed 100Mbps Transmitter Input 1 × HDMI, 1 × IR Extender,1 × RS-232, 1 × LAN Output 1 × CAT5e/6, 1 × IR Blaster Receiver Input 1 × CAT5e/6, 1 × IR Extender Output 1 ×... -
Page 14: Acronyms
10. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital content protection HDMI High Definition Multimedia Interface Infrared... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
