Summary of Contents for CYP CH-514RXWPL
- Page 1 CH-514RXWPL HDMI over CAT5e/6/7 Wall Plate Receiver Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 IR Cable Pin Assignment....4 7. -
Page 6: Introduction
1. INTRODUCTION The HDMI over CAT5e/6/7 Wall plate Receiver make your home or office more efficient. This Receiver can receive uncompressed Video/ Audio and Bi-directional IR over 60 meters from Transmitter. It is freely to connect with compatible Transmitter through CAT5e/6/7 for data transmission. -
Page 7: Features
5. FEATURES • HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant • Supports data rate from 250Mbps up to 3Gbps • Supports wide range of PC resolutions from VGA to WUXGA and HDTV resolutions up to 4Kx2K (3840x2160@30Hz and 4096x2160@24Hz) •... -
Page 8: Operation Controls And Functions

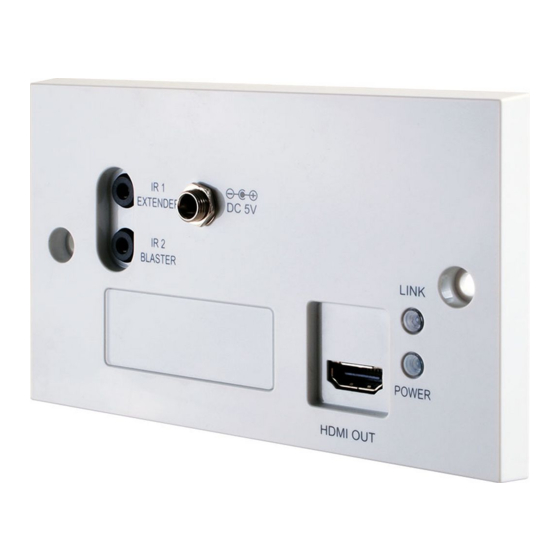

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel IR 1 DC 5V Digital Eye IR 2 Emitter LINK POWER HDMI OUT IR 1 EXTENDER: Connect to the supplied IR Extender cable for IR signal reception. Ensure that remote controller being used is within the direct line-of-sight of the IR Extender. -
Page 9: Rear Panel
6.2 Rear Panel CAT5e/6/7: Connect this port to HDMI to CAT5e/6/7 Transmitter (without PoE function) with CAT5e/6/7 cable to extend the signal up to 60 meters. 6.3 IR Cable Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Extender IR Signal Power 5 V Grounding... -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM CAT5e/6/7(60M) IR 1 IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT Digital Eye DC 5V CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT POE 24V... -
Page 11: Specifications
8. SPECIFICATIONS Video Bandwidth 300Mbps/10.2Gbps Input ports 1 x CAT5e/6/7 1 x IR Extender CAT5e/6/7 Input Cable Up to 60 meters Distance Output port 1 x HDMI, 1 x IR Blaster HDMI Output Cable Distance Resolution Up to 4Kx2K (3840x2160@30Hz/4096x2160@24Hz) IR Frequency 30 ~50kHz Power Supply... -
Page 12: Cat5E/6/7 Cable Specification
8.1 CAT5e/6/7 Cable Specification Cable Range Pixel clock Video Data Supported Video Type rate Rate CAT5e/6/7 60 m <=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, 36 bits, 3D (data rates (HD Video) lower than 5.3 Gbps or below 225 MHz TMDS clock). - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20130708 MPM-CH514RXWP...
