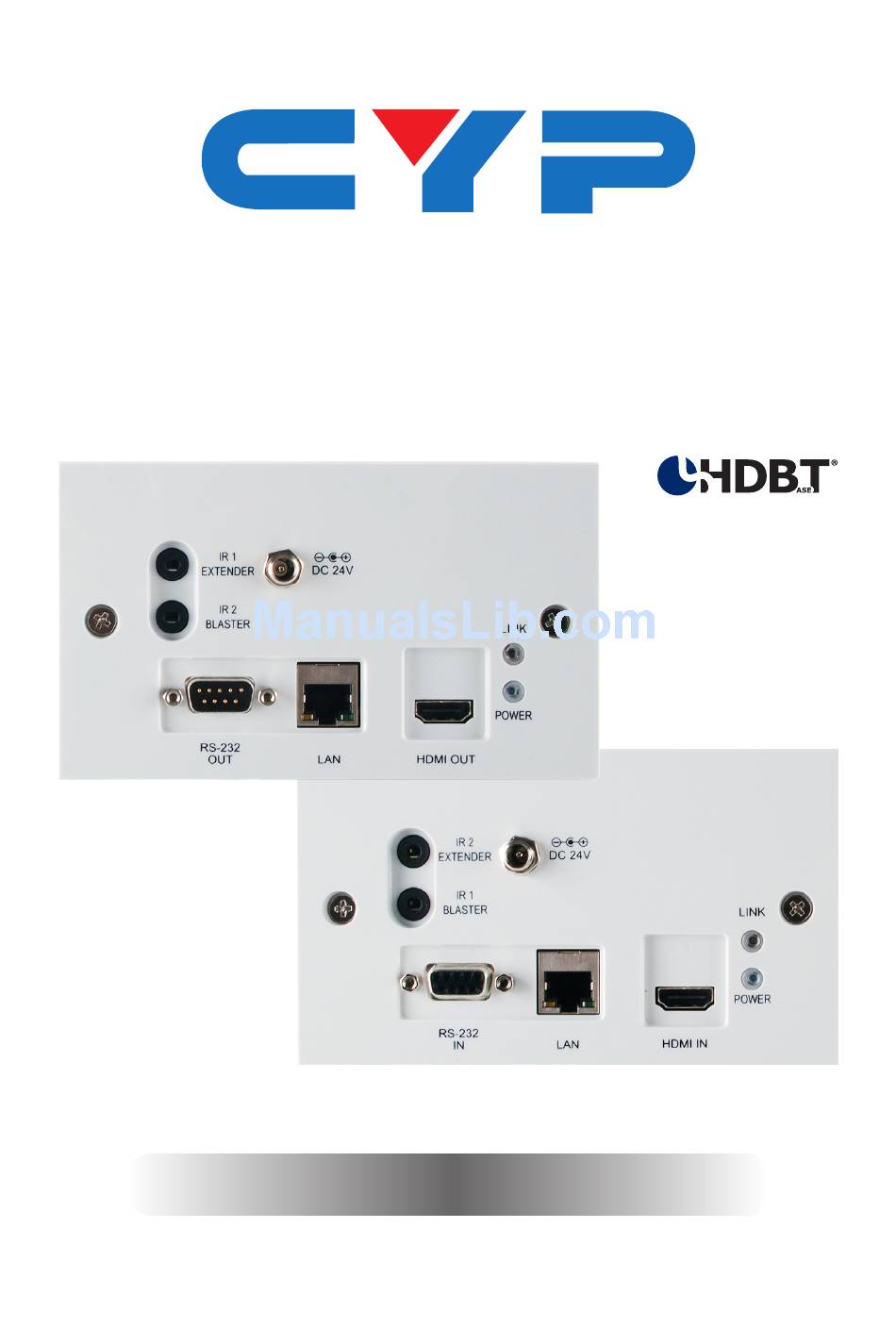

Page 1: Operation Manual
CH-507TXWPBD & RXWPBD HDMI over Single CAT5e/6/7 Wall-plate Transmitter and Receiver Operation Manual Operation Manual... -
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Transmitter Front and Rear Panels ..3 6.2 Receiver Front and Rear Panels ..4 6.3 IR Cable Pin Assignment....6 6.4 RS-232 Cable Pin Definitions ....6 7. -
Page 6: Introduction
1. INTRODUCTION The HDMI over Single CAT5e/6/7 Wall-plate Transmitter and Receiver set can send uncompressed video/audio and IP data over a single run of CAT5e/6/7 cable up to 100 meters. It has the added benefit of control through the built-in RS-232 pass-through and 2-way IR control and a LAN serving connection. -
Page 7: Features
5. FEATURES • HDMI (with 3D format and 4K2K resolution support), HDCP and DVI compliant • Supports HDCP repeater and CEC bypass functions • Simultaneous transmission of uncompressed video/audio and data over a single CAT5e/6/7 cable up to 100m/328ft • HDBaseT™ 5Play convergence: uncompressed high-definition Video and Audio, LAN serving, bi-directional Power over Ethernet (PoE) and IR/RS-232 Control pass-through •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels IR 2 DC 24V EXTENDER IR 1 BLASTER LINK POWER RS-232 HDMI IN IR 2 EXTENDER: Connect an IR Extender cable for IR signal reception. Signals received will be transmitted from any IR blaster connected to the receiver unit. -
Page 9: Receiver Front And Rear Panels
connected to a power supply or powered by another unit via PoE. LINK LED: This LED will illuminate when both the source connected to the transmitter and the display connected to the receiver are connected. CAT5e/6/7 OUT: Connect to the receiver unit with a single CAT5e/6/7 cable for transmission of all data signals. - Page 10 DC 24V: Connect the 24 V DC power supply to the transmitter and Plug the adaptor into an AC outlet. HDMI OUT: Connect to a HDMI equipped TV/monitor for display of the HDMI input source signal. POWER LED: This LED will illuminate when the receiver is connected to a power supply or powered by another unit via PoE.
-
Page 11: Ir Cable Pin Assignment
6.3 IR Cable Pin Assignment IR Blaster Power 3.3V IR Blaster Signal IR Extender IR Signal Power 3.3V Grounding 6.4 RS-232 Cable Pin Definitions TX/RX DEFINITION TxD/RxD RxD/TxD... -
Page 12: Connection Diagrams
7. CONNECTION DIAGRAMS 7.1 Option 1: Point to Point RS-232 Equipped PC Internet Modem or Control System or Router DVD or Blu-ray Player HDMI RS-232 Serving Input 1.5m 60° 60° IR Extender IR 1 DC 24V EXTENDER IR 2 BLASTER IR Blaster LINK POWER... -
Page 13: Option 2: Matrix System
7.2 Option 2: Matrix System TV/Display Extender HDMI 1.5m Serving Output 60° 60° Blaster IR 2 EXTENDER DC 24V IR 1 BLASTER LINK POWER RS-232 HDMI IN Internet Router Single CAT5e/6/7 Cable Up to 7 Other Zones HDBaseT IR OUT IR OUT IR OUT IR OUT... -
Page 14: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 340 MHz/10.2 Gbps Transmitter Input Ports 1×HDMI, 1×LAN, 1×IR Extender, 1×RS-232 Output Ports 1×CAT5e/6/7, 1×IR Blaster Receiver Input Ports 1×CAT5e/6/7, 1×IR Extender Output Ports 1×HDMI, 1×LAN, 1×IR Blaster, 1×RS-232 CAT5e/6/7 Cable Up to 100 meters Distances HDMI Resolutions Up to 4K2K (3840×2160@30 Hz/... -
Page 15: Cat5E/6/7 Cable Specifications
8.2 CAT5e/6/7 Cable Specifications CABLE TYPE RANGE PIXEL VIDEO DATA SUPPORTED VIDEO CLOCK RATE RATE CAT5e/6/7 100 m ≤225 MHz ≤5.3 Gbps Up to 1080p, (HD Video) 60 Hz,36 bits, 3D (data rates lower than 5.3 Gbps or below 225 MHz TMDS clock) 70 m >225 MHz... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-507TXRXWPBD...
