- Page 1 CH-527RXVBD 4K UHD+ HDMI over HDBaseT Receiver with Bi-directional 24V PoC Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel ..........4 6.3 IR Cable Pinouts ........5 6.4 RS-232 Bypass Pinout ......... -
Page 6: Introduction
1. INTRODUCTION This HDMI over HDBaseT Receiver is a great solution for extending UHD video and audio as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances up to 100 meters. This extender complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS • HDMI receiving equipment such as an HDTV, monitor or audio amplifier. • An HDBaseT Transmitter equipped with AVLC and 24V PoC support is strongly recommended. • The use of “Premium High Speed” HDMI cables, and industry standard Cat.6, Cat.6a or Cat.7, is highly recommended. -
Page 8: Operation Controls And Functions

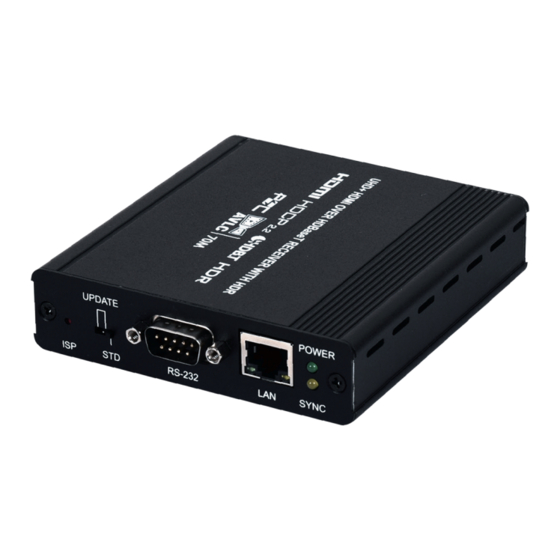

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel UPDATE SYNC ISP Pinhole: This button is reserved for factory use only. STD/UPDATE Switch: This switch is reserved for factory use only. Note: This should be left on the default setting of “STD” for normal operation. -
Page 9: Rear Panel
6.2 Rear Panel CAT5e/6/7 HDMI OUT DC 24V BLASTER EXTENDER DC 24V Terminal Block: Plug the 24V DC power adapter into this terminal block and connect it to an AC wall outlet for power. (Optional) Note: This connection is not required if the unit is receiving power via 24V PoC from the Transmitter. -
Page 10: Ir Cable Pinouts
6.3 IR Cable Pinouts IR Blaster IR Extender Cable Cable Power Infrared Infrared Power Not Used Ground 6.4 RS-232 Bypass Pinout DE-9 Male Port... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM Media Player HDMI RS-232 Equipped Input 1.5m Network 60° Switch RS-232 60° UPDATE SYNC Power Supply CAT5e/6/7 DC 24V BLASTER EXTENDER HDMI IN IR Input & Output Cat.5e/6/7 Cable IR Input & Output CAT5e/6/7 HDMI OUT DC 24V BLASTER EXTENDER UPDATE... -
Page 12: Specifications
8. SPECIFICATIONS 8.1 Basic Specifications HDMI Bandwidth 600MHz/18Gbps HDBaseT Bandwidth 340MHz/10.2Gbps Input Port 1×HDBaseT (RJ-45) Output Port 1×HDMI Pass-through Ports 1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 1×RS-232 (DE-9) 1×LAN (RJ-45) IR Frequency 30 – 50kHz (30 – 60kHz under ideal conditions) Baud Rate Up to 115200... -
Page 13: Video Specifications
8.2 Video Specifications Input Output Supported Resolutions (Hz) HDBT HDMI 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 800×600p@56/60/72/75/85 848×480p@60 1024×768p@60/70/75/85 1152×864p@75 1280×720p@50/60 ... -
Page 14: Audio Specifications
Input Output Supported Resolutions (Hz) HDBT HDMI 1920×1200p@60RB 2560×1440p@60RB 2560×1600p@60RB 2048×1080p@24/25/30 2048×1080p@50/60 3840×2160p@24/25/30 3840×2160p@50/60 (4:2:0) 3840×2160p@24/25/30, HDR10 AVLC 3840×2160p@50/60 (4:2:0), HDR10 AVLC 3840×2160p@50/60 AVLC ... -
Page 15: Cable Specifications
8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Output Ethernet Cable Cat.5e/6 100m Cat.6a/7 100m 100m • 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit color - Data rates lower than 5.3Gbps or below 225MHz TMDS clock •... -
Page 16: Hdbaset Features
8.5 HDBaseT Features HDBaseT Feature Set Video & Audio Supported IR Pass-through Supported RS-232 Pass-through Supported Accept power from Transmitter Supported Send power to Transmitter Supported LAN Pass-through Supported... -
Page 17: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Audio/Video AVLC Adaptive Visually Lossless Compression Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6a Augmented Category 6 cable Cat.7 Category 7 cable Consumer Electronics Control Digital Visual Interface EDID Extended Display Identification Data High-Definition HDCP High-bandwidth Digital Content Protection... - Page 20 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
