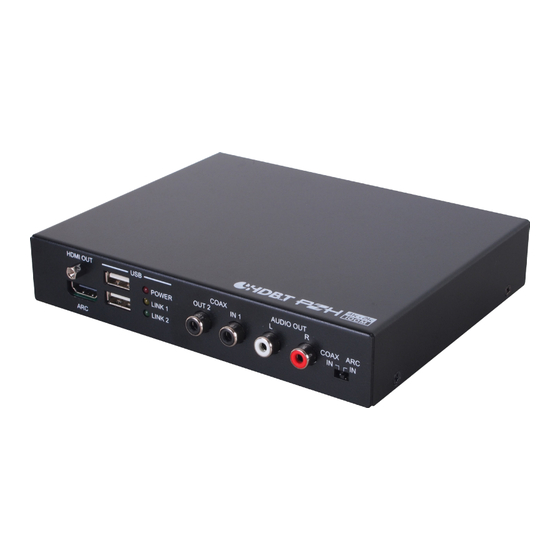

- Page 1 CH-1601RX HDMI/Audio over CAT5e/6/7 Receiver Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
- Page 5 CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........5 6.3 IR Cable Pin Assignment....6 6.4 D-Sub 9-Pin Assignment ....6 7.
- Page 6 1. INTRODUCTION This HDMI and Audio over Single CAT5e/6/7 Receiver set can receive uncompressed audio/video along with controls, IP and USB data over a single run of CAT5e/6/7 cable up to 100m. It has the added benefit of control through the built-in RS-232 and IR ports and a bidirectional LAN serving connection.
- Page 7 5. FEATURES • Supports HDBaseT 2.0 specification supporting over a single CAT6/7 cable up to 100m/328ft and CAT5e cable up to 90m/295ft • Fully compliant with HDMI 1.4, and compatible with HDMI 2.0 (4K2K 60Hz with 4:2:0) • Features 2 USB 2.0 ports •...
- Page 8 6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel RS 232 OUT IR IN 1 IR OUT 2 CAT5e/6/7 IN UPDATE POWER Update Switch Switch this deep switch to right for firmware update use, under normal operation, leave the switch on left. RS-232 OUT Connect to the device that is to be controlled (via D-Sub 9-pin male cable) by RS-232 commands.
- Page 9 CAT5e/6/7 IN Connect to the Transmitter unit with a single CAT5e/6/7 cable for transmission of all data signals. The yellow LED will illuminate to represent the link from Receiver is steady, when it blink irregularly it represent the link error or when not illuminate it means no link with Receiver.
- Page 10 6.2 Rear Panel HDMI OUT COAX AUDIO OUT OUT 2 IN 1 POWER COAX LINK 1 LINK 2 HDMI OUT Connect to a HDMI equipped TV/monitor for display of the HDMI input source signal. Connect to USB peripheral devices such as printer, keyboard, flash driver or …etc.
- Page 11 6.3 IR Cable Pin Assignment IR Blaster Power IR Blaster Signal IR Receiver IR Signal Power Grounding 6.4 D-Sub 9-Pin Assignment Define TX / RX TxD / RxD RxD / TxD...
- Page 12 7. CONNECTION DIAGRAM HDMI IN COAX AUDIO IN OUT 1 IN 2 ARC OUT HDMI DVD or Blu-ray Player Active Speakers DVD or Blu-ray Player 60° PC or Note Book 1.5m 1.5m RS232 Equipped HDMI Switcher 60° 60° IR Extender IR Blaster RS-232 Note Book...
- Page 13 8. SPECIFICATIONS Video Bandwidth 340MHz/10.2Gbps Input Ports 1 x CAT5e/6/7, 1 x IR, 1 x Coaxial Output Ports 1 x HDMI, 1 x RS-232, 1 x LAN, 1 x Coaxial, 1 x IR, 2 x USB IR Frequency 30~50kHz Baud Rate Up to 115200bps Power Supply 48VDC/0.83A (US/EU standards, CE/FCC/...
- Page 14 8.1 CAT5e/6/7 Cable Specification Cable Pixel clock Video Data Supported Range Type rate Rate Video CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps Up to 1080p, (HD Video) 60 Hz, 36 bits, 3D (data rates lower than 5.3 Gbps or below 225 MHz TMDS clock).
