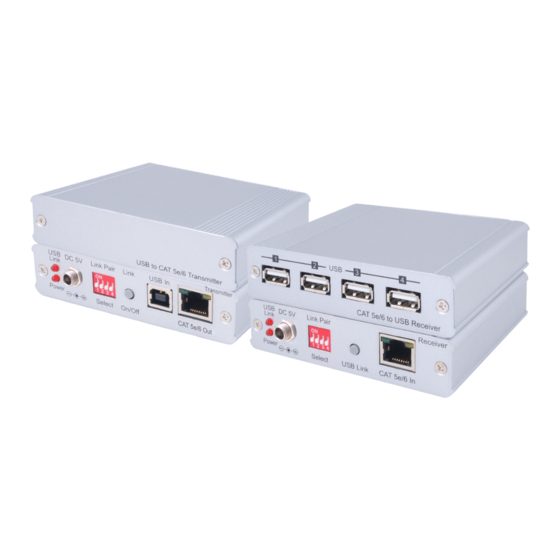

CA-USBST & CA-USBS100R
USB over single CAT5e/6 Transmitter and Receiver
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CA-USBST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CYP CA-USBST

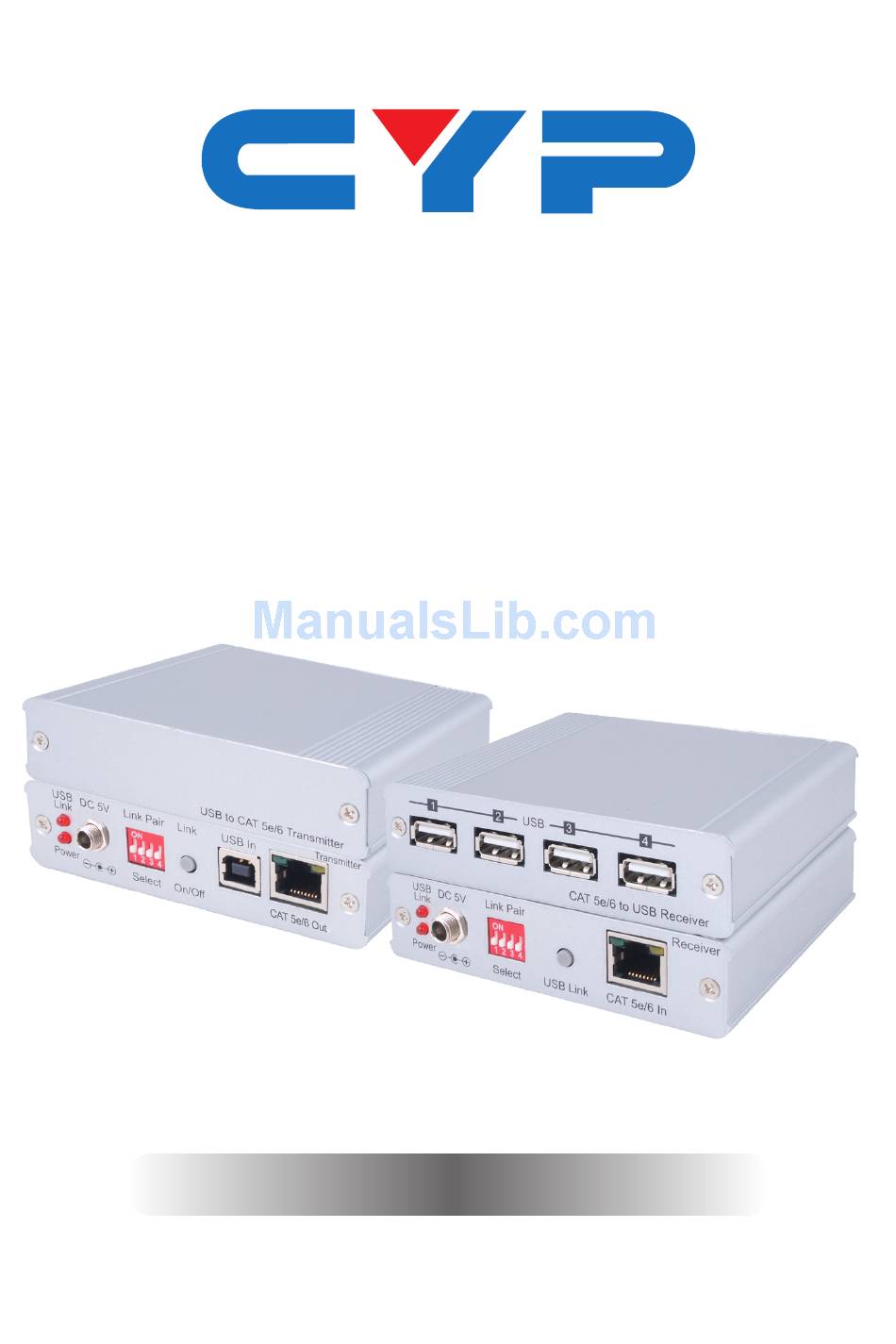

  • Page 1 CA-USBST & CA-USBS100R USB over single CAT5e/6 Transmitter and Receiver Operation Manual Operation Manual...
  • Page 2: Copyright Notice

    DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 4: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......1 5. Features ............ 1 6. Operation Controls and Functions ..2 6.1 Front Panel ..........2 6.2 Front Panel ..........3 6.3 Rear Panel ...........4 7.
  • Page 5: Introduction

    1. INTRODUCTION With USB being the standard connection for consumer electronic products, there has long been a need for something to let us operate our many devices over long distances. The USB over CAT5e/6 transmitter and receiver boxes developed for this purpose as they can operate in both the home and commercial markets.
  • Page 6: Operation Controls And Functions

    • LED indicators for easy viewing • Each USB output port contains 500 mA of power 6. OPERATION CONTROLS AND FUNCTIONS TRANSMITTER 6.1 Front Panel USB Link This LED will illuminate when the transmitter has linked with receiver’s USB signal. Power LED This LED will illuminate when the device is plugged with power supply.
  • Page 7: Front Panel

    with the transmitter’s USB input. Note: To activate the link a re-power on is required after each button pressed. USB In This slot is to connect with PC/Laptop for input source signal with USB B type cable. CAT5e/6 Out This slot is to connect with CAT5e/6 cable with receiver side’s CAT5e/6 input.
  • Page 8: Rear Panel

    Link Pair Select This dip switch allows user with multi-pair setting for link up to 16 pairs of the devices with single IP router. Each pair must have the same dip switch setting in order to pair to the right device setting. The factory default setting is at 0000.
  • Page 9: Connection And Installation

    7. CONNECTION AND INSTALLATION Example 1 CAT5e/6 100m Transmitter CAT5e/6 100m Internet Hub CAT5e/6 100m Receiver Flash Keyboard Mouse hard drive Printer Scanner...
  • Page 10 Example 2 CAT5e/6 100m CAT5e/6 100m Transmitter X 16 Receiver X 16 Mouse Keyboard Flash Scanner...
  • Page 11: Specifications

    8. SPECIFICATIONS TRANSMITTER Input Port 1 x USB (B type) Output Port 1 x RJ45 RECEIVER Input Port 1 x RJ45 Output Ports 4 x USB (A type) ESD Protection Human Body ± 10kV (air-gap Model: discharge) ± 6kV (contact discharge) Power Supply 5V / 3A DC (US/EU standards, CE/FCC/...
  • Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...

This manual is also suitable for:

Ca-usbs100r
