Summary of Contents for CYP CA-DVIAT

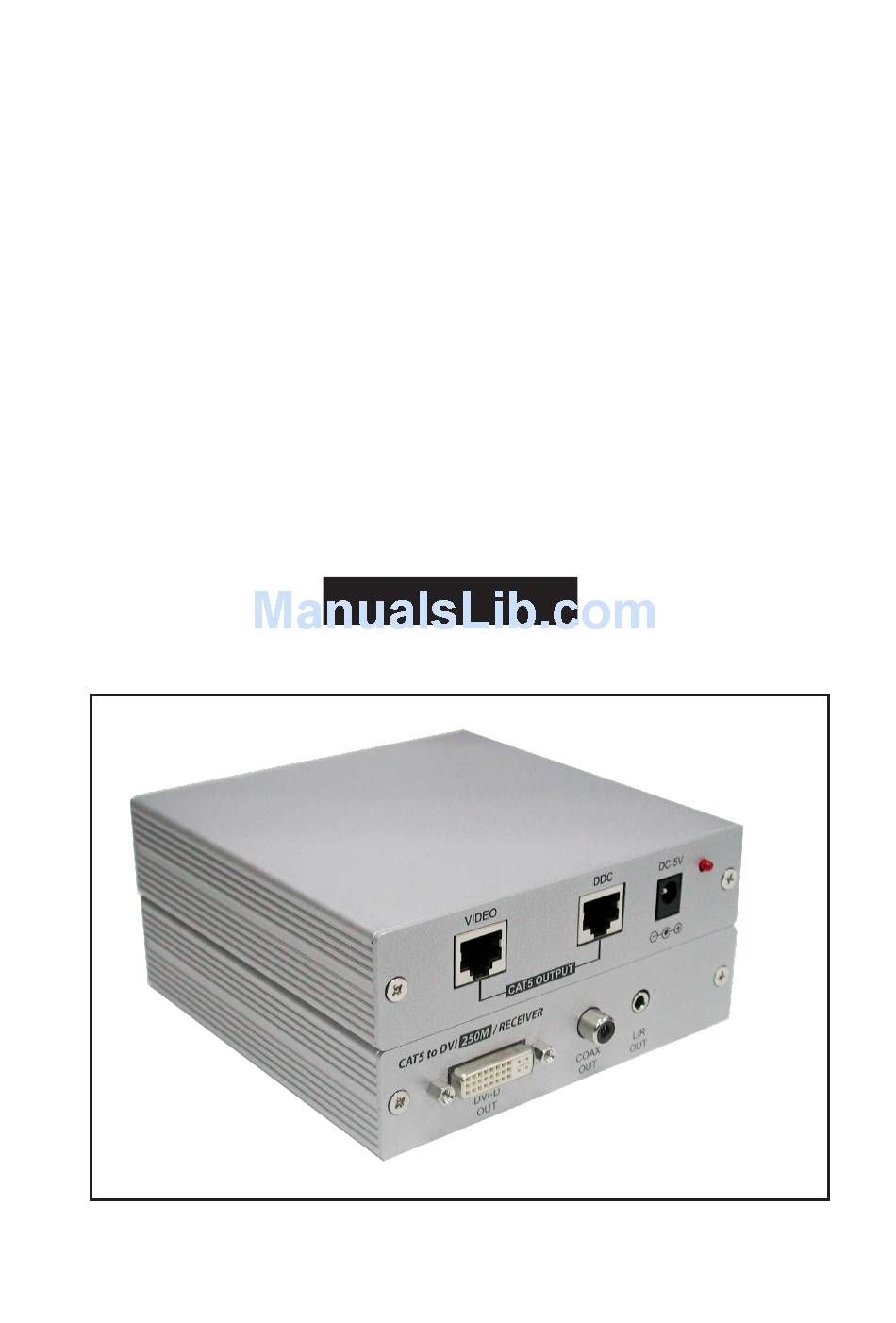

- Page 1 CA-DVIAT & CA-DVI250R DVI over CAT5 Transmitter & Receiver Box Operation Manual CA-DVIAT&CA-DVI250R...
- Page 2 Revision History Version No Date Summary of Change 20090401 Preliminary Release Precaution Failure to follow the precautions described below may cause damage to DVI over CAT 5 Transmitter and Receiver Box and void the warranty. DO NOT open the case. Doing so will void the warranty. If you find ...
-
Page 3: Table Of Contents
Table of Contents Introduction…………………………………………………..………. Application…………………………………………………....…. Contents………………………………………………......… System Require…………………………………….…………..……. Features……………………………………………..……..……… Operation Controls and Functions……………………………………. Transmitter’s Front Panel............Receiver’s Front Panel………………......….….… Transmitter’s Rear Panel............Receiver’s Rear Panel………………………………..….… Connection and Installation……………………………..……..… Specifications……………………………………………...……….. -
Page 4: Introduction
1. Introduction DVI transmitter and receiver over CAT 5 is a pair of extender for DVI signal - up to 250 meters long. Not only can this device transfer the HD image signal but also the analog/digital audio signal with coaxial and L/R audio port. Through the DDC cable the device can also support HDCP and CEC. -
Page 5: Features
5. Features Compliant with HDMI 1.2, HDCP 1.1 and DVI 1.0 specifications. Support Equalizer, Gain, CTI (Color Transient Improvement) adjustment. Supports high definition input up to 1080P/UXGA, output resolution follows input. Easy to install and simple to operate. ... -
Page 6: Transmitter's Front Panel
6.2 Receiver’s Front Panel VIDEO DC 5V EQUALIZER GAIN 250M 150M ADJUST CAT5 INPUT 100M ① CTI dip switch – Setting CTI by using the twin jumpers to adjust the optimized setting for different distance of connection. 150 - 250m ↑... -
Page 7: Transmitter's Rear Panel
6.3 Transmitter’s Rear Panel VIDEO DC 5V CAT5 OUTPUT ① with CAT-5/CAT-5E/CAT-6 cable. ② DDC CAT 5 INPUT – Connect the DDC input to the DDC output of the transmitter with CAT-5/CAT-5E/CAT-6 cable. Note: For advanced user only, if it's known that the DDC or HDCP data are required for the source and the display, you can use a single CAT-5 cable for the VIDEO connection only. -
Page 8: Connection And Installation
7. Connection and Installation DVD Player Co-ax VIDEO (CAT-5 Cable) Cable Cable HDMI to DVI Cable Cable DDC (CAT-5 Cable) VIDEO DVI to CAT 5 / TRANSMITTER DC 5V COAX 250 Meters DVI-D COAX AUDIO CAT5 OUTPUT Transmitter unit Transmitter unit Front Rear VIDEO... -
Page 9: Specifications
8. Specifications Transmitter Input port 1 x DVI-I female port (Accept DVI-D signel only) 1 x Coaxial 1 x L/R Audio Transmitter Output port 2 x CAT5 RJ 45 8pin Receiver Input port 2 x CAT5 RJ 45 8pin Receiver Output port 1 x DVI-I female port 1 x Coaxial 1 x L/R Audio... - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20090402 MPM-CADVI250R...
