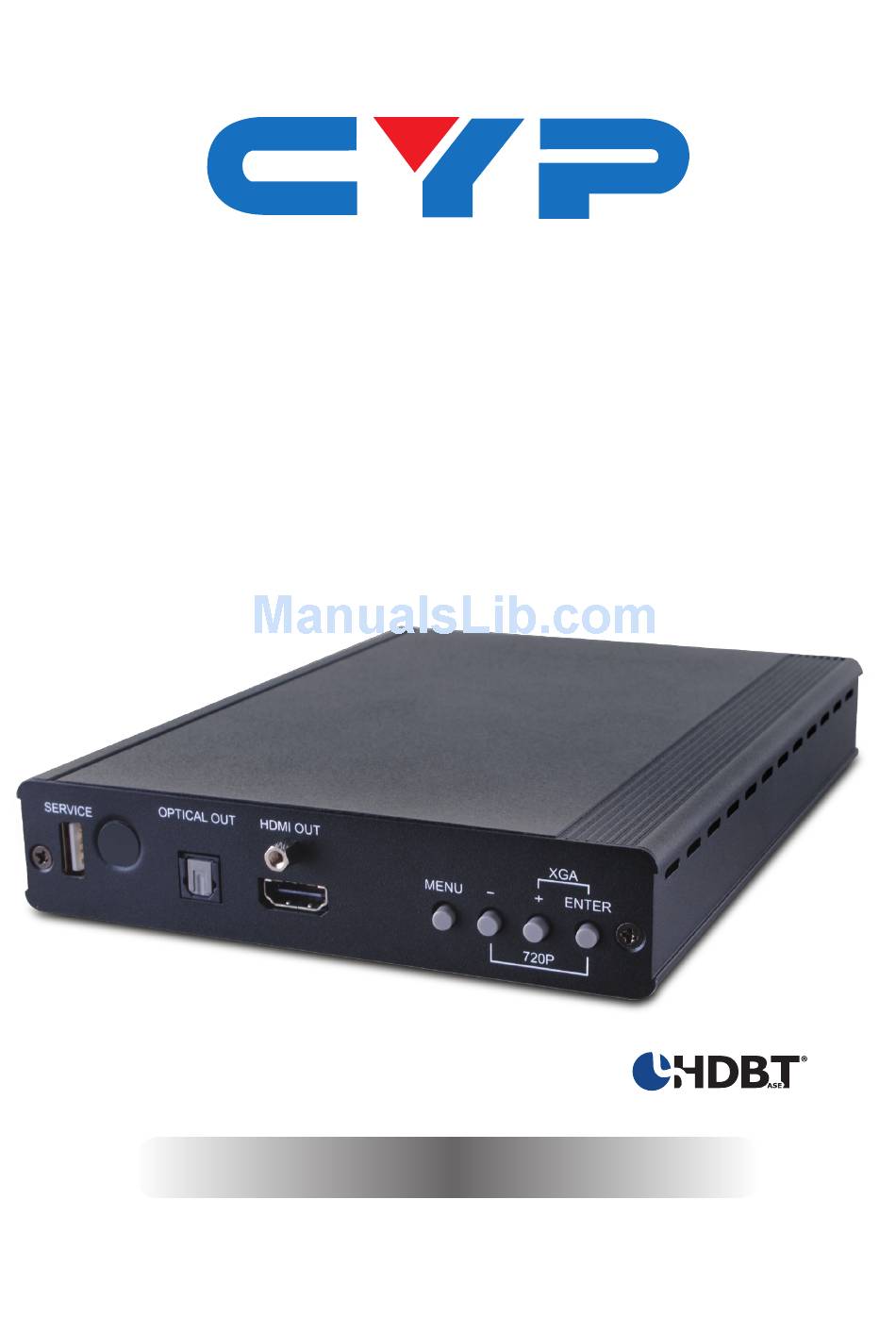

Page 1: Operation Manual
CH-517RXHS HDMI Scaler over CAT5e/6/7 Receiver with LAN/ RS-232/IR/Bidirectional PoE Operation Manual Operation Manual... -
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel .........3 6.2 Rear Panel .........4 6.3 Remote Control .........5 6.4 IR Cable Pin Assignment ....5 6.5 RS-232 Pin Definitions ......6 6.6 RS-232 Commands......7... -
Page 6: Introduction
1. INTRODUCTION The CH-517RXHS is an HDBaseT™ Receiver Scaler designed to scale the incoming video signal first, before outputting to its HDMI port. There is an Optical port providing additional audio extraction feature. Besides video and audio from the Transmitter, it also takes in 2-way IR, RS-232 and bidirectional LAN serving, over a single run of CAT5e/6/7 cable at a distance up to 100 meters. -
Page 7: Features
5. FEATURES • Supports HDMI scaling to a wide range of HDTV or PC resolutions up to 1080p and WUXGA (RB) • Reception of uncompressed data over a single CAT5e/6/7 cable up to 100m/328ft • HDBaseT™ 5Play convergence: uncompressed high definition Video and Audio, LAN serving, Bidirectional Power over Ethernet (PoE) and controls (IR &... -
Page 8: Operation Controls And Functions

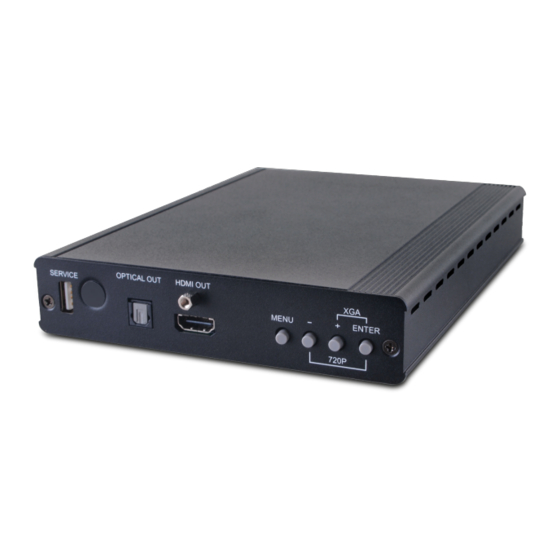

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel OPTICAL OUT HDMI OUT SERVICE MENU ENTER 720P SERVICE: Reserved for manufacturer use only. IR RECEIVER WINDOW: Receives only the IR signal from the supplied remote control. OPTICAL OUT: Connect to an amplifier or active speakers with an optical cable. -
Page 9: Rear Panel
6.2 Rear Panel DC 24V RS232 OUT CAT5e/6 IN Blaster Extender POWER MODE LINK POWER LED: This LED will illuminate when the device is connected to an active power supply. DC 24V: Connect the 24 V DC power supply to the unit and plug the adaptor into an AC outlet. -
Page 10: Remote Control
6.3 Remote Control INPUT: Not functional. EXIT: Press this button to exit the menu or escape the current selection under OSD. INPUT MENU: Press this button to exit the menu EXIT MENU or the current selection in the on-screen menu. RESET: Press this button to return the device to the factory default settings. -
Page 11: Rs-232 Pin Definitions
6.5 RS-232 Pin Definitions DEFINE TX / RX TxD/RxD RxD/TxD Baud Rate: 9600bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1... -
Page 12: Rs-232 Commands
6.6 RS-232 Commands COMMAND DESCRIPTION S OUTPUT 0~25 0=Native 12=1600×1200 1=640×480 13=1920×1080 2=800×600 16=1920×1200 3=1024×768 17=480p 5=1360×768 18=720p@60 6=1280×720 19=1080p@60 7=1280×800 20=1080i@60 8=1280×1024 22=576p 9=1440×900 23=720p@50 10=1400×1050 24=1080p@50 11=1680×1050 25=1080i@50 R OUTPUT Reports the numerical equivalent for the OUTPUT setting (as listed above) S SIZE 0~6 0=OVERSCAN 4=LETTER BOX... - Page 13 COMMAND DESCRIPTION S SATURATION 0~60 Sets the numerical value for the SATURATION setting (0~60) R SATURATION Reports the numerical value for the SATURATION setting (0~60) S SHARPNESS 0~30 Sets the numerical value for the SHARPNESS setting (0~30) R SHARPNESS Reports the numerical value for the SHARPNESS setting (0~30) S NR 0~3 0=OFF...
-
Page 14: Osd Menu
6.7 OSD Menu 1 ST LAYER 2 ND LAYER 3 RD LAYER DISPLAY OUTPUT Native 640x480 60 800x600 60 1024x768 60 1360x768 60 1280x720 60 1280x800 60 1280x1024 60 1440x900 60 1400x1050 60 1680x1050 60 1600x1200 60 1920x1080 60 1920x1200 60 720x480P 60 1280x720P 60 1920x1080I 60... - Page 15 1 ST LAYER 2 ND LAYER 3 RD LAYER SIZE SIZE OVER SCAN FULL ASPECT RATIO PAN SCAN LETTER BOX UNDER 2 UNDER 1 MODE INFO INFO COLOR R OFFSET G OFFSET B OFFSET CONTRAST 0~60 BRIGHTNESS 0~60 0~60 SATURATION 0~60 SHARPNESS 0~60...
-
Page 16: Output Resolutions Support
1 ST LAYER 2 ND LAYER 3 RD LAYER SOUND MUTE SETUP FACTORY RESET KEY LOCK INFORMATION INPUT OUTPUT REVISION Note: Items in Bold are the default setting. 6.8 Input Resolutions Support INPUT RESOLUTION HDMI 480i/576i 480p/576p 720p@50/60 Hz ... -
Page 17: Connection Diagram
7. CONNECTION DIAGRAM DVD Player RS-232 Control System HDMI RS-232 Input 1.5m 60° 60° Router with Internet Connection IR Blaster Compatible PoE RS-232 In Transmitter HDMI In Transmitter Unit IR Extender HDMI to CAT5e/6 with LAN/IR/RS232 CAT5e/6/7 Cable (100m) RS-232 Device to be Controlled RS-232 IR Extender... -
Page 18: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Ethernet Speed 100 Mbps Input Video Bandwidth 300MHz / 10.2Gbps Output Video Bandwidth 165MHz / 1.65Gbps Input Ports 1×CAT5e/6/7, 1×IR Extender Output Ports 1×HDMI, 1×IR Blaster, 1×Optical, 1×RS-232, 1×LAN CAT5e/6/7 Output Cable Up to 100 Meters Distance HDMI Resolutions Support HD: Up to 1080p@60 Hz... -
Page 19: Cat5E/6/7 Cable Specification
8.2 CAT5e/6/7 Cable Specification Cable Type Range Pixel Clock Video Data Supported Video Rate Rate CAT5e/6/7 100 m ≤225 MHz ≤5.3 Gbps Up to 1080p, 60 Hz, 36 bits, 3D (data (HD Video) rates lower than 5.3 Gbps or below 225 MHz TMDS clock). - Page 20 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20130624 MPM-CH517RXHS...
