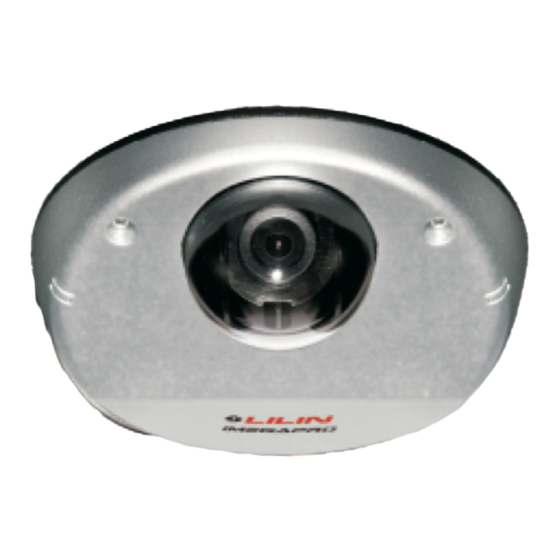

1080p hd vandal resistant dome ip camera

Advertisement

Quick Links

1080P HD Vandal Resistant Dome IP Camera
IPD6220ES/6222ES 3.6/4.3/6
Instr uction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPD6220ES3.6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lilin IPD6220ES3.6

  • Page 1 1080P HD Vandal Resistant Dome IP Camera IPD6220ES/6222ES 3.6/4.3/6 Instr uction Manual...
  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GRAPHIC SYMBOL EXPLANATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...
  • Page 3 CAUTION Do not drop or strike this equipment. Sensitive electronics inside are vulnerable to excessive shock. Do not install the equipment near any naked flames or heat sources. Excessive heat could damage this unit. Do not expose this unit to rain or excessive moisture, avoid smoke and dust.
  • Page 4 CONGRATULATIONS Thank you for purchasing this 1080P HD Vandal Resistant Dome IP Camera. You now own one of the many fine network products we manufactured. This product has been carefully inspected under rigid quality control and should reach you in perfect condition. With reasonable care, it will provide years of reliable performance.
  • Page 5 Executive Summary IPD6220ES/IPD6222ES series is an 2 Megapixel 1080P HD Vandal Resistant Dome IP Camera, built-in H.264 AVC(Advanced Video Coding) video compression. H.264 AVC video compression engine supports high definition video quality, 1080P(1920x1080) resolution, bandwidth efficiency with PPPoE and DDNS. Also it provides higher bit rate of internet and diverse alarm functions such as movement video detection e-mail or FTP.
  • Page 6: Part Description & Dimension

    PART DESCRIPTION & DIMENSION [IPD6220ES] [IPD6222ES] M12 Connector Pin 1: Tx + Pin 2: Rx + Pin 3: Tx - Pin 4: R Unit: mm Base Dome Cover Microphone Mask Camera Body Network Cable (IPD6220ES series) M12, 4-Pin D-coded male connector DC12V Power Input Jack (IPD6222ES series) RJ-45 Network Connector (IPD6222ES series) Network Indicator LEDs...
  • Page 7: Installation

    INSTALLATION 1. Please use the enclosed hexagon screw driver to untighten the 4 screws on the   dome cover (FIG.1). FIG. 1 2. Put the provided screws (M3.0*25, wooden screw) through the holes marked as   "a", and fix the bottom chassis in the desired area (FIG.2 & FIG.3). 20°...
  • Page 8 FIG. 4 FIG. 5 4. Put on the dome cover, use hexagon screw driver to screw dome cover into bottom chassis and then tighten the screws (FIG.6).   FIG. 6...
  • Page 9 PRODUCTION COMPONENTS 1. 2 Megapixel 1080P HD 2. Instruction Manual Vandal Resistant Dome   IP Camera   H.264 Full HD IP Cameras IPD552EX2.2/4.2 N/P INSTRUCTION MANUAL 1080P HD Dome IP Camera IPD2220ES 4.3/6 Instr uction Manual 4. L type Hex Key Wrench 3.
  • Page 10: Emergency Factory Default

    EMERGENCY FACTORY DEFAULT Use hardware to restore factory default settings, follow these steps: 1. Hold "RESET Key" for 10 seconds, then release. 2. After about 40 seconds, the network LED light is off, and then lit. 3. This camera has completed the factory default settings, and then reboot. 4.
  • Page 11: Specifications

    SPECIFICATIONS 1080P HD VANDAL RESISTANT DOME IP CAMERA Model No. IPD6220ES3.6 IPD6220ES4.3 IPD6220ES6 IPD6222ES3.6 IPD6222ES4.3 IPD6222ES6 Focal Length 3.6mm 4.3mm 3.6mm 4.3mm Iris F1.6 F1.6 F1.8 F1.6 F1.6 F1.8 101.4° 70° 49.3° 101.4° 70° 49.3° Lens Angle of view 52.4°...
  • Page 12 Support System Integration ONVIF & LILIN HTTP API Free CMX HD3.6 support Video Display LILIN Universal ActiveX & LILIN Java Applet Embedded Linux 2.6.32 One-way Audio G.711 SD Card Recording Support Micro SD/SDHC card for circular recording (card is not included) Design and specification are subject to change without notice.
  • Page 13 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-IPD622CSE...
