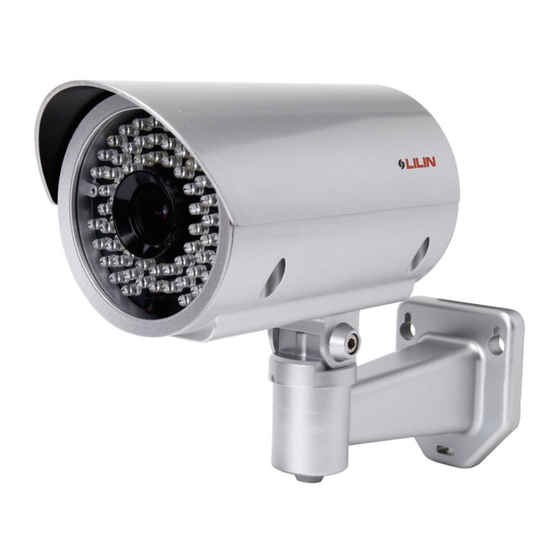

- Page 1 D/N 1080P HD Vari-Focal Infrared IP Camera IPR7424/7428ESX & LR7424/7428EX Instr uction Manual...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION： TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GRAPHIC SYMBOL EXPLANATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... - Page 3 CAUTION Do not drop or strike this equipment. Sensitive electronics inside are vulnerable to excessive shock. Do not install the equipment near any naked flames or heat sources. Excessive heat could damage this unit. Do not expose this unit to rain or excessive moisture, avoid smoke and dust.
- Page 4 CONGRATULATIONS Thank you for purchasing this 2 Megapixel D/N 1080P HD Infrared IP Camera. You now own one of the many fine network products we manufactured. This product has been carefully inspected under rigid quality control and should reach you in perfect condition.
- Page 5 Executive Summary IPR7424/7428ESX & LR7424/7428EX series is an 2 Megapixel D/N 1080P HD Infrared IP Camera, built-in H.264 AVC(Advanced Video Coding) video compression. H.264 AVC video compression engine supports high definition video quality, 1080P(1920x1080) resolution, bandwidth efficiency with PPPoE and DDNS.
-
Page 6: Part Description & Dimension
PART DESCRIPTION & DIMENSION SUN SHIELD TOP COVER BOTTOM CHASSIS Unit: mm BRACKET PAN ADJUSTMENT SCREW TILT ADJUSTMENT SCREW WINDOW... -
Page 7: Installation
INSTALLATION 1. Take out the bracket from the box first. Put the power cable and network cable through the bracket and then fix it to the wall (FIG.1 & FIG.2). FIG. 1 FIG. 2 2. Secondly, take out the camera body and open the top cover with screw driver (FIG.3). FIG. - Page 8 FIG. 4 FIG. 5 Note : When using two-cord power cable, please connect them to "Live" and "Neutral". 4. Next, use the provided M5.0x10 screws (silver-2pcs) to fix the camera body on the bracket with screw driver (FIG.6). F I G . 6 5.
-
Page 9: System Overview
6. First, adjust the lens on focus and zoom to form the optimal video image after that tighten the screws (FIG.8). F O C U S o r Z O O M Z O O M o r F O C U S F I G . - Page 10 3. CD Software Pack 4. L-type Hex Key Wrench SYSTEM ARCHITECTURES For connecting IPR7424/7428ESX & LR7424/7428EX series to the network, please follow one of the system architectures: (1). Use DC12V power adapter and network switch connected to a network. LAN / Internet...
-
Page 11: Emergency Factory Default
(2). Use with PoE of the network switch connected to the network. LAN / Internet PoE+(30W) Switch 2 Megapixel D/N 1080P HD Vari-Focal IR IP Camera (3). Use PoE power injector and the network switch connected to the network. LAN / Internet Non-PoE Switch PoE+(30W) Power Injector... -
Page 12: Specifications
SPECIFICATIONS IPR7424/7428ESX (1080P 30fps) D/N 1080P HD Vari-Focal INFRARED IP CAMERA Model No. IPR7424ESX3.6 IPR7428ESX3.6 IPR7424ESX2.4 IPR7428ESX2.4 3.3 ~ 12mm 9 ~ 22mm Focal Length F1.4 F1.4 Iris 79.3° ~ 29.8° 29.5° ~ 12.4° Lens Angle of View 59.4° ~ 22.4°... - Page 13 Android support System Integration ONVIF & LILIN HTTP API CMX HD3.6 support Video Display LILIN Universal ActiveX & LILIN Java Applet Embedded Linux 2.6.32 Two-way Audio G.711/ PCM SD Card Recording Support SD/SDHC card for circular recording(card is not included) Alarm Input/ Output Digital 1 input(TTL, +3~5V) / 1 Output(N.O.)
- Page 14 LR7424/7428EX (1080P 15fps) D/N 1080P HD Vari-Focal INFRARED IP CAMERA Model No. LR7424EX3.6 LR7428EX3.6 3.3 ~ 12mm Focal Length F1.4 Iris 59.6° ~ 22.6° Lens Angle of View 33.5° ~ 12.9° 68.4° ~ 25.9° Pick Up Element 1/2.5" CMOS Image sensor Effective Pixels 1920(H) x 1080(V) = 2,073,600(pixel) Chip Size...
- Page 15 Mobile Phone and PDA System Integration ONVIF & LILIN HTTP API CMX HD3.6 support Video Display LILIN Universal ActiveX & LILIN Java Applet Embedded Linux 2.6.32 Two-way Audio G.711/ PCM SD Card Recording Support Micro SD/SDHC card for circular recording(card is not included) Alarm Input/ Output Digital 1 input(TTL, +3~5V) / 1 Output(N.O.)
- Page 16 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-IPR7428CSE...
