IPD/R2322ES

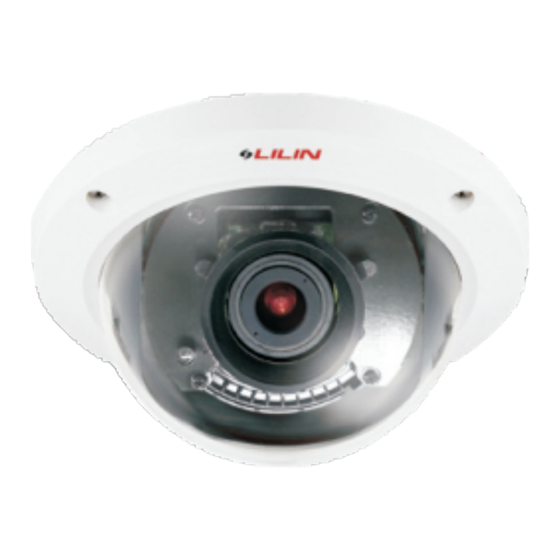

D/N 1080P HD Vari-Focal Dome (IR) IP Camera
LD/R2322E
D/N 1080P HD
ZD/R2322E
D/N 1080P HD Auto Focus Dome (IR) IP Camera
Quick Installation Guide
Vari-Focal
Dome (IR) IP Camera

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iMEGAPRO IPD/R2322ES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lilin iMEGAPRO IPD/R2322ES

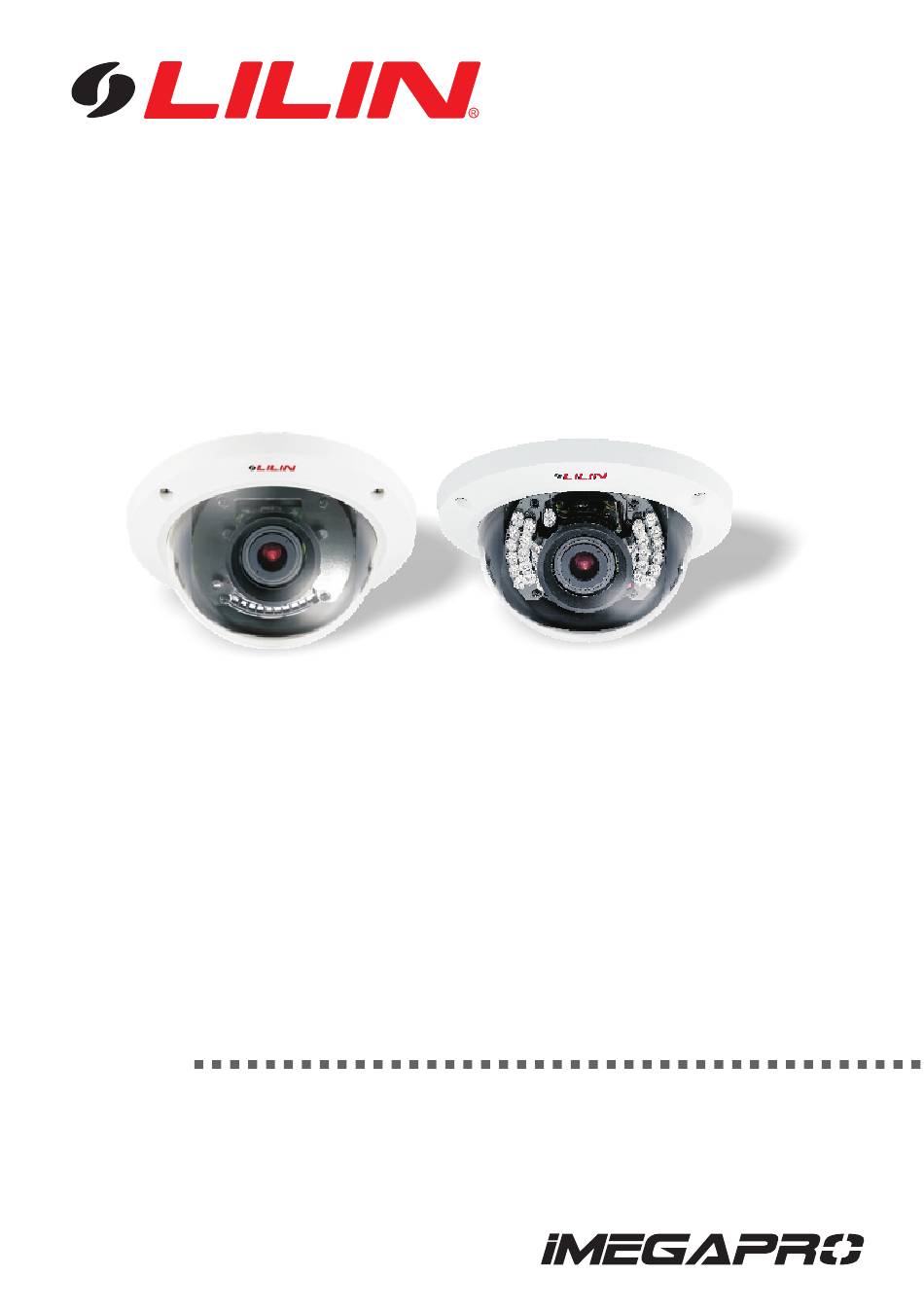

  • Page 1 IPD/R2322ES D/N 1080P HD Vari-Focal Dome (IR) IP Camera LD/R2322E D/N 1080P HD Vari-Focal Dome (IR) IP Camera ZD/R2322E D/N 1080P HD Auto Focus Dome (IR) IP Camera Quick Installation Guide...
  • Page 2 CAUTION Do not drop or strike this equipment Do not install the equipment near any naked flames or heat sources Do not expose this unit to rain, moisture, smoke or dust environment Do not cover the opening of the cabinet with cloth and plastic or to install this unit in poor ventilated places.
  • Page 3: Product Overview

    Product Overview - 1 -...
  • Page 4 (Vari-Focal Model) (Auto Focus Model) ƒè Cylinder (Ceiling Mount) ƒ« Top Cover ƒ» Inner Cover ƒQ Dome Cover ƒê Lens ƒî Slide Cover ƒó Fixed Plate (Ceiling Mount) ƒí Bottom Chassis ƒá Lock Plate ƒñ RJ-45 Network Connector (Support PoE) ⑪...
  • Page 5: Installation

    This network camera is compliant with micro SD/SDHC card. ○ Reset Button To restore the server to factory default setting. ○ Auto Focus Button Installation Installation Structural Drawing (Embedded Mounting) (Attached Mounting) - 3 -...
  • Page 6 Embedded Mounting (False Ceiling) 1. Please use the screw driver to untighten the 3 screws on the top cover (FIG.1), and to untighten the 3 screws on the cylinder (FIG.2). 2. Use a hole site diagram to cut the circle 108mm (FIG.3 & FIG.4). 3.
  • Page 7 4. Put the provided screw (M3.0x25, wooden screw) through the holes marked as “a”, and fix the bottom chassis in the desired area (FIG.6 & FIG.7). 5. Take down the inner cover from the camera module (FIG.8), and then adjust the direction of the lens through the adjustable Pan/Tilt bracket and rotatable round bracket for Azimuth (FIG.9).
  • Page 8 7. Put on the inner cover (FIG.12). Replace the top cover and tighten the screws (FIG.13). Attach Mounting (Fixed Ceiling) 1. Please use the screw driver to untighten the 3 screws on the top cover (FIG.14). Push the lock plate of bottom chassis down for unlocking (FIG.15).
  • Page 9 2. Put the provided screw(M3.0x25, wooden screw) through the holes marked as “a”, and fix the fixed plate in the desired area (FIG.16 & FIG.17). 3. Put the camera module into fixed plate, and push the lock plate up for locking (FIG.18). 4.
  • Page 10 5. Take down the inner cover from the camera module (FIG.20), and then adjust the direction of the lens through the adjustable Pan/Tilt bracket and rotatable round bracket for Azimuth (FIG.21). 6. Adjust the lens on focus and zoom to form the optimal video image after that tighten the screws (FIG.22 &...
  • Page 11 NOTE: When perform in-wall style installation of an IR IP camera, users are suggested to also install a wall mount bracket to avoid possible infrared reflection, when adjusting lens position. It would help minimizing any further technical issues caused by lens turning. AF (Auto Focus) function [Auto Focus Model Only] ●...
  • Page 12: Emergency Factory Default

    System Architectures For connecting HD IP cameras to the network, please follow one of the system architectures: (1). Use a DC12V power adapter and a network switch to connect to the network. (2). Use a PoE network switch to connect to the network. (3).
  • Page 13: Before Accessing Ip Cameras

    JPEG or H.264 Full HD video. When you login to the IP camera by Internet Explorer, the security warning dialog box will prompt the installation of the LILIN Universal ActiveX. Click Install to download it. - 11 -...
  • Page 14 IPScan software from the installation CD, and paste to your computer. Alternatively, you can execute the IPScan software from the installation CD, or download the software from the Merit LILIN website (www.meritlilin.com). To change the settings of the IP address, subnet mask, gateway, or HTTP port, you can follow the steps below: 1.
  • Page 15 1. Login to the H.264 Full HD IP camera by the default username “admin” and default password “pass” 2. Click Basic Mode configuration hyperlink. 3. Click Network->General hyperlink. 4. Change the IP address, subnet mask, gateway, or HTTP port for the IP camera.
  • Page 16 Login There are two levels of user authentication, including admin and guest, that can access the IP camera. Administrator is authorized to reset basic mode settings and see live video, while the guest is allowed to see only live video. The default usernames and passwords are as follows: Administrator Viewer...
  • Page 17 66-LR2322CSM...

This manual is also suitable for:

Imegapro ld/r2322eImegapro zd/r2322e
