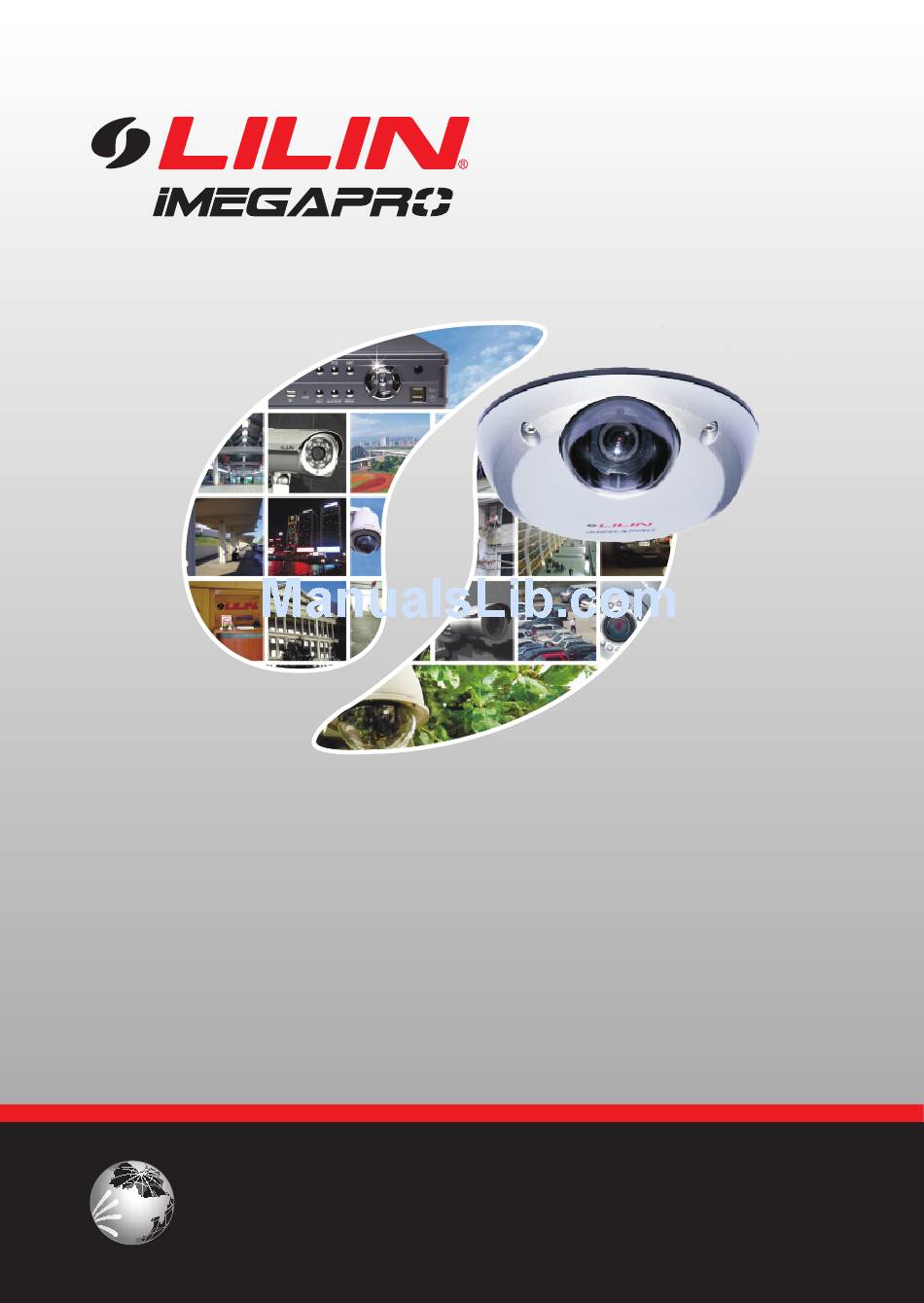

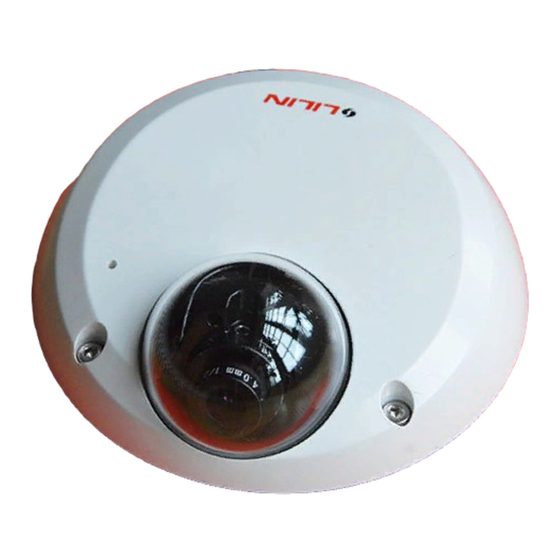

  • Page 1 1080P HD Dome IP Camera IPD2220ES / LD2222E Instr uction Manual...

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION： TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GRAPHIC SYMBOL EXPLANATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...
  • Page 3 CAUTION Do not drop or strike this equipment. Sensitive electronics inside are vulnerable to excessive shock. Do not install the equipment near any naked flames or heat sources. Excessive heat could damage this unit. Do not expose this unit to rain or excessive moisture, avoid smoke and dust.
  • Page 4 CONGRATULATIONS Thank you for purchasing this 2 Megapixel HD Dome IP Camera. You now own one of the many fine network products we manufactured. This product has been carefully inspected under rigid quality control and should reach you in perfect condition. With reasonable care, it will provide years of reliable performance.
  • Page 5 Executive Summary IPD2220ES & LD2222E series is an 2 Megapixel 1080P HD Dome IP Camera, built-in H.264 AVC(Advanced Video Coding) video compression. H.264 AVC video compression engine supports high definition video quality, 1080P(1920x1080) resolution, bandwidth efficiency with PPPoE and DDNS.

  • Page 6: Part Description & Dimension

    PART DESCRIPTION & DIMENSION Unit: mm Bottom Chassis DC12V Power Input Jack RJ-45 Network Connector Dome Cover Microphone Mask Camera Body Network Indicator LEDs Green(LINK): Network cable connected, this LED lit. Orange(ACT): Data communications, this LED flashes. Micro SD Card Slot Reset Key To restore the server to factory default setting.

  • Page 7: Installation

    INSTALLATION 1. Please use the enclosed hexagon screw driver to untighten the 3 screws on the 　 dome cover (FIG.1). FIG. 1 2. Put the provided screws (M3.0*25, wooden screw) through the holes marked as 　 "a", and fix the bottom chassis in the desired area (FIG.2 & FIG.3). 20°...
  • Page 8 FIG. 4 FIG. 5 4. Put on the dome cover, use hexagon screw driver to screw dome cover into bottom chassis and then tighten the screws (FIG.6). 　 FIG. 6...
  • Page 9 4. L type Hex Key Wrench 3. CD Software Pack SYSTEM ARCHITECTURES For connecting IPD2220ES & LD2222E series to the network, please follow one of the system architectures: (1). Use with PoE of the network switch connected to the network.

  • Page 10: Emergency Factory Default

    (3). Use DC12V power adapter and network switch connected to a network. LAN / Internet Non-PoE Switch 1080P HD Dome IP Camera DC12V Adaptor EMERGENCY FACTORY DEFAULT Use hardware to restore factory default settings, follow these steps: 1. Hold "RESET Key" for 10 seconds, then release. 2.

  • Page 11: Specifications

    SPECIFICATIONS IPD2220ES (1080P 30fps) 1080P HD DOME IP CAMERA Model No. IPD2220ES4.3 Focal Length 4.3mm Iris F1.6 Lens Angle of view 70°(H), 51 (D), 89 (D) ° ° Pick Up Element 1/2.7" CMOS Image Sensor Effective Pixels 1920(H) x 1080(V) = 2,073,600(pixel) Chip Size 5.856mm(H) x 3.276mm(V)
  • Page 12 Android support System Integration ONVIF & LILIN HTTP API CMX HD3.6 support Video Display LILIN Universal ActiveX & LILIN Java Applet Embedded Linux 2.6.32 One-way Audio G.711 / PCM SD Card Recording Support Micro SD/SDHC card for circular recording (card is not included)
  • Page 13 LD2222E (1080P 15fps) 1080P HD DOME IP CAMERA Model No. LD2222E4 Focal Length Iris F1.6 Lens Angle of view 62.2°(H), 37.4 (D), 69.2 (D) ° ° Pick Up Element 1/2.5" CMOS Image Sensor Effective Pixels 1920(H) x 1080(V) = 2,073,600(pixel) Chip Size 5.70mm(H) x 4.28mm(V) Scanning System...
  • Page 14 Android support System Integration ONVIF & LILIN HTTP API CMX HD3.6 support Video Display LILIN Universal ActiveX & LILIN Java Applet Embedded Linux 2.6.32 One-way Audio G.711 / PCM SD Card Recording Support Micro SD/SDHC card for circular recording (card is not included) Design and specification are subject to change without notice.
  • Page 15 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-IPD222CSE...
