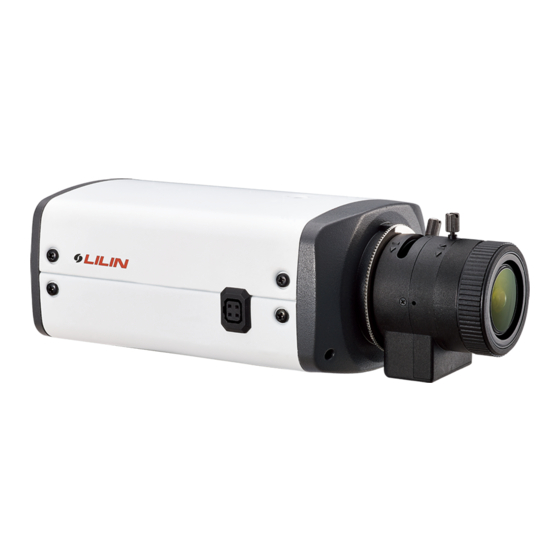

Day & Night 1080P HD IP Camera
Day & Night 3MP HD IP Camera
IPG1022ESX3 / IPG1032ESX3
Instr uction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPG1022ESX3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lilin IPG1022ESX3

  • Page 1 Day & Night 1080P HD IP Camera Day & Night 3MP HD IP Camera IPG1022ESX3 / IPG1032ESX3 Instr uction Manual...
  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GRAPHIC SYMBOL EXPLANATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...
  • Page 3 CAUTION Do not drop or strike this equipment. Sensitive electronics inside are vulnerable to excessive shock. Do not install the equipment near any naked flames or heat sources. Excessive heat could damage this unit. Do not expose this unit to rain or excessive moisture, avoid smoke and dust.
  • Page 4 CONGRATULATIONS Thank you for purchasing this D/N Megapixel HD IP Camera. You now own one of the many fine network products we manufactured. This product has been carefully inspected under rigid quality control and should reach you in perfect condition. With reasonable care, it will provide years of reliable performance.
  • Page 5 Android cell phone. The software R&D engineer can use HTTP protocol(HTTPAPI) or ONVIF protocol to develop related software, and integrate them with existing application software system. IPG1022ESX3 / IPG1032ESX3 series is ideal solution for remote video monitoring via internet.
  • Page 6: Part Description & Dimension

    PART DESCRIPTION & DIMENSION 122mm 50mm VIDEO OUT EXTIN RESET POWER AUDIO OUT AUDIO IN DC12V SD CARD 70mm...
  • Page 7 1. LENS MOUNT CAP   Prevent damages to the image sensor and to keep dust away. FOCAL LENGTH ADJUSTMENT RING AND LOCKING SCREW   Use this ring to adjusts the back-focal distance or picture focus. Rotate this   ring clockwise or counterclockwise for a CS-mount lens.  ...
  • Page 8 11. AUDIO OUTPUT 3.5mm PHONE JACK 12. DC12V POWER INPUT JACK   DC12V ( 10%) power input. ± 13. SD CARD SLOT   This network camera is compliant with SD/SDHC card. N.O. EXTIN +5V COM. GND 14. ALARM IN/OUT & EXTIN TERMINAL 1 2 3 4 5 6 +5V Output: Max.
  • Page 9 AUDIO INPUT MODE SETUP Access into web page setup menu, under audio adjustment setup menu, may select Audio Input mode to either camera front microphone or rear's Audio In (Line IN).
  • Page 10: Installation

    INSTALLATION SUITABLE LENSES The lens must be either a C or CS mount type. The protrusion behind the mounting surface must be within the following limits: C - mount lens CS - mount lens 9mm or less 4mm or less FITTING THE LENS Remove the lens mount cap.
  • Page 11 CAUTION Keep the lens mount cap on the camera when not attaching a lens. FITTING THE CAMERA 1. The mounting hole on the top or bottom of the camera. 2. Tighten the screw to the mounting hole. Please refer to the following drawing.
  • Page 12 Instr uction Manual 3. CD Software Pack 4. Lens and Bracket SYSTEM ARCHITECTURES For connecting IPG1022ESX3 / IPG1032ESX3 series to the network, please follow one of the system architectures: (1). Hardware Installation using a PoE Switch. LAN / Internet PoE Switch...
  • Page 13: Emergency Factory Default

    (3). Hardware Installation using DC12V Adaptor. LAN / Internet Non-PoE Switch IPG1022ESX3 IPG1032ESX3 DC12V Adaptor EMERGENCY FACTORY DEFAULT Use hardware to restore factory default settings, follow these steps: 1. Hold "RESET" key 10 seconds, then release. 2. After about 40 seconds, the network LED light is off, and then lit.
  • Page 14: Specifications

    SPECIFICATIONS 1080P Day/NIght HD IP Camera Day/Night 1080P HD IP CAMERA IPG1022ESX3 IPG1022ES Model No. 2.8 ~ 8mm (CS Mount) Focal Length - F1.2 Iris - Lens 100.1 ~ 35.8 ° ° - Angle of View 72.9 ~ 26.9 °...
  • Page 15 Support System Integration ONVIF & LILIN HTTP API CMX HD3.6 support Video Display LILIN Universal ActiveX & LILIN Java Applet Embedded Linux 2.6.32 Two-way Audio G.711 / PCM SD Card Recording Support SD/SDHC card for circular recording (card is not included) Alarm Input / Output Digital 1 input (TTL, +3~5V) / 1 Output (N.O.)
  • Page 16 3MP Day/NIght HD IP Camera Day/Night 3MP HD IP CAMERA IPG1032ESX3 IPG1032ES Model No. 2.8 ~ 8mm (CS Mount) Focal Length - F1.2 Iris - Lens 100.1 ~ 35.8 ° ° - Angle of View 72.9 ~ 26.9 ° ° -...
  • Page 17 Support System Integration ONVIF & LILIN HTTP API CMX HD3.6 support Video Display LILIN Universal ActiveX & LILIN Java Applet Embedded Linux 2.6.32 Two-way Audio G.711 / PCM SD Card Recording Support SD/SDHC card for circular recording (card is not included) Alarm Input / Output Digital 1 input (TTL, +3~5V) / 1 Output (N.O.)
  • Page 18 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-IPG1022CSE...

This manual is also suitable for:

Ipg1032esx3
