Summary of Contents for Lilin IPD2122S4.3

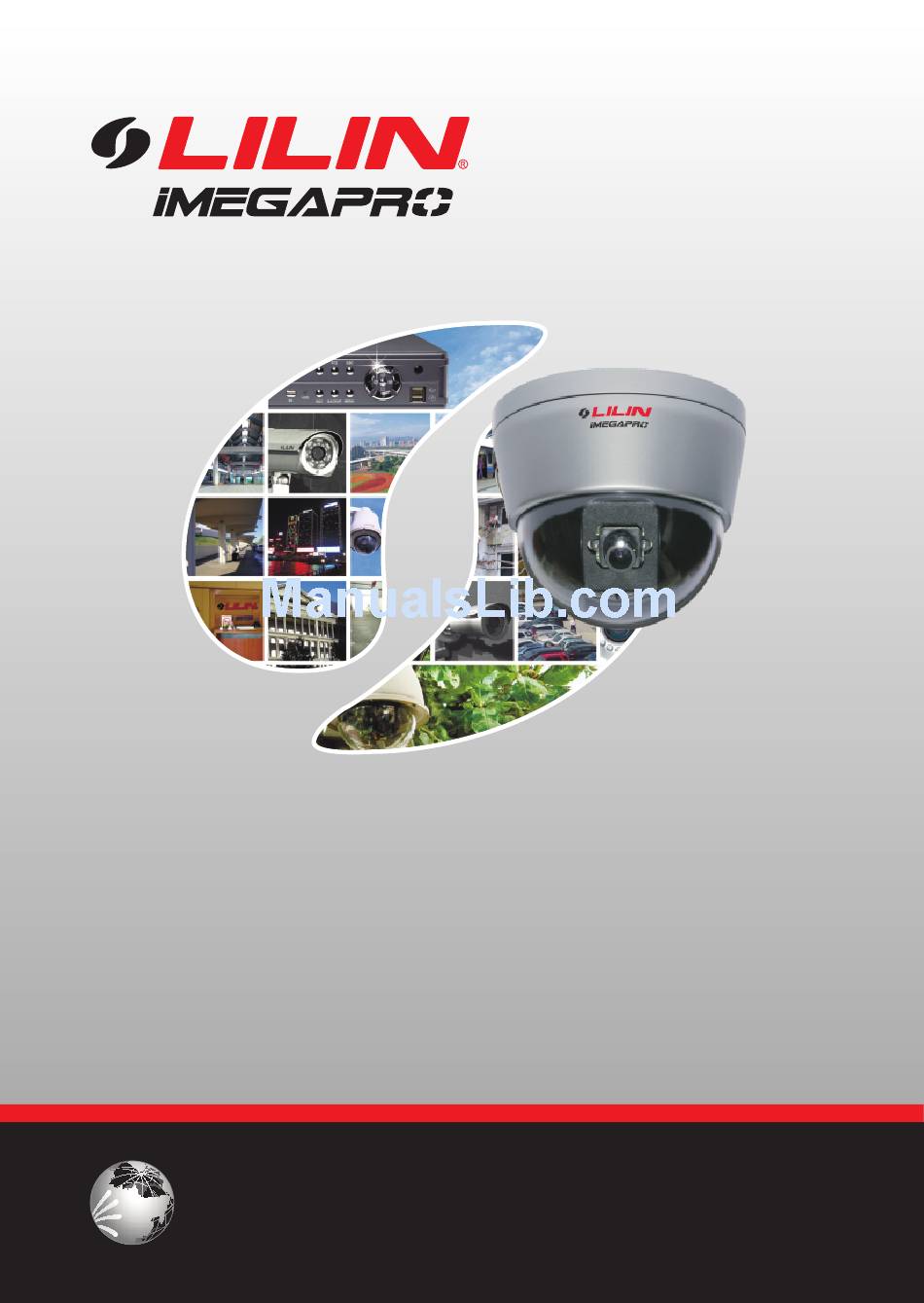

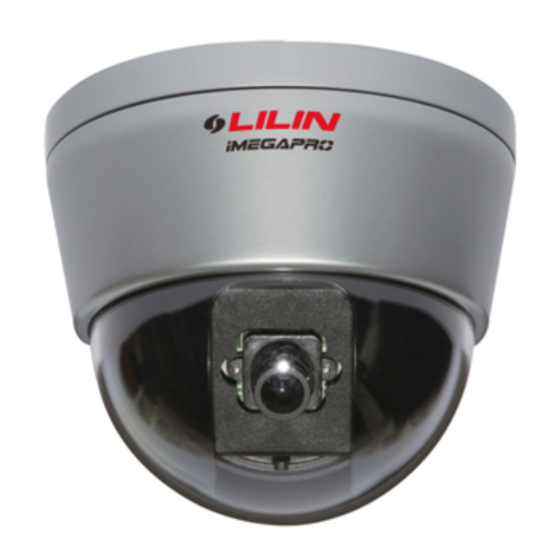

- Page 1 D/N 1080P HD Dome IP Camera IPD2122S4.3 Instr uction Manual...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION： TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GRAPHIC SYMBOL EXPLANATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... - Page 3 CAUTION Do not drop or strike this equipment. Sensitive electronics inside are vulnerable to excessive shock. Do not install the equipment near any naked flames or heat sources. Excessive heat could damage this unit. Do not expose this unit to rain or excessive moisture, avoid smoke and dust.
- Page 4 CONGRATULATIONS Thank you for purchasing this D/N 1080P HD Dome IP Camera. You now own one of the many fine network products we manufactured. This product has been carefully inspected under rigid quality control and should reach you in perfect condition. With reasonable care, it will provide years of reliable performance.
- Page 5 Executive Summary IPD2122S4.3 is an D/N 1080P HD Dome IP Camera, built-in H.264 AVC(Advanced Video Coding) video compression. H.264 AVC video compression engine supports high definition video quality, 1080P(1920x1080) resolution, bandwidth efficiency with PPPoE and DDNS. Also it provides higher bit rate of internet and diverse alarm functions such as movement video detection e-mail or FTP.
-
Page 6: Part Description & Dimension
PART DESCRIPTION & DIMENSION Unit: mm RJ-45 Network Cable ± DC12V Power Input Jack (DC12V 10%) Base Fix Ring Inside Cover Outside Cover Lens Reset Key To restore the server to factory default setting. Network Indicator LEDs Green(LINK): Network cable connected, this LED lit. Orange(ACT): Data communications, this LED flashes. -
Page 7: Installation
INSTALLATION 1. Put the provided screws (M3.0 x 25, wooden screw) through the holes marked as "a", and fix the base in the desired area (FIG.1). 120° FIG. 1 2. The direction of the lens is adjustable through the adjustable Pan/Tilt brackets and rotatable round bracket for Azimuth. - Page 8 3. Put on the inside cover first, and followed by put on the dome cover. Then tighten the fix ring(FIG.3). FIG. 3...
- Page 9 Instr uction Manual 3. CD Software Pack 4. Power Adaptor SYSTEM ARCHITECTURES For connecting IPD2122S4.3 to the network, please follow one of the system architectures: (1). Use DC12V power adapter and network switch connected to a network. LAN / Internet Non-PoE Switch IPD2122S4.3...
-
Page 10: Emergency Factory Default
(2). Use with PoE-powered network switch and the PoE splitter connected to a network. LAN / Internet PoE Switch PoE Splitter IPD2122S4.3 (DC12V) EMERGENCY FACTORY DEFAULT To restore the server to factory default settings, please: 1. Hold Reset Key for 10 second. -
Page 11: Specifications
SPECIFICATIONS D/N 1080P HD DOME IP CAMERA Model No. IPD2122S4.3 Focal Length 4.3mm Lens Iris F1.6 Angle of view 70°(H), 51°(V), 89°(D) Pick Up Element 1/2.7" CMOS Image Sensor Effective Pixels 1920(H) x 1080(V) = 2,073,600(pixel) Chip Size 5.856mm(H) x 3.276mm(V) - Page 12 Mobile Phone and PDA iPad, iPhone and Android support Support System Integration ONVIF & LILIN HTTP API Free CMX HD3.6 support Video Display LILIN Universal ActiveX & LILIN Java Applet Embedded Linux 2.6.32 Design and specification are subject to change without notice. 66-IPD2122CSE-1...
- Page 13 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-IPD2122CSE...
