Page 1: Quick Installation Guide

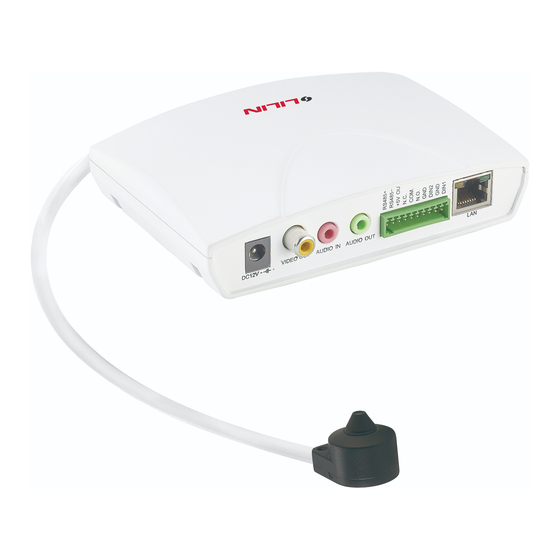

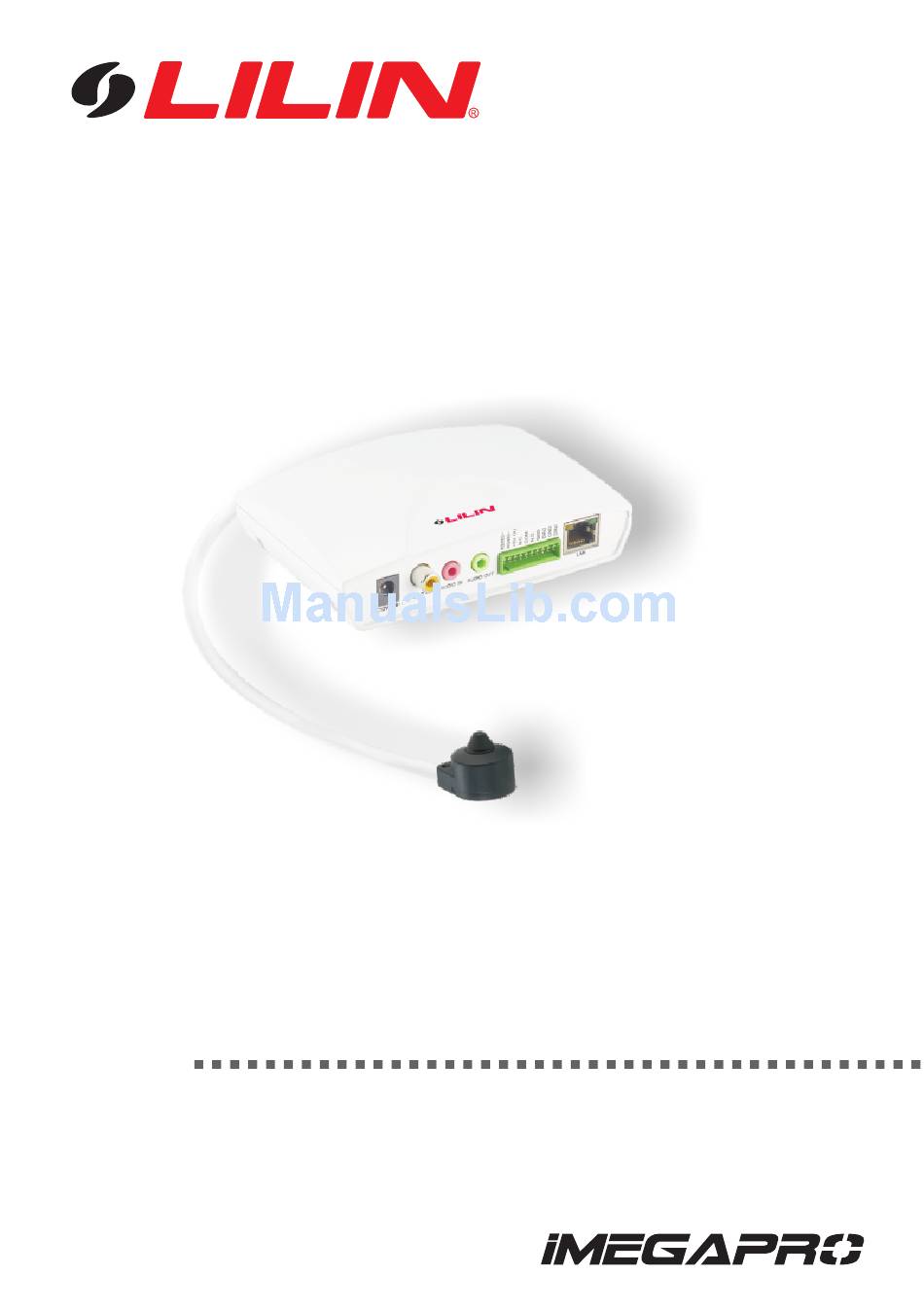

IPC0122P3 1080P HD Covert IP Camera Quick Installation Guide... - Page 2 CAUTION Do not drop or strike this equipment Do not install the equipment near any naked flames or heat sources Do not expose this unit to rain, moisture, smoke or dust environment Do not cover the opening of the cabinet with cloth and plastic or to install this unit in poor ventilated places.
-
Page 4: Product Overview
Product Overview Unit: mm ① Indicator LEDs Green: System status display. Orange: SD status dsiplay. Red: Alarm status display. ② RJ-12 Image Sensor Unit Input Connector ③ Detection Sensor Input Connector (optional) ④ Micro SD Card Slot - 1 -... -
Page 5: Installation
⑤ Reset Key ⑥ DC12V Power Input Jack (DC12V±10%) ⑦ Live Video Output RCA Jack ⑧ Audio Input 3.5mm Phone Jack ⑨ Audio Output 3.5mm Phone Jack ⑩ Alarm In/Out and RS-485 Terminal ⑪ RJ-45 Network Connector and Indicator LEDs Green (LINK): Network connection. - Page 6 Image Sensor Unit Installation 1. Drill a hole with 5mm diameter in the panel or wall (FIG.3). 2. Pull off the protector and attach the mounting bracket to the panel (FIG.4). 3. Insert the sensor unit into the bracket (FIG.5), and fasten with the screw.
- Page 7 System Architectures For connecting Covert IP camera the network, please follow one of the system architectures: (1). Use a DC12V power adapter and a network switch to connect to the network. (2). Use a PoE network switch to connect to the network. (3).
-
Page 8: Emergency Factory Default
Emergency Factory Default To restore factory default settings by hardware, please follow these steps: 1. Hold “RESET Key” for 10 seconds, then release. 2. After about 40 seconds, the network LED light should turn off, and the back on again. 3. -
Page 9: Software Requirements
IPScan software from the installation CD, and paste to your computer. Alternatively, you can execute the IPScan software from the installation CD, or download the software from the Merit LILIN website (www.meritlilin.com). To change the settings of the IP address, subnet mask, gateway, or HTTP port, you can follow the steps below: 1. - Page 10 Configuring IP Addresses via Web Interface To change an IP address via web interface, type the default IP address (192.168.0.200) in the Internet browser and follow the steps below: 1. Login to the H.264 Full HD IP camera by the default username “admin”...
- Page 11 Once complete, you can access the IP camera’s live video by entering the default IP address via your Internet browser. As the security warning dialog box appears, click OK to download the ActiveX directly from the IP camera. Login There are two levels of user authentication, including admin and guest, that can access the IP camera.
- Page 12 The default usernames and passwords are as follows: Administrator Username admin Password pass To logon the H.264 FULL HD IP camera, please type username and password in logon HTML page and click on Submit button to enter the system. - 9 -...
- Page 13 66-IPC0122CSM...
