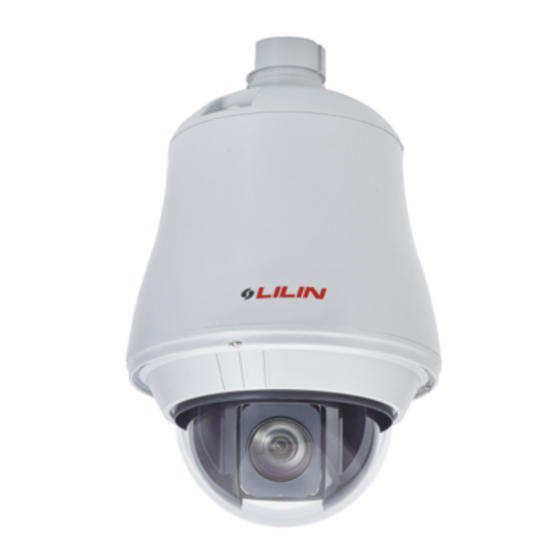

- Page 1 22X D/N WDR 1.3MP HD Fast Dome IP Camera INSTRUCTION MANUAL...
-
Page 2: Key Features
ONVIF conformant with all these features integrated within one camera. LILIN’s CMX Software system solution with H.264 video server or HD fast dome IP PTZ camera series can provide integrated system solution in migrating to IP Video application. - Page 3 Sample code and document are included in product CD and can be downloaded from our company website. LILIN HTTP API For non-ONVIF integration, please see LILIN HTTP API document. We adopt HTTP API document for all LILIN IP cameras. Caution...
-
Page 4: Table Of Contents
Table of Content Chapter 1 System Overview ............................4 Chapter 2 Before Accessing IP Camera........................5 Chapter 2-1 Configure IP Address Using IPScan Utility ..................5 Chapter 2-2 Configure IP Address Using HTML Page..................5 Chapter 2-3 Internet Browser Setting & Software Component Required..............6 Chapter 2-4 Login ..............................6 Chapter 3 Start Using the Camera ..........................7 Chapter 3-1 IP Camera Operational HTML Page ....................7... -
Page 5: Chapter 1 System Overview
Merit LILIN Universal ActiveX software components are required for web interface for displaying JPEG or H.264 video. When you first time login the IP camera using Internet Explorer, it prompts for a security warning dialog box for downloading LILIN Universal ActiveX. Please click on Install button to download. -
Page 6: Chapter 2 Before Accessing Ip Camera
Chapter 2 Before Accessing IP Camera Before accessing to the IP camera, make sure that the camera’s RJ-45 network cable, audio cable, and IP camera’s power cable are properly installed. For setup IP address, please consult your network administrator for available IP addresses. The default IP address of IP camera is 192.168.0.200. -
Page 7: Chapter 2-3 Internet Browser Setting & Software Component Required
Chapter 2-3 Internet Browser Setting & Software Component Required Make sure that your Internet Browser allows signed ActiveX plug-in running on your PC. Set “Download Signed ActiveX plug-in controls” to “Prompt” and “Run ActiveX control and plug-in” to “Enable” at Internet Explorer->Tools->Options->Security Settings. After finishing above security settings, accessing IP camera’s live video by default IP address of IP camera using Internet Explorer will prompt a Security Warning dialog box. -
Page 8: Chapter 3 Start Using The Camera
Chapter 3-1 IP Camera Operational HTML Page Operational HTML page layout 1. Camera Control panel—IP camera control panel. 2. LILIN Universal ActiveX control—Display RTSP H.264 or JPEG network video. 3. Profile switching menu—Switching one profile to another 4. Setup menu—IP camera setup menu 5. -
Page 9: Chapter 3-2-1 Pt Mode
Chapter 3-2-1 PT Mode There are four Pan and Tilt Modes (PT) for users to operate the PTZ device. To select one of the PT modes, please click on the icon under PT Mode panel. PT mode PT mode with speed Lower speed (inner) Higher speed (outer) Pan mode at absolute position... -
Page 10: Chapter 3-2-3 Camera Control Panel
Chapter 3-2-5 Record in a Local PC To record into a local PC, please first right-click on LILIN Universal ActiveX control. It shows up in the setting dialog box. A user can specify the recording path and recording size. Please make sure that the ePTZ or ROI feature is unchecked for displaying recording setting dialog box by right-mouse-click. -
Page 11: Chapter 3-3-1 Server Settings
Chapter 3-3-1 Server Settings Server settings contain H.264 HD video server or IP PTZ camera server’s system information such as MAC address, firmware version, users, system timer, and other system settings. To change or to use these options, please follow the instructions at this section. MAC Address Network MAC address of the video server or camera Firmware Version &... -
Page 12: Chapter 3-3-2 User Settings
Chapter 3-3-2 User Settings There are ten user accounts allowed for the system. Each account can be configured for its access rights. To add/edit a user, please click on Add/Edit User button. To access H.264 HD video server or IP PTZ camera without authentication, set Bypass Logon radio button to ON. To change account name, please type the new account name in Account edit box. -
Page 13: Chapter 3-3-4 System Setting
Synchronize with a PC A user can synchronize the PC system timer to the IP camera's system timer. Chapter 3-3-4 System Setting Load Default feature allows to load manufacturing default. There are certain critical settings such as IP addresses and video system which are not affected by this operation. To reboot H.264 HD video server or IP PTZ camera, click on Reboot System hyper link. -
Page 14: Chapter 3-4-2 Dhcp Setting
For Internet access configuration, please contact your local ISP for global IP address. Once the physical Internet connection gets installed, enter IP address (global), Subnet Mask, and Gateway IP from the ISP. • Default DNS IP Address—Primary Domain Name Server, the IP address of the domain name server •... -
Page 15: Chapter 3-4-4 Smtp Service
Chapter 3-4-4 SMTP Service Alarm or motion notification feature can send an alarm or motion detection snapshot to an E-mail account. To enable alarm or motion sending E-mail feature, please setup the following email accounts. E-mail receiver setting E-mail address— E-mail address of the recipient E-mail sender setting E-mail address—... -
Page 16: Chapter 3-4-6 Ddns Settings
IP camera, if the IP camera is on Internet. Chapter 3-4-7 UPnP Settings UPnP service is a plug-n-play protocol. By clicking on network node of Windows File Explorer, you can find LILIN cameras that are discovered by Windows via UPnP protocol. -
Page 17: Chapter 3-5 Video Settings
Chapter 3-5 Video Settings This section describes the details in setting the H.264 video’s attributes. The settings of bit rate control, video input, and video resolution can be configured. Chapter 3-5-1 Video General For transmitting H.264 video over low bandwidth network such as Internet, please set the bit rate close to network upload bandwidth. -
Page 18: Chapter 3-5-3 Video Quality
Alarm Interval Chapter 3-5-3 Video Quality Under the tab < Video Quality >, there are categories including: < Camera Advanced Ⅰ > and < Camera Advanced Ⅱ >. 3-5-3.1 Camera Advance Ⅰ Ⅰ Ⅰ Ⅰ Camera Advanced Ⅰ Setting Menu can be found under this path: Video Quality > Camera Advanced Ⅰ... - Page 19 ■ Exposure In the Exposure Mode Setting users can select Auto, Shutter, Iris and Fix four modes. Exposure-Auto Mode In this mode can adjust the parameter of the Brightness/Flickerless/AGC Limit/Shutter Limit. Exposure-Iris Mode In this mode can adjust the parameter of the Brightness/Shutter/Flickerless/AGC Limit. Exposure-Shutter mode In this mode can adjust the parameter of the Brightness/Lens Iris/AGC Limit/Shutter Limit.
-
Page 20: Chapter 3-6 Ptz Settings
3D-DNR LEVEL When 3D-DNR MODE is ON or AUTO, 3D-DNR reduction level change. Low/Mid/High ■ WDR Function Select D-WDR function. Off/Low/Mid/High When the high luminance part and the low illumination part are detected, the suppression low illumination part is raised, and a high luminance part is adjusted in the contrast. ■... -
Page 21: Chapter 3-6-2 Ptz Advanced Settings
Totally 128 Preset Points can be programmed for the IP Camera. Please refer to the instructions below to set a Preset Point. Preset Setting To setup a Preset Point, please first move the cursor to the PTZ control panel. Then move camera to desired position by using pan, tilt, and zoom buttons. - Page 22 3-6-2.2 Pan-Tilt Setup Pan-Tilt Setting Menu can be found under this path: PTZ> PTZ Advance> Pan-Tilt Setup In the Pan-Tilt Setup Menu, users can set various Pan-Tilt parameters including Home Position, Self Return Time, Self Return Mode and Auto Mode. Each setting is specified as follows: Home Position Specify home position for one of the presets.
- Page 23 3-6-2.4 Tour Setup The Tour Path Programming can be found under this path: PTZ> PTZ Advance> Tour Setup The IP Fast Dome Camera supports totally four Tour Path; each Tour Path consists of up to 32 Preset Points. Please refer to the instructions below to program a Tour table. NOTE: Before setting this function, users must pre-define at least two Preset Points.
-
Page 24: Chapter 3-6-3 Ptz Schedule Settings
Chapter 3-6-3 PTZ Schedule Settings To setup PTZ scheduling, please select PTZ schedule link. Use the mouse select on the radio button of the preset types, None, Autopan, Preset #1, Preset #2, Preset #3, and Preset #4. Click on the hour of the calendar control to configure the preset action. Chapter 3-7 SD Card Recording To record video on SD Card, please insert SD card into the SD card slot. -
Page 25: Chapter 3-8 Alarm Settings
Chapter 3-8 Alarm Settings H.264 D1 video server or IP PTZ camera’s hardware alarm system contains motion detection, alarm sensors, and one alarm/relay output. Many alarm features such as motion/alarm email notification and FTP archiving can be found at this section. Chapter 3-8-1 Motion/Alarm Setup There are motion detection zones allowed in the H.264 D1 video server or IP PTZ camera. -
Page 26: Chapter 3-8-4 Audio Detection
Chapter 3-8-4 Audio Detection For audio model, the IP camera has audio detector detecting acoustic level. If the volume exceeds the audio sensitivity value, audio detector triggers an alarm for notification. Chapter 3-9. Audio Setting Audio setting is based on the following: MIC Volume: MIC or line input volume Audio Input Mode: Choose MIC input or Line input. -
Page 27: Appendix
Port 80: 192.168.0.10 Port 81: 192.168.0.11 IP: 192.168.0.11 IP: 192.168.0.10 iPhone Access To use Live Cams Pro (Eggman Technologies Inc.) for LILIN IP cameras. Please use your iPhone and select AppStore for download Live Cams Pro application developed by Eggman Technologies Inc. -
Page 28: Android Access
Execute Live Cams Pro application. Please click on “Add Camera” button on your phone while using Live Cams Pro. Task bar gets prompted as below: Please selection one of the following drivers for cameras: Profile 1: H.264 HD or D1 IP camera. Android Access: Please use your Android phone and select Android Market for downloading IP Cam Viewer/IP Cam Viewer Lite application developed by Robert Chou. -
Page 29: Emergency Factory Default
Name: Name of the IP camera or DVR’s camera Category: Please select Merit LILIN. Type: Select device type, Merit LILIN D1/Merit LILIN HD/Merit LILIN DVR. IP Address: Please type IP address, for example http://59.124.49.36:60005 where 60005 is the port number. -
Page 30: Specification
Android support ONVIF 及 LILIN HTTPAPI System integration CMX HD 3.6 support Video display LILIN Universal ActiveX & LILIN Java Applet Embedded Linux 2.6.32 Two-way Audio G.711 Design and specification are subject to change without further notice. - Page 31 DISTRIBUTOR： 66-IPS622EOO-1...
