Summary of Contents for Lilin IPR414/418ESX3

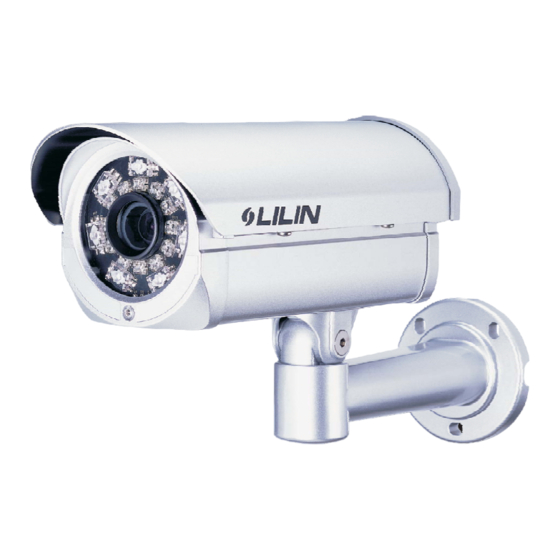

- Page 1 D/N CMOS HD VARI-FOCAL INFRARED IP CAMERA IPR414/418ESX3 INSTRUCTION MANUAL...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS 1. Read Instructions All the safety and operating instructions should be read before the unit is operated. 2. Retain Instructions The safety and operating instructions should be retained for future reference. 3. Head Warnings All warnings on the unit and in the operating instructions should be adhered to. 4. -
Page 3: Executive Summary
Connection cables should be grounded properly. Executive Summary IPR414/418ESX3 is an outdoor HD Infrared IP camera build in H.264 AVC (Advanced Video Coding) video compression. H.264 AVC video compression engine supports high definition video quality, 720P resolution, bandwidth efficiency with PPPoE and DDNS. -
Page 4: Chapter 1. Part Description & Dimension
Chapter 1. Part Description & Dimension 82.55 SUN SHIELD TOP COVER BOTTOM CHASSIS 211.5 BRACKET PAN ADJUSTMENT SCREW Unit : mm TILT ADJUSTMENT SCREW WINDOW SENSOR CAP Chapter 2. Installation 1. Take out the bracket from the box first. Put the power cable, RJ-45 network cable and video cable through the bracket and then fix it ot the wall (FIG.1 &... - Page 5 2. Secondly, take out the camera body and open the top cover with screw driver (FIG.3) F I G . 3 3. Put the power cable, RJ-45 network cable and video cable through the bracket rubble first and then go through the bottom of camera body (FIG.4). Plug and fix the power cable to the terminal, plug the RJ-45 network cable to RJ-45 LAN connector, and plug the video cable to output of the camera (FIG.5).
-
Page 6: Chapter 3. System Overview
6. First, adjust the lens on focus and zoom to form the optimal video image after that tighten the screws. Adjust the IRIS level VR to form the optimal image brightness (FIG.8). F O C U S o r Z O O M Z O O M o r F O C U S I R I S L E V E L F I G . -
Page 7: Chapter 4. System Architectures
Chapter 4. System Architectures For connecting IPR414/418ESX to the network, please follow one of the system architectures: (1) Hardware Installation using a PoE Switch. LAN / Internet PoE+(30W) Switch IPR414/418ESX (2) Hardware Installation using a non-PoE Switch. LAN / Internet Non-PoE Switch PoE+(30W) Power Injector... -
Page 8: Chapter 5. Specifications
Chapter 5. Specifications OUTDOOR D/N CMOS HD VARI-FOCAL INFRARED IP CAMERA Model No. IPR414ESX3 IPR418ESX3 Focal Length 3 ~ 9mm Iris F1.2 Lens 62.3 ~ 21.2 Angle of view 45.8 ~ 15.9 79.7 ~ 26.5 Pick Up Element 1/4" Progressive scan CMOS sensor Effective Pixels 1280(H) x 800(V) = 1,024,000 (pixel) Chip Size... - Page 9 Mobile Phone and PDA PDA, BlackBerry, and iPhone System Integration ONVIF Free CMX support Video Display LILIN Universal ActiveX / Quick Time Embedded Linux 2.4.19 Two-way audio G.711 / PCM SD Card recording Support SD/SDHC card for circular recording (card is not included) Alarm Input / Output Digital 1 input(TTL, +3~5V) / 1 output (N.O.)
- Page 10 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-IPR414CSE...
