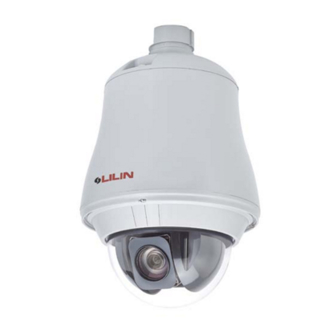

Lilin IPS4184E Instruction Manual

Outdoor 2mp 18x/20x/30x poe d/n hd fast dome ip camera indoor 2mp 18x/20x/30x d/n hd fast dome ip camera 2mp outdoor/indoor 1.3mp 22x poe d/n hd fast dome ip camera 10x poe d/n hd fast dome (ir) ip camera
Hide thumbs Also See for IPS4184E:
Table of Contents

Advertisement

Quick Links

Outdoor 2MP 18X/20X/30X PoE D/N HD Fast Dome IP Camera
Indoor 2MP 18X/20X/30X D/N HD Fast Dome IP Camera
Outdoor/Indoor 1.3MP 22X PoE D/N HD Fast Dome IP Camera
2MP
10X PoE D/N HD Fast Dome (IR) IP Camera
IPS4184E/4188E, IPS4204E/4208E, IPS4304E/4308E
IPS5184/5188/5180E, IPS5204/5208/5200E, IPS5304/5308/5300E
IPS6224E/6228E, IPS7224/7228/7220E
IPS2102E, IPS3102E
Instr uction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPS4184E and is the answer not in the manual?

Questions and answers

Related Manuals for Lilin IPS4184E

Summary of Contents for Lilin IPS4184E

  • Page 1 Outdoor 2MP 18X/20X/30X PoE D/N HD Fast Dome IP Camera Indoor 2MP 18X/20X/30X D/N HD Fast Dome IP Camera Outdoor/Indoor 1.3MP 22X PoE D/N HD Fast Dome IP Camera 10X PoE D/N HD Fast Dome (IR) IP Camera IPS4184E/4188E, IPS4204E/4208E, IPS4304E/4308E IPS5184/5188/5180E, IPS5204/5208/5200E, IPS5304/5308/5300E IPS6224E/6228E, IPS7224/7228/7220E IPS2102E, IPS3102E...

  • Page 2: Key Features

    Executive Summary This H.264 video server or HD fast dome IP PTZ camera uses the latest compression technologies providing Quadruple Streaming of H.264 and JPEG in different resolutions. It's Quadruple Streaming technologies allow transmitting digital video at various bitrate and frame rate to fit both high and low bandwidth network environment.
  • Page 3 Sample code and document are included in product CD and can be downloaded from our company website. LILIN HTTP API For non-ONVIF integration, please see LILIN HTTP API document. We adopt HTTP API document for all LILIN IP cameras. Caution...

  • Page 4: Table Of Contents

    Table of Content Chapter 1 System Overview..........................4 Chapter 1-1 System Requirements ......................4 Chapter 1-2 Software Requirements ......................4 Chapter 2 Before Accessing IP Camera ......................5 Chapter 2-1 Configure IP Address Using IPScan Utility ................5 Chapter 2-2 Configure IP Address Using HTML Page ................5 Chapter 2-3 Internet Browser Setting &...

  • Page 5: Chapter 1 System Overview

    Merit LILIN Universal ActiveX software components are required for web interface for displaying JPEG or H.264 video. When you first time login the IP camera using Internet Explorer, it prompts for a security warning dialog box for downloading LILIN Universal ActiveX. Please click on Install button to download.

  • Page 6: Chapter 2 Before Accessing Ip Camera

    Chapter 2 Before Accessing IP Camera Before accessing to the IP camera, make sure that the camera’s RJ-45 network cable, audio cable, and IP camera’s power cable are properly installed. For setup IP address, please consult your network administrator for available IP addresses. The default IP address of IP camera is 192.168.0.200.

  • Page 7: Chapter 2-3 Internet Browser Setting & Software Component Required

    Chapter 2-3 Internet Browser Setting & Software Component Required Make sure that your Internet Browser allows signed ActiveX plug-in running on your PC. Set “Download Signed ActiveX plug-in controls” to “Prompt” and “Run ActiveX control and plug-in” to “Enable” at Internet Explorer->Tools->Options->Security Settings. After finishing above security settings, accessing IP camera’s live video by default IP address of IP camera using Internet Explorer will prompt a Security Warning dialog box.

  • Page 8: Chapter 3 Start Using The Camera

    Chapter 3-1 IP Camera Operational HTML Page Operational HTML page layout 1. Camera Control panel—IP camera control panel. 2. LILIN Universal ActiveX control—Display RTSP H.264 or JPEG network video. 3. Profile switching menu—Switching one profile to another 4. Setup menu—IP camera setup menu 5.

  • Page 9: Chapter 3-2-1 Pt Mode

    Chapter 3-2-1 PT Mode There are four Pan and Tilt Modes (PT) for users to operate the PTZ device. To select one of the PT modes, please click on the icon under PT Mode panel. PT mode PT mode with speed Lower speed (inner) Higher speed (outer) Pan mode at absolute position...

  • Page 10: Chapter 3-2-3 Camera Control Panel

    Chapter 3-2-5 Record in a Local PC To record into a local PC, please first right-click on LILIN Universal ActiveX control. It shows up in the setting dialog box. A user can specify the recording path and recording size. Please make sure that the ePTZ or ROI feature is unchecked for displaying recording setting dialog box by right-mouse-click.

  • Page 11: Chapter 3-3-1 Server Settings

    Chapter 3-3-1 Server Settings Server settings contain H.264 HD video server or IP PTZ camera server’s system information such as MAC address, firmware version, users, system timer, and other system settings. To change or to use these options, please follow the instructions at this section. MAC Address Network MAC address of the camera AP Firmware Version...

  • Page 12: Chapter 3-3-2 User Settings

    ActiveX OSD Name Display camera OSD name on only ActiveX. Low Latency Mode Enable: ActiveX will cache 15 frames for smooth video. Chapter 3-3-2 User Settings There are ten user accounts allowed for the system. Each account can be configured for its access rights.

  • Page 13: Chapter 3-3-4 System Setting

    Synchronize with NTP To synchronize Internet time system, check Auto Synchronize option to “Every Hour”. H.264 HD video server or IP PTZ camera synchronizes its system timer with a time server every hour. Note: Network Time Protocol feature requires Internet connection. Synchronize with a PC A user can synchronize the PC system timer to the IP camera's system timer.

  • Page 14: Chapter 3-4-2 Dhcp Setting

    user can use this IP address to verify the network connection between a local PC and H.264 HD video server or IP PTZ camera using Web Browser. For local area network configuration, please enter, at least, IP address, Subnet Mask, and Gateway IP. Click Submit button to update these settings.

  • Page 15: Chapter 3-4-4 Smtp Service

    Note: For low latency application, please select RTSP/UDP streaming option. Chapter 3-4-4 SMTP Service Alarm or motion notification feature can send an alarm or motion detection snapshot to an E-mail account. To enable alarm or motion sending E-mail feature, please setup the following email accounts. E-mail receiver setting E-mail address—...

  • Page 16: Chapter 3-4-6 Ddns Settings

    FTP server IP/DNS— IP address or domain name of the FTP server Account— Account of the FTP server Password— Password of the account Directory—File path for storing the JPEG snapshots Prefix—Prefix of the JPEG filename Date format—Date format string for the JPEG filename Postfix—Postfix of the JPEG filename Auto FTP sent—Constantly send JPEG...

  • Page 17: Chapter 3-4-7 Upnp Settings

    To use www.ddnsipcam.com, you can use the last 6 digits of the MAC address for the host name and default account. The default password is "pass". If the IP camera is on Internet with global IP address, you can access it directly the IP camera by using DDNS host name. The IP camera tries to automatically register to www.ddnsipcam.com without further registering.

  • Page 18: Chapter 3-5-2 Alarm Weighted Mode

    [IPS418x/518x, IPS210x/310x, [IPS622x/722x models] IPS420x520x, IPS430x/530x models] Profiles : Selections of streaming combination. Profile Name: Description of the streaming profile Compression : Compression type of the streaming profile (JPEG or H.264 format). Resolution : The resolution of the streaming profile. Bit Rate : Maximum bit rate available for network connection based on actual bandwidth requirements.

  • Page 19: Chapter 3-5-3 Video Quality Setting

    Chapter 3-5-3 Video Quality Setting 3-5-3.1 Camera Advance I Setting [IPS622x/722x, IPS418x/518x, IPS210x/310x Models] Camera Advance I Setting menu can be found under this path : Video/Quality/Camera Advanced I In the Camera Advanced I setup menu, you can set various camera parameters including Day/Night Mode, Mirror and Flip function.

  • Page 20: 3-5-3.2 Camera Advance Ii Setting

    Auto Mode When the setting is set to “Auto”, IR activation is according to the light source signal strength automatically switch day(color) or night(black and white) mode. Day Mode IR cut feature is forced to be always on. Night Mode IR cut feature is removed.
  • Page 21 Exposure-Fix Mode In this mode, AGC Limit and Shutter Limit are fixed. And you can adjust parameters of the Brightness, Lens Iris, Shutter, AGC and Flickerless in Advanced Adjust Option. Advanced Adjust Option : Brightness This parameter is to adjust the brightness of the image. Setting range is 0~32, default value is Lens Iris When Exposure mode is in Shutter or Fix mode, you can adjust Lens Iris.
  • Page 22 WDR Function White Balance Mode (WBM): A camera needs to measure the current color temperature, and use an algorithm to automatically process the image so that the final output image may be close to what the human eye sees. Under some particular situations, however, users can also manually adjust the white balance parameters to achieve what they consider to be the best-balanced pictures.
  • Page 23 HLC Function [IPS418x/518x Models] Camera Advance II Setting menu can be found under this path : Video/Quality/Camera Advanced II In the Camera Advanced II setup menu, you can set various camera parameters including Exposure, White Balance, Sharpness, DNR and WDR function. Each setting is specified as follows: Exposure: In the Exposure setting mode you can select Auto and Manual mode.
  • Page 24 Fix Gain Position(FGP) Manual Fix Gain Position (6dB, 8dB, 10dB, 12dB, 14dB, 16dB, 18dB, 20dB, 22dB, 24dB, 26dB and 28dB, default value is 8dB). White Balance Mode (WBM) : A camera needs to measure the current color temperature, and use an algorithm to automatically process the image so that the final output image may be close to what the human eye sees.
  • Page 25 [IPS210x/310x Models] Camera Advance II Setting menu can be found under this path : Video/Quality/Camera Advanced II In the Camera Advanced II setup menu, you can set various camera parameters including Exposure, White Balance, Sharpness, Brightness, DNR, Defog, BLC/D-WDR and Digital zoom function. Each setting is specified as follows: Exposure Mode : In the Exposure setting mode you can select AGC, Auto and Manual mode.
  • Page 26 manually adjust the white balance parameters to achieve what they consider to be the best-balanced pictures. The unit for measuring this ratio is in degree Kelvin (K). Users can select one of the White Balance Control modes according to the operating environment. There are five modes which you can specify.
  • Page 27 [IPS420x/520x Models] Camera Advance II Setting menu can be found under this path : Video/Quality/Camera Advanced II In the Camera Advanced II setup menu, you can set various camera parameters including Exposure, White Balance, Sharpness, DNR and WDR function. Each setting is specified as follows: Exposure Mode: In the Exposure setting mode you can select Auto and Manual mode.
  • Page 28 Exposure-Manual Mode: Fix shutter speed, iris position and gain position manually. Fix Shutter Speed (FSS) Manual fix shutter speed (1/1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/180, 1/250, 1/500, 1/k, 1/2k, 1/4k, 1/10k and 1/30k, default value is 1/30). Fix Iris Position (FIP) Manual fix iris position (F1.6, F2.3, F3.2, F4.5, F6.4, F9.0, F12.8, F18.1, F25.6 and F36.2, default value is F1.6).
  • Page 29 [IPS430x/530x Models] Camera Advance II Setting menu can be found under this path : Video/Quality/Camera Advanced II In the Camera Advanced II setup menu, you can set various camera parameters including Exposure, White Balance, Sharpness, DNR, WDR, Defog and EIS function. Each setting is specified as follows: Exposure Mode: In the Exposure setting mode you can select Auto and Manual mode.
  • Page 30 Iris Position is as follows: F1.6, F2.3, F3.2, F4.5, F6.4, F9.0, F12.8, F18.1, F25.6 and F36.2, default value is F1.6. Exposure-Manual Mode: Fix shutter speed, iris position and gain position manually. Fix Shutter Speed (FSS) Manual fix shutter speed (1/1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/180, 1/250, 1/500, 1/k, 1/2k, 1/4k, 1/10k and 1/30k，default value is 1/30).

  • Page 31: 3-5-3.3 Camera Advance Iii Setting

    Defog : Defog-1 has the weakest effect and defog-3 has the strongest effect. Image noise and luminance level difference stands out when Defog effect is strong. Please select the optimal mode according to the image condition. Defog-Auto mode enables camera to judge fog thickness and automatically determine the strength of the effect depending on the fog thickness.
  • Page 32 Mask No. : Set up twenty four mask zones. Drop-down options for 1~24. Mask can be displayed on 8 places simultaneously. Mask : Enable/disable the selected mask zone number. Mask Hsize : Set the mask area width. Drop-down options 3~80. Mask Vsize : Set the mask area Height.
  • Page 33 Mask No. : Set up fourteen mask zones. Drop-down options for 1~14. Mask can be displayed on 8 places simultaneously. Mask : Enable/disable the selected mask zone number. Mask Color : The left side of drop-down menu is the color selection (Black, White, Red, Green, Blue, Cyan, Yellow and Magenta) for you to add and edit a mask.
  • Page 34 Mask No. : Set up eight mask zones. Drop-down options for 1~8. Mask can be displayed on 8 places simultaneously. Mask Color : The drop-down menu is the color selection for you to add and edit a mask. There are up to 16 colors and color inversion and mosaic effects for you to choose. Mask Wsize : Set the mask area width.
  • Page 35 Mask No. : Set up eight mask zones. Drop-down options for 1~8. Mask can be displayed on 8 places simultaneously. Mask Color : The drop-down menu is the color selection (Black, White, Red, Green, Blue, Cyan, Yellow and Magenta) for you to add and edit a mask. See through picture display setting while mask-zone is setting.

  • Page 36: Chapter 3-6 Ptz Settings

    Mask No. : Set up eight mask zones. Drop-down options for 1~16. Mask can be displayed on 16 places simultaneously. Mask Color : The drop-down menu is the color selection (Black, White, Red, Green, Blue, Cyan, Yellow and Magenta) for you to add and edit a mask. See through picture display setting while mask-zone is setting.

  • Page 37: Chapter 3-6-2 Ptz Advanced Settings

    Chapter 3-6-2 PTZ Advanced Settings 3-6-2.1 Lens Advance [IPS622x/722x Models] Lens Advance setting menu can be found under this path : PTZ/PTZ Advanced/Lens Advance Focus Mode : Auto Focus and One-Push Auto Focus Auto Focus The minimum focus distance is 10cm at the optical wide end and 1m at the optical tele end. One-Push Auto Focus Focus hold mode that can be automatically readjusted as required by the user (One-Push AF Trigger) assuming that the required subject is within the focusing limits of the camera lens.
  • Page 38 Preset Position : AF/Manual AF. When the camera performs preset operations, its focus mode is at Auto-Focus (AF) or Manual-Focus (MF) mode [IPS418x/518x Models] Lens Advance setting menu can be found under this path : PTZ/PTZ Advanced/Lens Advance Focus Mode :Normal Auto Focus (AF), Interval AF and Zoom Trigger Mode Normal AF Mode This is normal mode for AF operations.

  • Page 39: 3-6-2.2 Pan-Tilt Setup

    Focus Sensitivity : Focus sensitivity (Normal/Low). Zoom Speed : Zoom speed adjustment (between 0~7, default value is 0). Focus Speed : Focus speed adjustment (between 0~7, default value is 0). Lens Initialize : It initializes zoom and focus of the Lens manually. Auto Calibration : When you open this function, your camera will automatically perform AF at 00:00 every night.

  • Page 40: 3-6-2.3 Auto Scan Setup

    Return Time, Self Return Mode and Auto Mode. Each setting is specified as follows: Home Position Specify home position for one of the presets. Self Return Time User Define if IP Fast Dome idles for a period of time, the selected function will be activated automatically.

  • Page 41: 3-6-2.5 Patrol Setup

    Tour Path Setting Tour Path Please select the number of Tour Path to be set from the drop-down list in the top of the Tour Setup menu. Sequential Preset Points Setting Please setup each Preset Point of the programmed Tour Path in order, assigning a Preset Point from the <Item>...

  • Page 42: Chapter 3-7 Sd Card Recording

    Chapter 3-7 SD Card Recording To record video on SD Card, please insert SD card into the SD card slot. Enable SD card recording feature. The IP camera can start to record video into the SD card. Chapter 3-7-1. SD Card Recording Setting For SD card recording setting, please see the following for detail.

  • Page 43: Chapter 3-8 Alarm Settings

    Chapter 3-8 Alarm Settings H.264 D1 video server or IP PTZ camera’s hardware alarm system contains motion detection, alarm sensors, and one alarm/relay output. Many alarm features such as motion/alarm email notification and FTP archiving can be found at this section. Chapter 3-8-1 Motion/Alarm Setup There are motion detection zones allowed in the H.264 D1 video server or IP PTZ camera.

  • Page 44: Chapter 3-8-3 Motion Area

    For video encoder model, since there are two alarm outputs, a user can specify alarm output time. Chapter 3-8-3 Motion Area Once above information get set, please configure the motion area of the monitored environment. To configure motion area, perform mouse click on the video area. Chapter 3-8-4 Audio Detection For audio model, the IP camera has audio detector detecting acoustic level.

  • Page 45: Appendix

    81 (61.220.86.166:81), it eventually accesses the video server at 192.168.0.11. iPhone Access To use Live Cams Pro (Eggman Technologies Inc.) for LILIN IP cameras. Please use your iPhone and select AppStore for download Live Cams Pro application developed by Eggman Technologies Inc.
  • Page 46 Execute Live Cams Pro application. Please click on “Add Camera” button on your phone while using Live Cams Pro. Task bar gets prompted as below: Please selection one of the following drivers for cameras: Profile 1: H.264 HD or D1 IP camera. Android Access: Please use your Android phone and select Android Market for downloading IP Cam Viewer/IP Cam Viewer Lite application developed by Robert Chou.
  • Page 47 1. Name: Name of the IP camera or DVR’s camera 2. Category: Please select Merit LILIN. 3. Type: Select device type, Merit LILIN D1/Merit LILIN HD/Merit LILIN DVR. 4. IP Address: Please type IP address, for example http://59.124.49.36:60005 where 60005 is 5.

  • Page 48: Specification

    Android support System integration ONVIF & LILIN HTTP API CMX 3.6 / NAV 1.0 support Video display LILIN Universal ActiveX & LILIN Java Applet Embedded Linux 2.6.32 2-way audio supported G.711 SD Card Recording Support Micro SD/SDHC/SDXC card for circular recording (card is not included) Design and specifications are subject to change without notice.
  • Page 49 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-IPS520CSE...
