Summary of Contents for Lilin IPR414/418ESX3

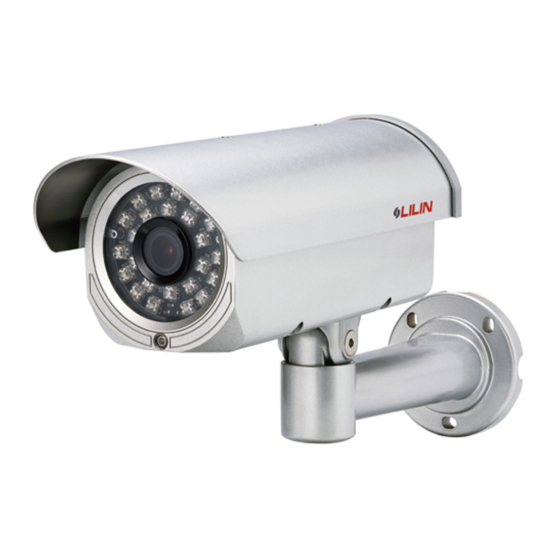

- Page 1 D/N Megapixel HD Vari-Focal Infrared IP Camera IPR414/418ESX3 / IPR414/418EMX 3.6/2.4 IPR434/438ESX 3.6/2.4 Instr uction Manual...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION： TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GRAPHIC SYMBOL EXPLANATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... - Page 3 CAUTION Do not drop or strike this equipment. Sensitive electronics inside are vulnerable to excessive shock. Do not install the equipment near any naked flames or heat sources. Excessive heat could damage this unit. Do not expose this unit to rain or excessive moisture, avoid smoke and dust.
-
Page 4: Executive Summary
Executive Summary IPR414/418ESX(720P) / IPR414/418EMX(1.3MP) / IPR434/ 438ESX(3MP) is an D/N Megapixel HD Vari-Focal Infrared IP Camera, built-in H.264 AVC(Advanced Video Coding) video compression. H.264 AVC video compression engine supports high definition video quality, 720P(1280x768)/ SXGA(1280x1024)/ QXGA(2048x1536) resolution, bandwidth efficiency with PPPoE and DDNS. -
Page 5: Part Description & Dimension
PART DESCRIPTION & DIMENSION 82.55 211.5 SUN SHIELD Unit: mm TOP COVER BOTTOM CHASSIS BRACKET PAN ADJUSTMENT SCREW TILT ADJUSTMENT SCREW WINDOW SENSOR CAP... -
Page 6: Installation
INSTALLATION 1. Take out the bracket from the box first. Put the power cable, RJ-45 network cable and video cable through the bracket and then fix it ot the wall (FIG.1 & FIG.2)。 FIG. 1 FIG. 2 2. Secondly, take out the camera body and open the top cover with screw driver 。... - Page 7 FIG. 4 FIG. 5 When using two-cord power cable, please connect them to "Live" and "Neutral". 4. Next, use the provided 1/4"-20UNC screws (silver-4pcs) to fix the camera body on the bracket with hexagon screw driver (FIG.6)。 FIG. 6 5. Loosen the pan and tilt adjustment screw on the bracket to turn the camera body to the desired angle and then tighten the screws (FIG.7)。...
- Page 8 6. First, adjust the lens on focus and zoom to form the optimal video image after that tighten the screws. Adjust the IRIS level VR to form the optimal image brightness (FIG.8). F O C U S o r Z O O M Z O O M o r F O C U S I R I S L E V E L F I G .
-
Page 9: System Overview
SYSTEM OVERVIEW Top View IPR414/418ESX IPR414/418EMX AUDIO OUT AUDIO IN +5V OUT IPR434/438ESX Input/Output Device Component Description Alarm In/Out & Audio In/Out Video Out Jack Connector Load Default Button SD Card Connector RJ-45 Jack... - Page 10 PRODUCTION COMPONENTS 1. D/N Megapixel HD Vari-Focal 2. Instruction Manual Infrared IP Camera H.264 HD IP Cameras IPD552EX2.2/4.2 N/P INSTRUCTION MANUAL D/N Megapixel HD Vandal Resistant Dome IR IP Camera IPR312SX3 / IPR31EMX3 / IPR320ESX3.6 Instr uction Manual 3. CD Software Pack 4.
-
Page 11: Emergency Factory Default
(2). Use with PoE of the network switch connected to the network. LAN / Internet PoE+(30W) Switch D/N Megapixel HD Vari-Focal IR IP Camera (3). Use PoE power injector and the network switch connected to the network. LAN / Internet Non-PoE Switch PoE+(30W) Power Injector... -
Page 12: Specifications
SPECIFICATIONS IPR414/418ESX3 D/N 720P HD VARI-FOCAL INFRARED IP CAMERA Model No. IPR414ESX3 IPR418ESX3 Focal Length 3 ~ 9mm Iris F1.2 ° ° 62.3 ~ 21.2 Lens ° ° Angle of view 45.8 ~ 15.9 ° ° 79.7 ~ 26.5 Pick Up Element 1/4"... - Page 13 Android support Support System Integration ONVIF Free CMX HD3.2 support Video Display LILIN Universal ActiveX Embedded Linux 2.4.19 Two-way audio G.711/ PCM SD Card recording Support SD/SDHC card for circular recording(card is not included) Alarm Input / Output Digital 1 input(TTL, +3~5V) / 1 Output(N.O.)
- Page 14 IPR414/418EMX 3.6/2.4 D/N MOS 1.3MP HD VARI-FOCAL INFRARED IP CAMERA Model No. IPR414EMX3.6 IPR418EMX3.6 IPR414EMX2.4 IPR418EMX2.4 3.3 ~ 12mm 9 ~ 22mm Focal Length F1.4 F1.4 Iris ° ° ° ° Lens 79.3 ~ 29.8 29.5 ~ 12.4 ° ° °...
- Page 15 Android support Support System Integration ONVIF Free CMX HD3.2 support Video Display LILIN Universal ActiveX Embedded ulTRON 4.0 One-way audio G.726 Alarm Input / Output Digital 1 input(TTL, +3~5V) / 1 Output(N.O.) Design and specification are subject to change without notice.
- Page 16 IPR434/438ESX 3.6/2.4 D/N 3MP HD VARI-FOCAL INFRARED IP CAMERA Model No. IPR434ESX3.6 IPR438ESX3.6 IPR434ESX2.4 IPR438ESX2.4 Focal Length 3.3 ~ 12mm 9 ~ 22mm Iris F1.4 F1.4 Lens 79.3 ~ 29.8 29.5 ~ 12.4 Angle of view 59.4 ~ 22.4 22 ~ 9.3 99 ~ 37.3 36.9 ~ 15.5 Pick Up Element...
- Page 17 Android support Support System Integration ONVIF & LILIN HTTP API Free CMX HD3.6 support Video Display LILIN Universal ActiveX & LILIN Java Applet Embedded Linux 2.6.32 Two-way audio G.711 SD Card recording Support SD/SDHC card for circular recording(card is not included) Alarm Input / Output Digital 1 input(TTL, +3~5V) / 1 Output(N.O.)
- Page 18 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-IPR414CSE...
