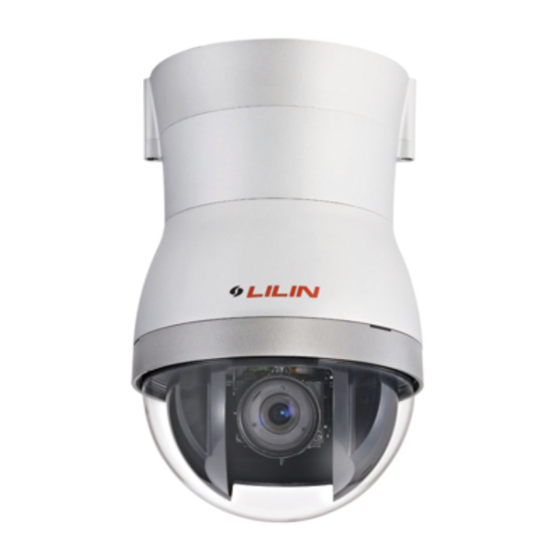

- Page 1 D/N WDR MP HD Fast Dome IP Camera IPS7224M/8M, IPS5204S/8S, IPS5184S/8S Instr uction Manual...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION： TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GRAPHIC SYMBOL EXPLANATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... - Page 3 PREFACE IPS7224M/7228M, IPS5204S/5208S, IPS5184S/5188S with High resolution of HD/Full HD offer significant enhancement and refinements to bring you the most innovative surveillance solutions. IPS7224M/7228M, IPS5204S/5208S, IPS5184S/5188S are the leading product in the industry offering the most advanced features such as 22X/20X/18X optical zoom lens, Digital Zoom, Wide Dynamic Range, Digital Noise Reduction, High Light Compensation and Digital Image Stabilizer.
- Page 4 FEATURES Auto Focus Lens Build-in 22X optical zoom lens with focal length 4.7~103.4mm [22X Model] Build-in 20X optical zoom lens with focal length 4.7~94mm [20X Model] Build-in 18X optical zoom lens with focal length 4.7~84.6mm [18X Model] 1280x1024(SXGA)[22X Model] / 1920x1080(1080P)[20X/18X Model] Horizontal TV lines Automatic Iris Control Privacy Mask 360°...
-
Page 5: Warnings And Cautions
WARNINGS & CAUTIONS Please read the manual before attempting installation or operation 1. Please be aware to the warnings and cautions notice. 2. Don't use any chemical detergent to clean the machine surface, use a damp cotton cloth only. Regularly clean the dome cover to assure proper focus ability. 3. -
Page 6: Structural Element
STRUCTURAL ELEMENT Dome Cover Video Out Jack Camera Case Alarm In/Out connector Bottom Chassis RJ45 Network Connector Power In Jack (AC100 ~ 240V) Reset Power In Jack (AC24V) - Page 7 Fast Dome Connection Jack and Cable Requirement AC100~240V Power Cable AC24V Power Cable Video Signal Cable To Monitor Alarm In/Out Cable To PIR CAT5 Network Cable 1. AC100 ~ 240V Power Cable 2. AC24V Power Cable Recommended Cable: Copper Wire (AWG) (0.22mm ) (0.33mm ) (0.52mm )
- Page 8 b. Prepare the individual conductors for clamping. After clamping the contacts, push them into the proper holes in the accessory connector of this camera until they snap in place. Contact CAUTIONS : CONNECT THIS TO 24V AC CLASS 2 POWER SUPPLY ONLY. 3.
-
Page 9: Installation
INSTALLATION Indoor Installation Structural Drawing Embedded Mounting Attached Mounting Micro SD/SDHC Socket... - Page 10 Embedded Mounting (False Ceiling) Step 1 Ceiling Preparation Drill a 3/32" (2.4mm) hole at the center of the Use a pencil and a compasses to mark a circle 6.7" chosen area. (170mm) in diameter and cut the circle. Step 2 The Ceiling Ring 204mm 93mm...
- Page 11 Step 4 Connection Alarm Out: (Gray) COM. (White) Alarm In: (Black) VIDEO OUT (Red) (Green) (Orange) (Blue) (Yellow) (Violet) Connect video signal Connect alarm cable Connect Network cable cable Step 5 Install Camera Body and Decoration Ring and Dome Cover Put camera body and Turn the camera body Tighten three black...
- Page 12 Attached Mounting (Fixed Ceiling) Step 1 Fix The Base Turn the dome cover Separate the dome Untighten the two Turn the camera cover counter clockwise cover from camera screws from base clockwise Separate the camera Set all of control cable on middle position and Attach base to ceiling body to the base through the hole of ceiling.
- Page 13 Step 3 Connection Alarm Out: NO/NC (Gray) COM. (White) Alarm In: (Black) VIDEO OUT (Red) (Green) (Orange) (Blue) (Yellow) (Violet) Connect video signal Connect alarm cable Connect Network cable cable Step 4 Install Dome Cover Put on dome cover to Turn dome cover camera body clockwise to tight...
- Page 14 Turn the camera cover Separate the camera Set all of control clockwise body to the base cables on the middle position, and install rubber cover on the cable outlet of base Step 2 Connection Alarm Out: NO/NC (Gray) COM. (White) Alarm In: (Black) VIDEO OUT...
- Page 15 Step 4 Attach the Camera Body and Base Attach camera body to Turn camera body Tighten the two screws base counter clockwise to to fix the camera body Notice: tight position position connector is correct or not. Step 5 Install Dome Cover Put on dome cover to Turn dome cover camera body...
- Page 16 Installation Micro SD/SDHC card, please follow instruction as below: 1. Push the cover of Micro SD/SDHC socket right for unlocking. 2. Pull the cover of the Micro SD/SDHC socket up. 3. Place Micro SD card on the socket. Make sure to face the card down. Micro 4.
-
Page 17: Specification
SPECIFICATION 2 2 X D / N W D R H D FA S T D O M E I P C A M E R A General Model IPS7224M IPS7228M Power Supply AC24V AC100~240V Power Consumption Image Pick-up Device Panasonic 1/3"... - Page 18 Mobile phone and PDA iPhone, iPad and Android support System integration ONVIF & LILIN HTTP API CMX HD3.6 support Video display LILIN Universal ActiveX & LILIN Java Applet Embedded Linux 2.6.32 Two-way Audio G.711 Design and specification are subject to change without notice.
- Page 19 2 0 X D / N W D R H D FA S T D O M E I P C A M E R A General Model IPS5204S IPS5208S Power Supply AC24V AC100~240V Power Consumption Image Pick-up Device 1/2.8" Type Exmor CMOS Sensor effective Pixels 2096(H) x 1561(V) = 3,269,760(pixel) Total number of pixel...
- Page 20 Android support System integration ONVIF & LILIN HTTP API CMX HD3.6 support Video display LILIN Universal ActiveX & LILIN Java Applet Embedded Linux 2.6.32 Two-way Audio G.711 SD Card Recording Support Micro SD/SDHC card for circular recording(card is not included)
- Page 21 1 8 X D / N W D R H D FA S T D O M E I P C A M E R A General Model IPS5184S IPS5188S Power Supply AC24V AC100~240V Power Consumption Image Pick-up Device 1/2.8" Type Exmor CMOS Sensor effective Pixels 2096(H) x 1561(V) = 3,269,760(pixel) Total number of pixel...
- Page 22 Android support System integration ONVIF & LILIN HTTP API CMX HD3.6 support Video display LILIN Universal ActiveX & LILIN Java Applet Embedded Linux 2.6.32 Two-way Audio G.711 SD Card Recording Support Micro SD/SDHC card for circular recording(card is not included) Design and specification are subject to change without notice.
- Page 23 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-IPS7228CSE...
