Page 1: Quick Installation Guide

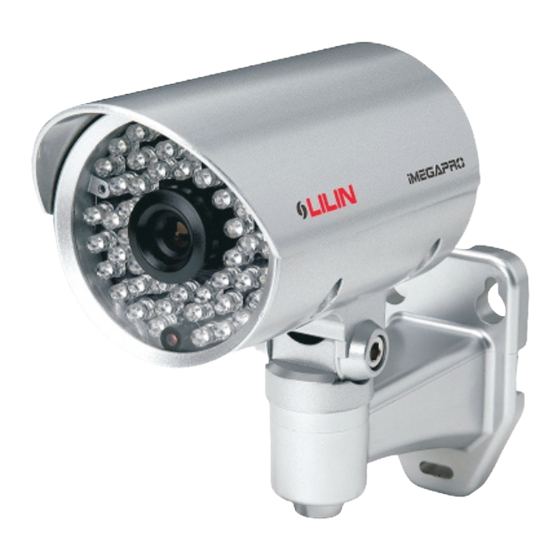

IPR722ES/LR7022E D/N 1080P HD Infrared IP Camera IPR732ES D/N 3MP HD Infrared IP Camera IPR722-IVS D/N 1080P HD IVS Infrared IP Camera SR7022E D/N 1080P60 HD Infrared IP Camera Quick Installation Guide... - Page 2 CAUTION Do not drop or strike this equipment Do not install the equipment near any naked flames or heat sources Do not expose this unit to rain, moisture, smoke or dust environment Do not cover the opening of the cabinet with cloth and plastic or to install this unit in poor ventilated places.
- Page 3 Product Overview Unit: mm - 1 -...
-
Page 4: Installation
Top Cover Bottom Chassis Bracket Pan Adjustment Screw Tilt Adjustment Screw Lens RJ-45 Network Port (Support PoE) DC12V Power Input Jack (DC12V±10%) Reset Key To restore the server to factory default setting. Network Indicator LEDs Green(LINK): Network connection. This LED lit. Orange(ACT): Data communications. - Page 5 2. Loosen the pan and tilt adjustment screws on the bracket to turn the camera body to the desired angle and then tighten the screws (FIG.3). System Architectures For connecting HD IP cameras to the network, please follow one of the system architectures: (1).
-
Page 6: Emergency Factory Default
(3). Use a PoE power injector and a network switch to connect to the network. Emergency Factory Default To restore factory default settings by hardware, please follow these steps: 1. Hold “RESET Key” for 10 seconds, then release. 2. After about 40 seconds, the network LED light should turn off, and the back on again. - Page 7 JPEG or H.264 Full HD video. When you login to the IP camera by Internet Explorer, the security warning dialog box will prompt the installation of the LILIN Universal ActiveX. Click Install to download it. Configuring IP Addresses by IPScan Software...
- Page 8 1. Run the IPScan software. 2. Click Refresh. All available devices should be listed in the device list. 3. Select your device from the list provided. 4. Change the IP address, subnet mask, gateway, or HTTP port for the IP camera. 5.
- Page 9 Internet Browser Settings & Application Required Make sure your Internet browser allows the signed ActiveX plug-in to work on your computer. Set “Download Signed ActiveX plug-in controls” to “Prompt” and “Run ActiveX control and plug-in” to “Enable”. You can set this option via Internet Explorer-> Tools-> Options->...
- Page 10 Login There are two levels of user authentication, including admin and guest, that can access the IP camera. Administrator is authorized to reset basic mode settings and see live video, while the guest is allowed to see only live video. The default usernames and passwords are as follows: Administrator Username...
