CAUTION: Use only new,
black iron or steel pipe. Inter-
nally tinned copper tubing may
be used in certain areas. Check
your local codes. Use pipe of
1/2" diameter or greater to allow
proper gas volume to heater. If
pipe is too small, undue loss of
pressure will occur.
CAUTION: Check your gas
line pressure before connect-
ing heater to gas line. Gas line
pressure must be no greater than
10.5" of water. If gas line pres-
sure is higher, heater regulator
damage could occur.
CAUTION: Avoid damage to
regulator. Hold gas regulator
with wrench when connecting
into gas piping and/or fittings.
14
INSTALLATION
Pressure
Regulator
Ground
Joint
Union
Tee Joint
Reducer
Bushing to
Test Gauge
1/8" NPT
Connection*
1/8" NPT
Plug Tap
Tee Joint
Sediment
Pipe Nipple
Trap
Gap
* Purchase the optional CSA design-certified equipment shutoff
valve from your dealer.
www.usaprocom.com
CAUTION: Use pipe joint
sealant that is resistant to gas.
Before installing heater, make sure you have
the items listed below:
• external regulator for propane/LP unit only
(supplied by installer)
• piping (check local codes)
• sealant (resistant to natural gas and pro-
pane/LP gas)
• equipment shutoff valve*
• test gauge connection*
• sediment trap
• tee joint
• pipe wrench
• flexible gas hose (check local codes)
* A CSA design-certified equipment shutoff
valve with 1/8" NPT tap is an acceptable al-
ternative to test gauge connection. Purchase
the optional CSA design certified equipment
shutoff valve from your dealer.

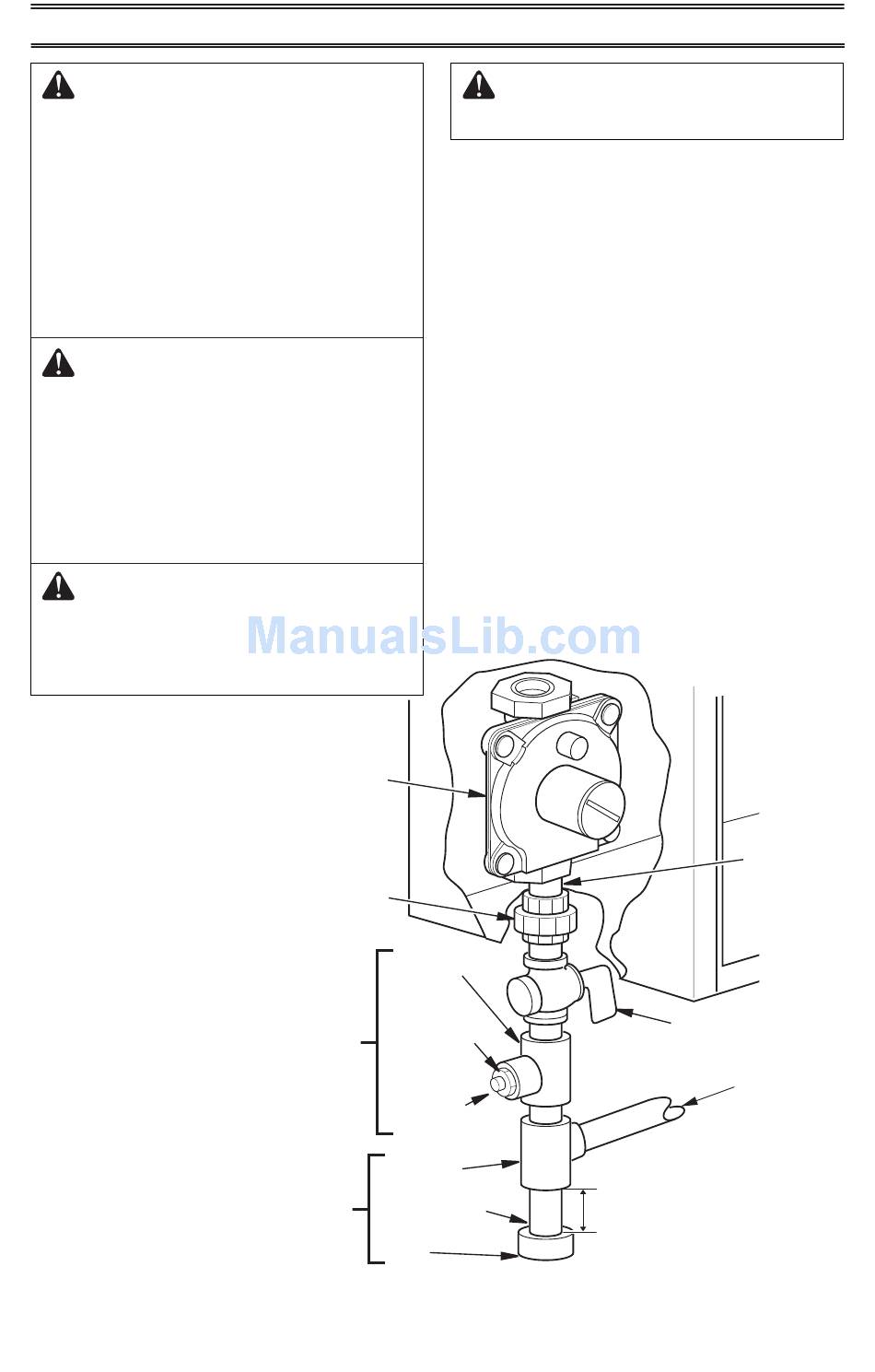

Figure 13 - Gas Connection
3/8" NPT
Pipe Nipple
Equipment
Shutoff Valve
From Gas Meter
(4" W.C. to
10.5" W.C.
Pressure)
3" Minimum
200044-01A
