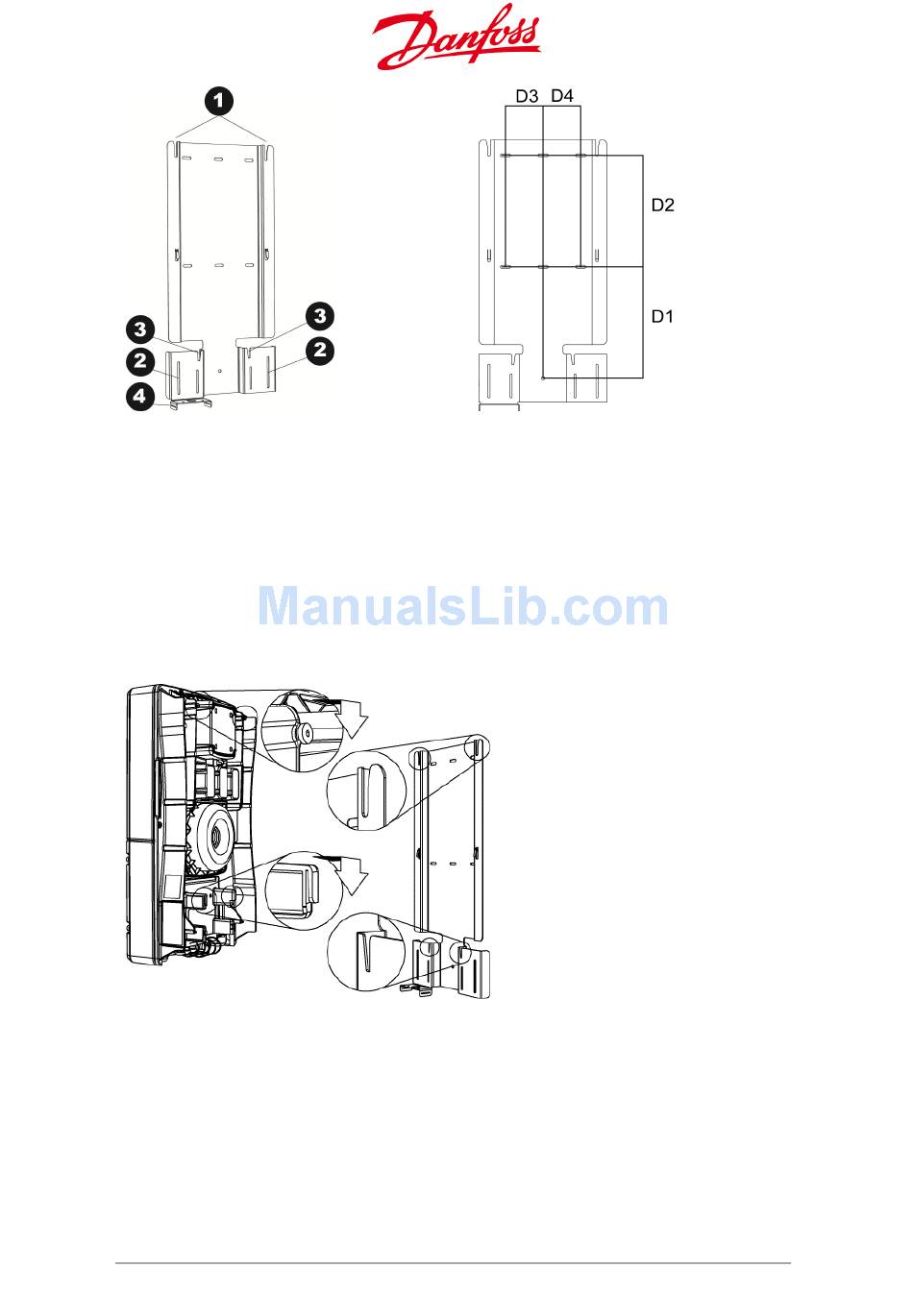

Figure 2.2.2: Inverter bracket
1. Carrier slots for the inverter
2. Steering slots for the inverter
3. Carrier slots for the Stringbox
4. Fixing clip
2.2.2. Inverter
Attach the inverter to the mounting bracket as follows:
Figure 2.2.4: Hooks on the back of the inverter
Installation Guide DLX seriesL00410622-01
Figure 2.2.3: Distances between fixing screws
D1. 232.5 mm
D2. 232.5 mm
D3. 75 mm
D4. 75 mm
• Locate the hooks for the carrier
slots on the upper back and the
hooks for the steering slots on the
lower back of the inverter.
•
Use the locating pins on the
Stringbox.
