Summary of Contents for ClearWater Lights BMW K1600GT

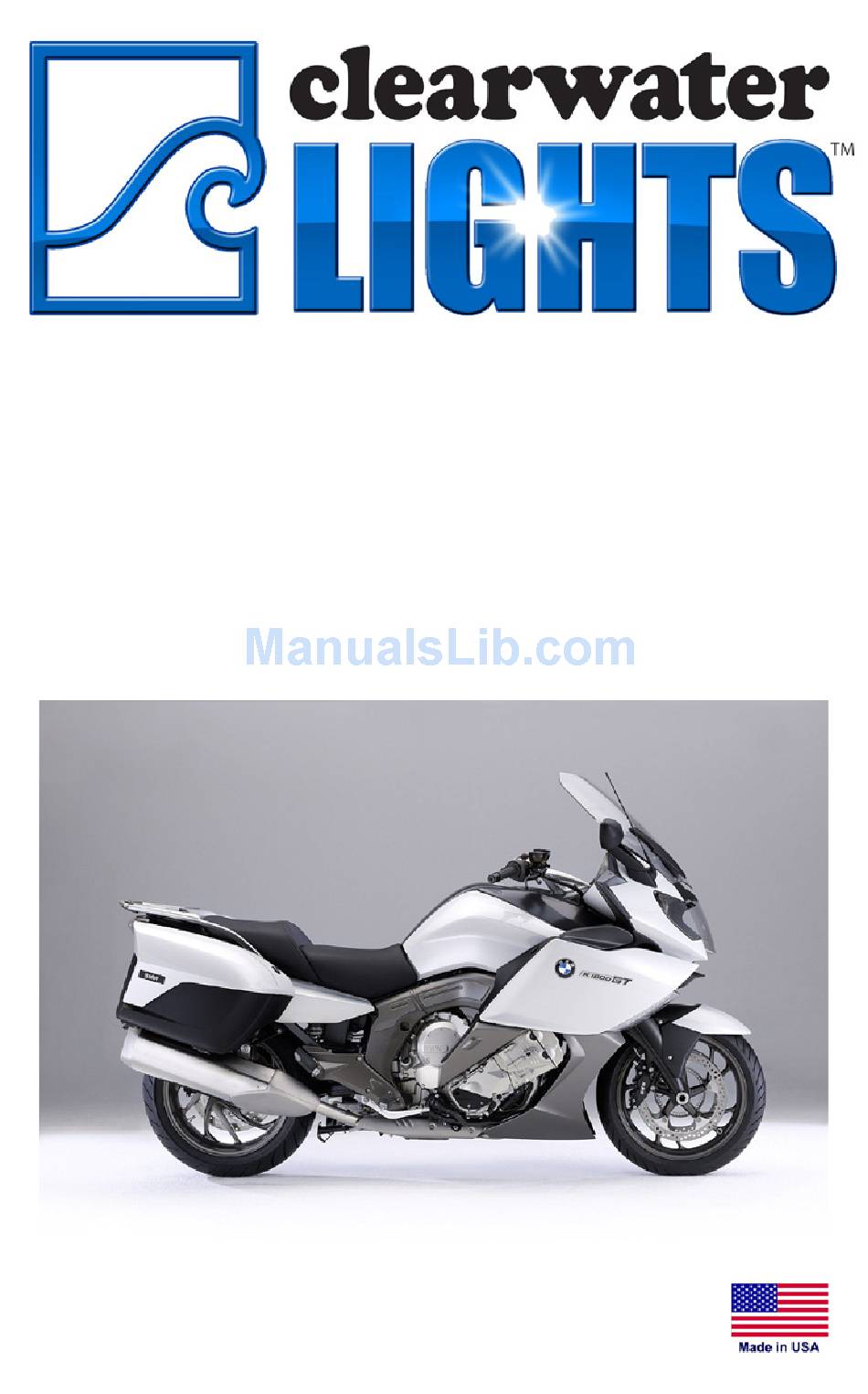

- Page 1 Installation Manual BMW K1600GT Glenda LED Light Kit Dimmable...
- Page 2 (916) 852-7029. Please take the time to review the included instructions. Installation of the new Clearwater Krista Lights is straightforward. But, be sure to follow some of the suggestions to keep the installation safe and reliable.
- Page 3 Step 2: Disassembly Windshield: Remove the 4 bolts holding on the windshield. Gas Tank Shroud: In order to remove the gas tank shroud plastics you must flip the plastic back as shown to get to the bolts. Follow images continued on the next page.
- Page 4 Step 2: Disassembly Gas tank shroud removal continued. Your bike should look like this after removing the gas tank shroud plastics. Page 4...
- Page 5 Step 2: Disassembly Dash Board: Remove the 2 bolts holding the speaker covers. In order to get the shroud above the navigation off, you must remove the windshield mount. To do this remove the bolts and clips as shown. This allows you to remove the black plastic shroud above the speedometer and...
- Page 6 Step 2: Disassembly Speakers: Remove the 3 bolts holding the speakers in place and unplug the connector on the back. Page 6...
- Page 7 Step 3: Mounting The Lights Fender Mount Overview: (detailed diagrams on next page) • One side at a time, remove both fender bolts. Be sure to keep fender from hanging in a fashion that damages it. Use a wire tie or piece of wire to hold the fender until you are ready to install the new bolts.
- Page 8 Step 4: Mounting The Volume Control Knob Mounting The Volume Control Knob: (Bar Mount) • Mount the Volume Control Knob to handlebar by using supplied bracket and bolt to the existing controls. • Route wires from lights and volume control knob bracket to area under left side of forks.
-
Page 9: Step 5: Wiring (Overview)
Step 5: Wiring (Overview) the high beam is activated. • Find a good solid ground point for the black wire terminal ring. • Use a Posi-twist to connect the green wire from the volume control knob to the two green wires from the lights (3 wires). •... - Page 10 Step 5: Wiring 4/9/2012 Page 10...
- Page 11 Notes: Page 11...
- Page 12 Ride safe! Sincerely, Glenn and the team at Clearwater. The Clearwater Company | 2546 Mercantile Dr. Ste B | Rancho Cordova, CA 95742 Phone: (916) 852-7029 | Fax: (916) 852-9410 | www.clearwaterlights.com Version 6.0 | 5/29/12...
